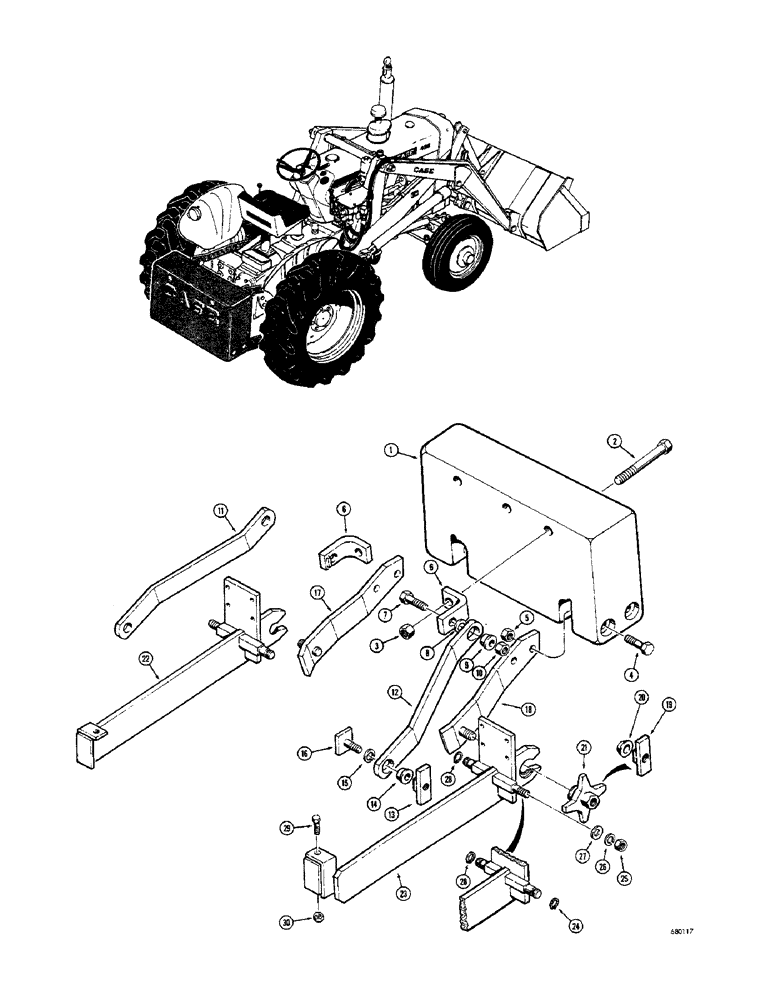

Запчасти Case 23 (012) - QUICK DETACHABLE COUNTERWEIGHT

1

D31204

BALANCER

COUNTERWEIGHT - rear, 1400 lbs.

1шт.

2

13-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

2шт.

3

230-41116

NUT,1"-8, GA

NUT - hex., lock (1" - 8 NC)

2шт.

4

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

5

230-41116

NUT,1"-8, GA

NUT - hex., lock (1" - 8 NC)

4шт.

6

D31530

BRACKET

- counterweight mounting, upper

2шт.

7

D30716

BOLT

- special

2шт.

8

D24516

WASHER

- special

2шт.

9

D30717

WASHER

- cone, 15 degrees

2шт.

10

25-1620

NUT,1 1/4"-7, G5, Hvy

- hex. (1-1/4" - 7 NC)

2шт.

11

D31725

SUPPORT ARM - upper, R.H.

1шт.

12

D31726

SUPPORT ARM - upper, L.H.

1шт.

13

D31496

SPECIAL NUT

NUT - wrench and hammer

1шт.

14

D30717

WASHER

- cone, 15 degrees

2шт.

15

D24516

WASHER

- special

2шт.

16

D32520

STUD

- at subframe

2шт.

17

D31528

SUPPORT

ARM - lower, at counterweight R.H.

1шт.

18

D31529

SUPPORT

ARM - lower, at counterweight L.H.

1шт.

19

D31495

BLOCK

NUT - wrench and hammer (Used with D31721 and D31722 support arms only)

2шт.

20

D30714

WASHER

- cone, 15 degrees (Used with D31495)

2шт.

21

D34027

NUT

STAR NUT - special (If used) Late production

2шт.

22

D31721

X

SUPPORT ARM - lower, at subframe (R.H.) Used before serial number 4103251 (Use D35943 support arm and D34027 nut for service)

1шт.

D35943

SUPPORT ARM - lower, at subframe (R.H.) Used on serial number 4103251 thru 4104526

1шт.

D37081

SUPPORT ARM - lower, at subframe (R.H.) Used on serial number 4104527 and after

1шт.

23

D31722

X

SUPPORT ARM - lower at subframe (R.H.) Used before serial number 4103251 (Use D35994 support arm and D34027 nut for service)

1шт.

D35944

SUPPORT ARM - lower, at subframe (L.H.) Serial number 4103251 thru 4104526

1шт.

D37082

SUPPORT ARM - lower at subframe (L.H.) Serial number 4104527 and after

1шт.

24

B18206

SNAP RING,#87, Ext

Ring, Snap, , used with D31721, D31722, D35943 and D35944 support arm #87, Ext

2шт.

25

25-1010

NUT,5/8"-11, G5

Used with D37081 and D37082 support arms 5/8"-11, G5

2шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

27

95-10

WASHER,5/8"

- plain () 5/8"

2шт.

28

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

2шт.

29

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

30

25-1012

NUT,3/4"-10, G5

Early production (If used) 3/4"-10, G5

2шт.

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC) Late production

2шт.
