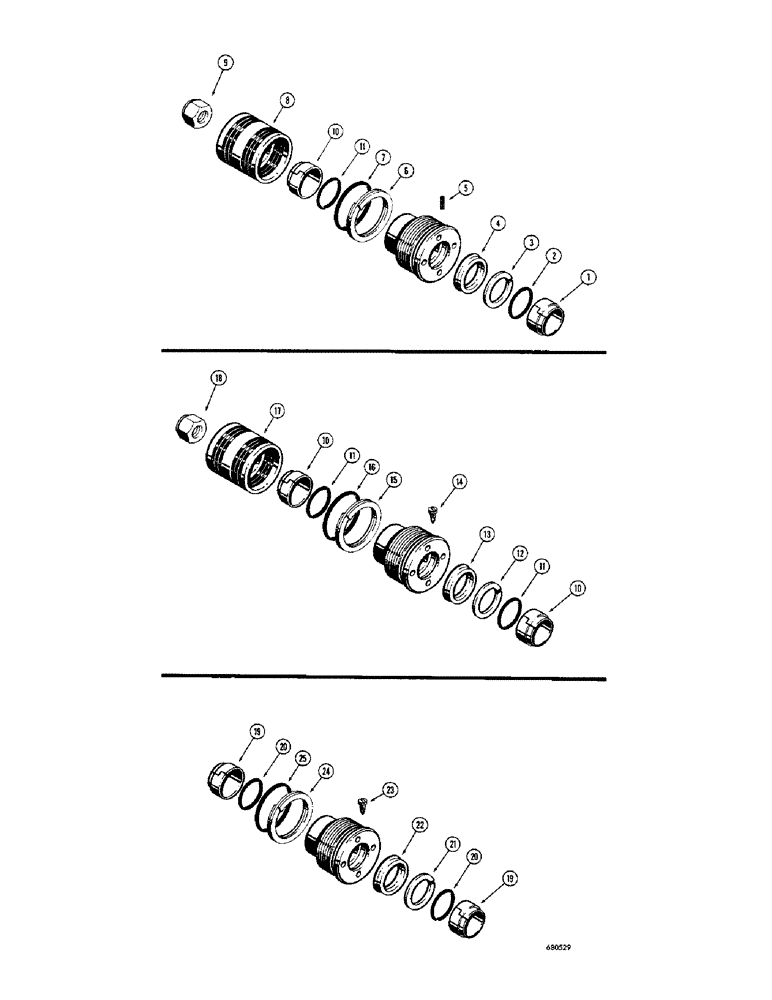

Запчасти Case 23 (106) - CYL. PACKING KITS, USED ON D33421 & D36571 LOADER DUMP & D28331 BACKHOE BUCKET CYL. D30129 CYL.

D30129

X

KIT - complete cylinder packing, gland type (When stock is exhausted, use D42870 kit for service)

1шт.

1

D27706

WIPER SEAL

WIPER - piston rod

1шт.

2

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper

1шт.

3

D28498

RING

- backup, piston rod seal

1шт.

4

D28494

SEAL

PACKING - piston rod (When stock is exhausted, use D36969 seal for service)

1шт.

5

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , use 187-1031 self-tapping screw for service 3/16" x 5/8", Slotted

1шт.

6

D28049

RING

- backup, gland seal

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring, gland seal

1шт.

8

D28374

PACKAGE,SERVICE

PACKING - piston

1шт.

9

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, 3/4"-16, GB

1шт.

D37353

X

KIT - complete cylinder packing, gland type (When stock is exhausted, use D42870 kit for service)

1шт.

10

D27706

WIPER SEAL

WIPER - piston rod, D37353 cylinder packing kit

2шт.

11

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper, D37353 cylinder packing kit

2шт.

12

D28498

RING

- backup, piston rod seal, D37353 cylinder packing kit

1шт.

13

D36969

CUP

SEAL - piston rod, D37353 cylinder packing kit

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D37353 cylinder packing kit

1шт.

15

D28049

RING

- backup, gland seal, D37353 cylinder packing kit

1шт.

16

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL- "O" ring, gland seal, D37353 cylinder packing kit

1шт.

17

D28374

PACKAGE,SERVICE

PACKING - piston, D37353 cylinder packing kit

1шт.

18

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, , D37353 cylinder packing kit 3/4"-16, GB

1шт.

D42870

GASKET KIT

KIT - gland packing

1шт.

19

D27706

WIPER SEAL

WIPER - piston rod, D42870 gland packing kit

2шт.

20

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper, D42870 gland packing kit

2шт.

21

D28498

RING

- backup, piston rod seal, D42870 gland packing kit

1шт.

22

D36869

SEAL - piston rod, D42870 gland packing kit

1шт.

23

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42870 gland packing kit

1шт.

24

D28049

RING

- backup, gland seal, D42870 packing kit

1шт.

25

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring, gland seal, D42870 packing kit

1шт.
