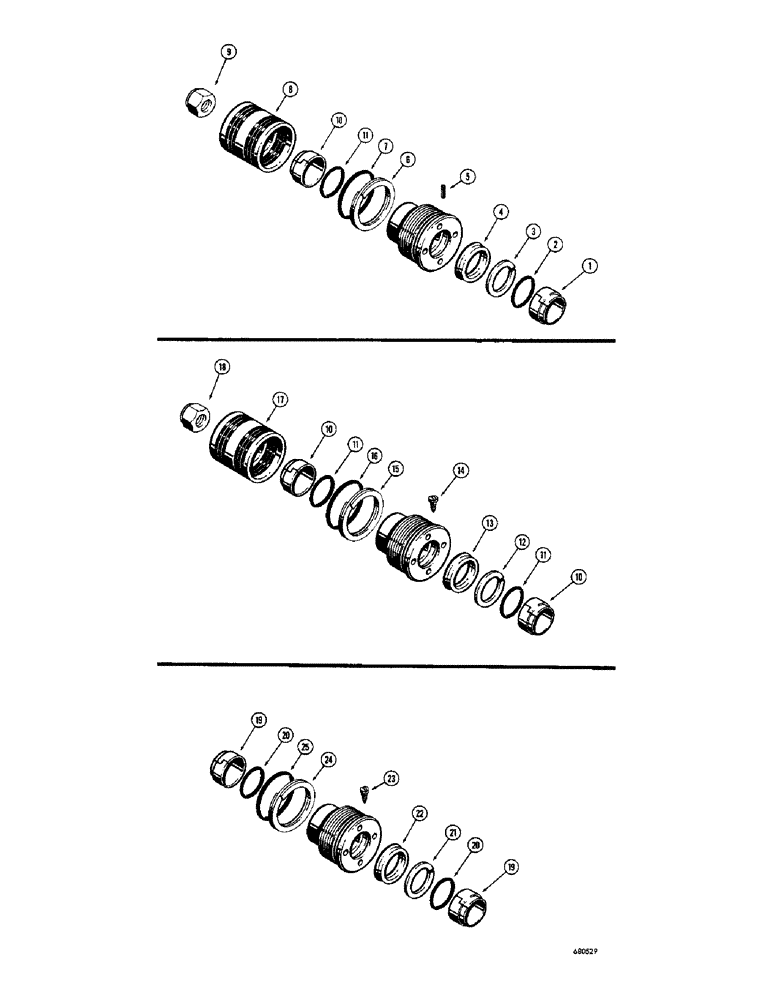

Запчасти Case 23 (102) - CYLINDER PACKING KITS, USED ON D28279 BACKHOE STABILIZER CYLINDER D30126 CYLINDER PACKING KIT

D30126

X

KIT - complete cylinder packing, gland type (When stock is exhausted, use D42867 kit for service)

1шт.

1

D27705

WIPER

- piston rod

2шт.

2

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

3

D28497

RING

- backup, piston rod seal

1шт.

4

D28493

X

PACKING - piston rod (When stock is exhausted, use D36968 seal for service)

1шт.

5

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , use 187-1031 self-tapping screw for service 3/16" x 5/8", Slotted

1шт.

6

D27856

RING

- backup, gland seal

1шт.

7

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland seal

1шт.

8

D28373

PACKING

- piston

1шт.

9

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, 3/4"-16, GB

1шт.

D37350

X

KIT - complete cylinder packing, gland type (When stock is exhausted, use D42867 kit fo rservice)

1шт.

10

D27705

WIPER

- piston rod, D37350 cylinder packing kit

2шт.

11

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, wiper, D37350 cylinder packing kit

2шт.

12

D28497

RING

- backup, piston rod seal, D37350 cylinder packing kit

1шт.

13

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod, D37350 cylinder packing kit

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D37350 cylinder packing kit

1шт.

15

D27856

RING

- backup, gland seal, D37350 cylinder packing kit

1шт.

16

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland seal, D37350 cylinder packing kit

1шт.

17

D28373

PACKING

- piston, D37350 cylinder packing kit

1шт.

18

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, , D37350 cylinder packing kit 3/4"-16, GB

1шт.

D42867

GLAND

KIT - gland packing

1шт.

19

D27705

WIPER

- piston rod, D42867 gland packing kit

2шт.

20

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, wiper, D42867 gland packing kit

2шт.

21

D28497

RING

- backup, piston rod, D42867 gland packing kit

1шт.

22

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod, D42867 gland packing kit

1шт.

23

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42867 gland packing kit

1шт.

24

D27856

RING

- backup, gland seal, D42867 gland packing kit

1шт.

25

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland seal, D42867 gland packing kit

1шт.
