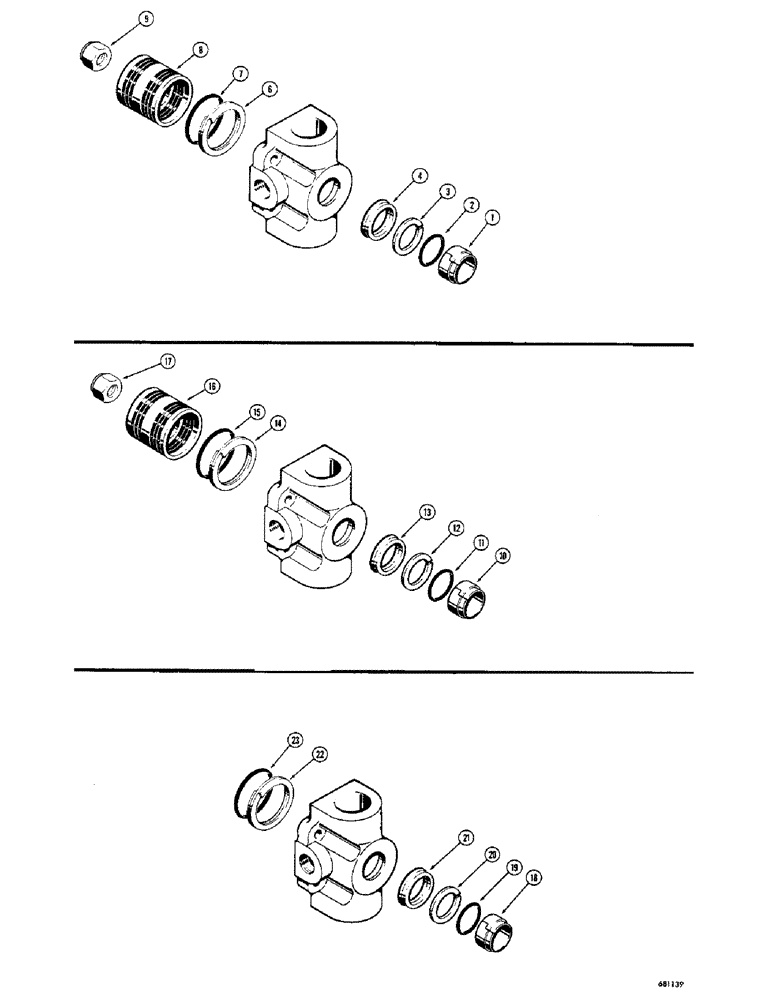

Запчасти Case 23 (100) - CYLINDER PACKING KITS, USED ON D28325 AND D28326 BACKHOE SWING CYLINDERS D30127 CYLINDER PACKING KIT

D30127

X

KIT - complete cylinder packing, gland type (When stock is exhausted, use D42868 kit for service)

1шт.

1

D27705

WIPER

- piston rod

1шт.

2

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, wiper

1шт.

3

D28497

RING

- backup, piston rod seal

1шт.

4

D28493

X

PACKING - piston rod (When stock is exhausted, use D36968 for service)

1шт.

5

RESERVED

1шт.

6

D24985

RING

- backup, gland seal

1шт.

7

86982912

O-RING

SEAL - "O" ring, gland seal

1шт.

8

D28373

PACKING

- piston

1шт.

9

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, 3/4"-16, GB

1шт.

D37351

X

KIT - complete cylinder packing, gland type (When stock is exhausted, use D42868 for service)

1шт.

10

D27705

WIPER

- piston rod, D37351 cylinder packing kit

1шт.

11

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, wiper, D37351 cylinder packing kit

1шт.

12

D28497

RING

- backup, piston rod seal, D37351 cylinder packing kit

1шт.

13

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod, D37351 cylinder packing kit

1шт.

14

D24985

RING

- backup, gland seal, D37351 cylinder packing kit

1шт.

15

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring, gland seal, D37351 cylinder packing kit

1шт.

16

D28373

PACKING

- piston, D37351 cylinder packing kit

1шт.

17

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, , D37351 cylinder packing kit 3/4"-16, GB

1шт.

D42868

GLAND

KIT - gland packing

1шт.

18

D27705

WIPER

- piston rod, D42868 gland packing kit

1шт.

19

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, wiper, D42868 gland packing kit

1шт.

20

D28497

RING

- backup, piston rod seal, D42868 gland packing kit

1шт.

21

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod, D42868 gland packing kit

1шт.

22

D24985

RING

- bakcup, gland seal, D42868 gland packing kit

1шт.

23

86982912

O-RING

SEAL - "O" ring, gland seal, D42868 gland packing kit

1шт.
