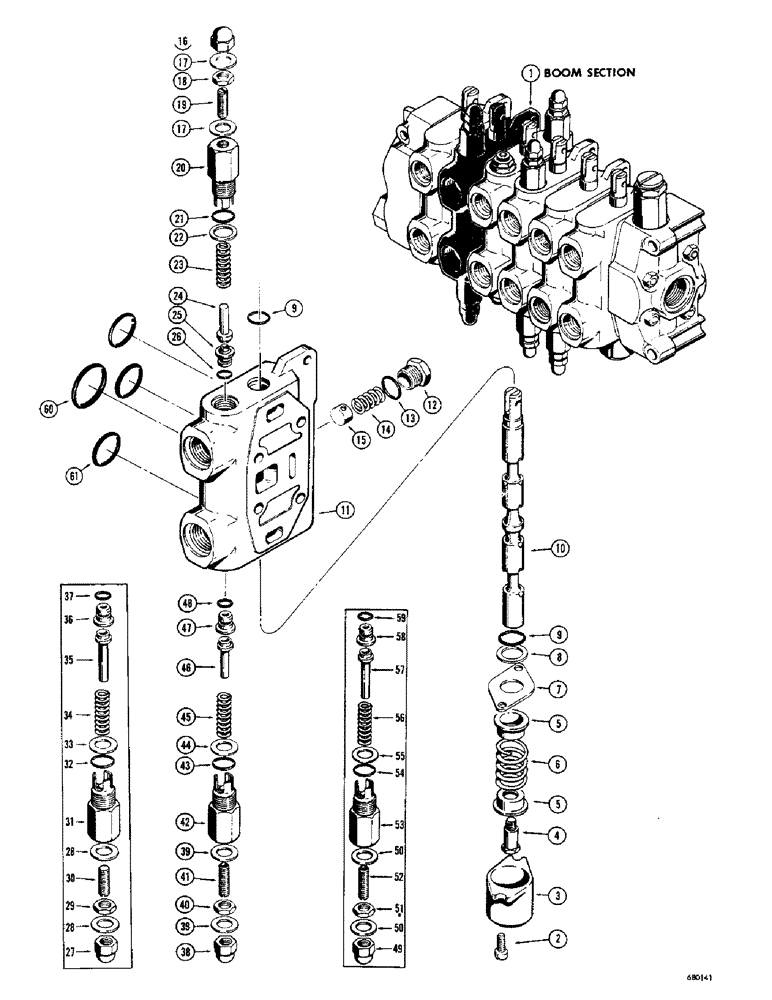

Запчасти Case 23 (090) - D34209 BACKHOE BOOM SECTION

1

D34209

BOOM SECTION - backhoe control valve (When stock is exhausted use parts list Figure 094 for service)

1шт.

2

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, slotted fillister head (1/4" - 20 NC x 3/4")

2шт.

3

D26823

CAP

- boom section

1шт.

4

D26833

BOLT

- stripper, special

1шт.

5

D26831

GUIDE

- spring

2шт.

6

D26832

SPRING

- centering (When stock is exhausted use D40201)

1шт.

D40201

SPRING

- centering (Service replacement)

1шт.

7

D26830

PLATE

- retaining

1шт.

8

D26829

RING

- backup

1шт.

9

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring (Used before backhoe serial number 4105613) Use D36830

2шт.

D36830

RING

SEAL - quad ring (Backhoe serial number 415613 and after)

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - boom section

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - boom section

1шт.

12

D30696

CYLINDER END CAP

CAP - check valve

1шт.

13

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

14

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

15

D26824

SPOOL

POPET - check valve

1шт.

D32556

CARTRIDGE

- secondary relief, upper (Not preset) Must be set to correct pressure when installed on valve (When stock is exhausted use D39454 for service)

1шт.

16

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

17

23150

WASHER

GASKET - copper

2шт.

18

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

19

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set (3/8" - 24 NF x 1")

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

21

D26872

O-RING

SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.

1шт.

22

D31450

WASHER

- gasket

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

D40191

X

KIT - seat and poppet

1шт.

24

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

26

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

D39454

CARTRIDGE

- secondary relief, upper (Not preset) Must be set to correct pressure when installed on valve (Service replacement)

1шт.

27

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

28

23150

WASHER

GASKET - copper

2шт.

29

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

30

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

32

D26872

O-RING

SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.

1шт.

33

D31450

WASHER

- gasket

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

D40189

PACKAGE

KIT - seat and poppet

1шт.

35

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

36

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

37

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

D32557

CARTRIDGE

- secondary relief, lower (Not preset) Must be set to correct pressure when installed on valve (When stock is exhausted use D42866 for service)

1шт.

38

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" x 24 NF)

1шт.

39

23150

WASHER

GASKET - copper

2шт.

40

25-126

SLOTTED NUT,3/8"-16, G5

NUT - hex., jam (3/8" - 24 NF)

1шт.

41

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set, 3/8" - 24 NF x 1"

1шт.

42

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

43

D26872

O-RING

SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.

1шт.

44

D31450

WASHER

- gasket

1шт.

45

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

46

D39188

PACKAGE

KIT - seat and poppet

1шт.

46

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

47

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

48

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

D42866

VALVE

CARTRIDGE - secondary relief, lower (Not preset) Must be set to correct pressure when installed on valve (Service replacement)

1шт.

49

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

50

23150

WASHER

GASKET - copper

2шт.

51

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

52

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special

1шт.

53

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

54

D26872

O-RING

SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.

1шт.

55

D31450

WASHER

- gasket

1шт.

D42865

VALVE POPPET

KIT - seat and poppet

1шт.

56

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

57

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

58

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

59

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

60

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D.

1шт.

61

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "O" ring, 1-5/16" I.D. x 1-1/2" O.D.

3шт.
