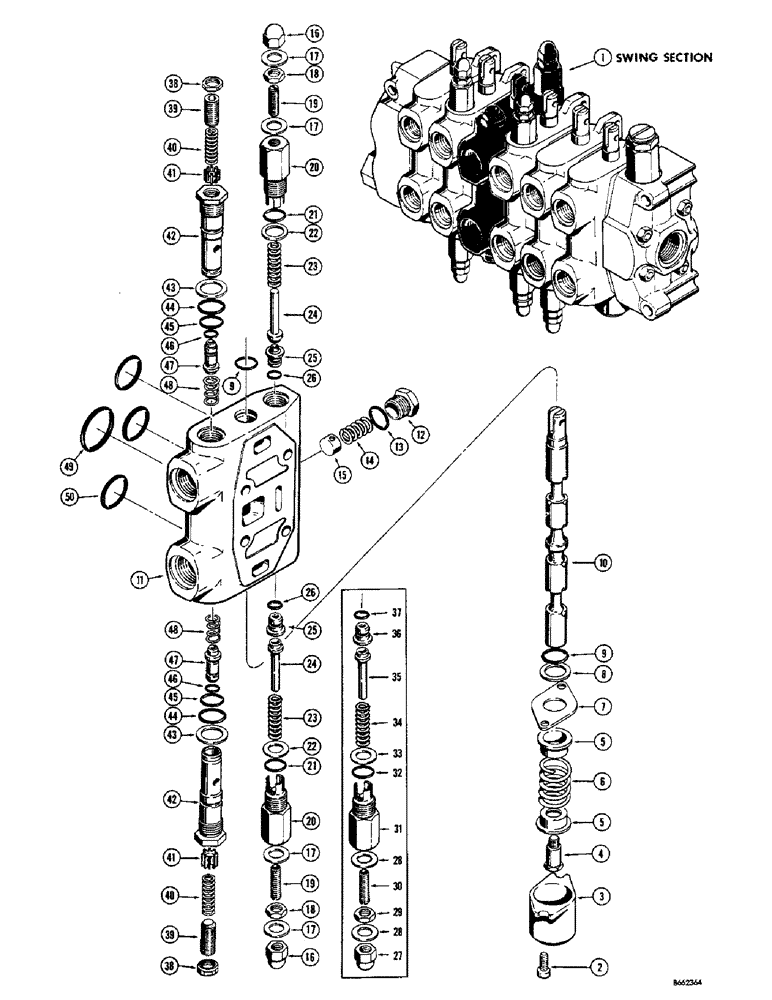

Запчасти Case 23 (086) - D34208 BACKHOE SWING SECTION

1

D34208

SWING SECTION - backhoe control valve

1шт.

2

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, slotted fillister head (1/4" - 20 NC x 3/4")

2шт.

3

D26823

CAP

- swing section

1шт.

4

D26833

BOLT

- stripper, special

1шт.

5

D26831

GUIDE

- spring

1шт.

6

D26832

SPRING

- centering, early production (When stock is exhausted use D40201)

1шт.

D40201

SPRING

- centering, late production

1шт.

7

D26830

PLATE

- retaining

1шт.

8

D26829

RING

- backup

1шт.

9

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring (Used before backhoe serial number 4105613) Use D36830

2шт.

D36830

RING

SEAL - quad ring (Backhoe serial number 4105613 and after)

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - swing section

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - swing section

1шт.

12

D30696

CYLINDER END CAP

CAP - check valve

1шт.

13

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

14

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

15

D26824

SPOOL

POPPET - check valve

1шт.

D32557

CARTRIDGE

- secondary relief (Not preset) Must be set to correct pressure when installed on valve (When stock is exhausted, use D42866 for service)

2шт.

16

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

17

23150

WASHER

GASKET - copper

2шт.

18

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

19

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set, 3/8" - 24 NF x 1"

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

21

D26872

O-RING

SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.

1шт.

22

D31450

WASHER

- gasket

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

D39188

PACKAGE

KIT - seat and poppet

1шт.

24

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

26

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

D42866

VALVE

CARTRIDGE - secondary relief (Not preset) Must be set to correct pressure when installed on valve (Service replacement)

2шт.

27

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

28

23150

WASHER

GASKET - copper

2шт.

29

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF0

1шт.

30

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

32

D26872

O-RING

SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.

1шт.

33

D31450

WASHER

- gasket

1шт.

D42865

VALVE POPPET

KIT - seat and poppet

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

35

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

36

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

37

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

D26838

FILTER

CARTRIDGE - relief crossover (Color code brown) 1300 P.S.I. preset at factory

2шт.

38

D26879

LOCK NUT

NUT - lock, special

1шт.

39

D26878

X

SCREW - adjusting

1шт.

40

NSS

NOT SOLD SEPARAT

SPRING - cartridge

1шт.

41

NSS

NOT SOLD SEPARAT

SEAT - floating

1шт.

42

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

43

D26870

GASKET

WASHER - gasket

1шт.

44

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

SEAL - "O" ring, 9/16" I.D. x 11/16" O.D.

1шт.

45

D31412

O-RING

SEAL - "O" ring, 7/16" I.D. x 9/16" O.D.

1шт.

46

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

47

NSS

NOT SOLD SEPARAT

POPPET - cartridge

1шт.

48

D43418

VALVE SPRING

SPRING - poppet

1шт.

49

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D.

1шт.

50

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "O" ring, 1-5/16" I.D. x 1-1/2" O.D.

3шт.
