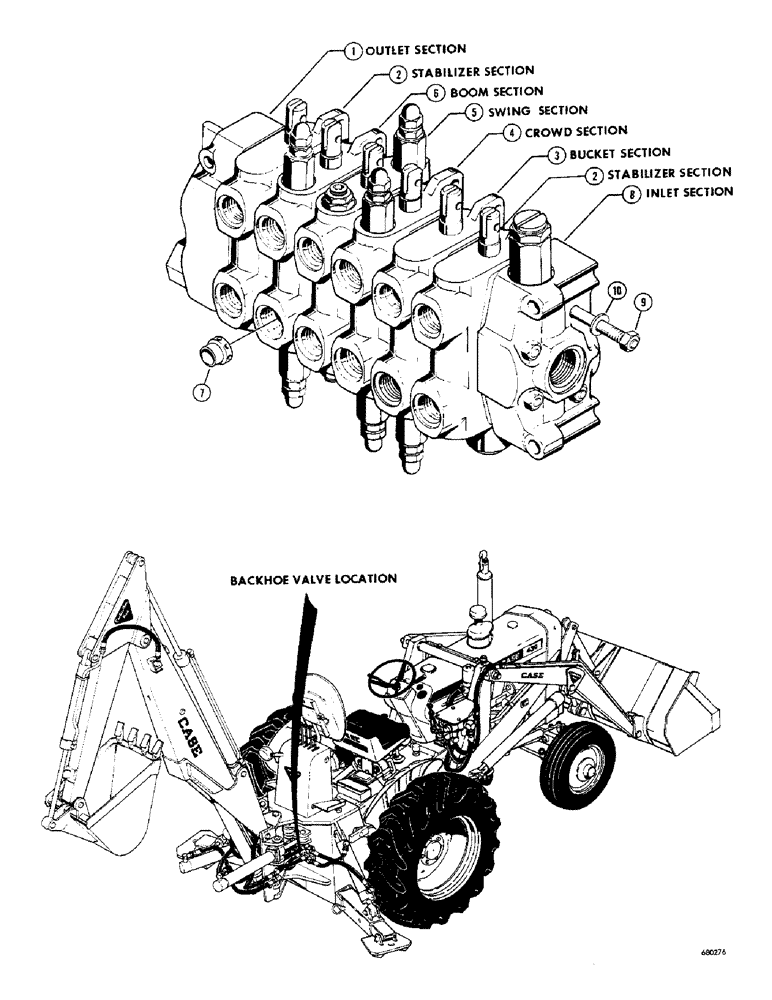

Запчасти Case 23 (076) - D33778 BACKHOE CONTROL VALVE

D33778

VALVE - hydraulic, backhoe control

1шт.

1

D34210

OUTLET SECTION - backhoe control valve (Parts list Figure 078)

1шт.

2

D34206

STABILIZER SECTION - backhoe control valve (Parts list Figure 080)

1шт.

3

D34207

VALVE BLOCK

BUCKET SECTION - backhoe control valve (Parts list Figure 082)

1шт.

4

D34207

VALVE BLOCK

CROWD SECTION - backhoe control valve (Early production) Use D36813 for service (Parts list Figure 082)

1шт.

D36813

VALVE BLOCK

CROWD SECTION - backhoe control valve (Late production) Parts list Figure 084

1шт.

5

D34208

SWING SECTION - backhoe control valve (Parts list Figure 086)

1шт.

6

D34209

BOOM SECTION - backhoe control valve (When stock is exhausted use D40814) Parts list Figure 090

1шт.

D40814

BOOM SECTION - backhoe control valve (Service replacement) Parts list Figure 094

1шт.

7

D34243

X

RESTRICTOR - boom drop, boom section only

1шт.

8

D31415

INLET SECTION - backhoe control valve (Parts list Figure 078)

1шт.

9

D26846

STUD

ASSEMBLY - backhoe control valve

4шт.

10

195-25

WASHER,3/8"

- plain (13/32")

4шт.
