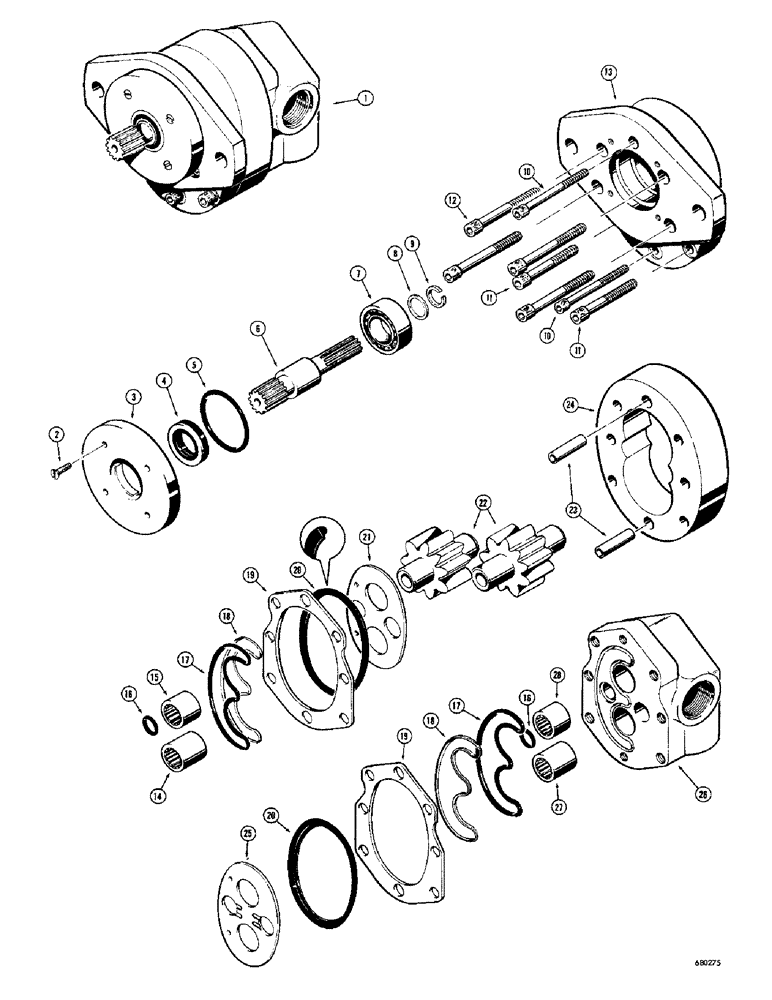

Запчасти Case 23 (070) - D33703 LOADER BACKHOE PUMP
№
Артикул
Название
Примечание
Количество
1
D33703
PUMP - hydraulic, loader backhoe models only (17.5 G.P.M. at 1750 R.P.M. at 1800 P.S.I.) Webster no. 4JDS1-3L (When stock is exhausted use D39525, ref. no. 1 page 72)
1шт.
2
171-212
SCREW,Sl Flat Hd, #10 - 24 x 5/8"
- machine, flat head (#10 - 24 NC x 5/8")
4шт.
D33885
PLATE
ASSEMBLY - pilot
1шт.
3
NSS
NOT SOLD SEPARAT
PLATE - pilot
1шт.
4
D24047
SEAL
- oil, shaft
1шт.
5
D28965
O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro
SEAL - "O" ring, pilot plate
1шт.
6
D34216
SHAFT - drive
1шт.
7
A31187
BEARING, BALL,0.7874" ID x 1.8504" OD x 0.5512"
BEARING - ball
1шт.
9
14217
RING
- retaining
1шт.
10
61-448
HEX SOC SCREW,1/4"-20 x 3"
SCREW - hex. socket head, 1/4" - 20 NC x 3"
2шт.
11
61-540
SCREW - hex. socket head, 5/16" - 18 NC x 2-1/2"
2шт.
D34218
COVER ASSEMBLY - pump, shaft end
1шт.
13
NSS
NOT SOLD SEPARAT
COVER - pump
1шт.
14
A28244
NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W
BEARING - needle, driven gear
1шт.
15
G10642
NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W
BEARING - needle, drive gear
1шт.
16
D28964
O-RING
SEAL - "O" ring, pocket
2шт.
17
D28727
SEAL - retaining plate
2шт.
18
NLS
NO LONGER SERVICED
- backup, plastic
2шт.
19
D28725
PLATE - retaining, wear plate
2шт.
20
D28726
SEAL - retaining plate
2шт.
21
D28729
WEAR PLATE
PLATE - wear, shaft end
1шт.
22
D28719
GEAR SET - drive and driven
1шт.
23
D28723
PIN - dowel
2шт.
24
D34221
HOUSING - gear
1шт.
25
D28728
WEAR PLATE
PLATE - wear, port end
1шт.
D34220
COVER ASSEMBLY - pump, port end
1шт.
26
NSS
NOT SOLD SEPARAT
COVER - pump
1шт.
27
A28244
NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W
BEARING - needle, driven gear
1шт.
28
G10642
NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W
BEARING - needle, drive gear
1шт.
Выбрано товаров: 31
