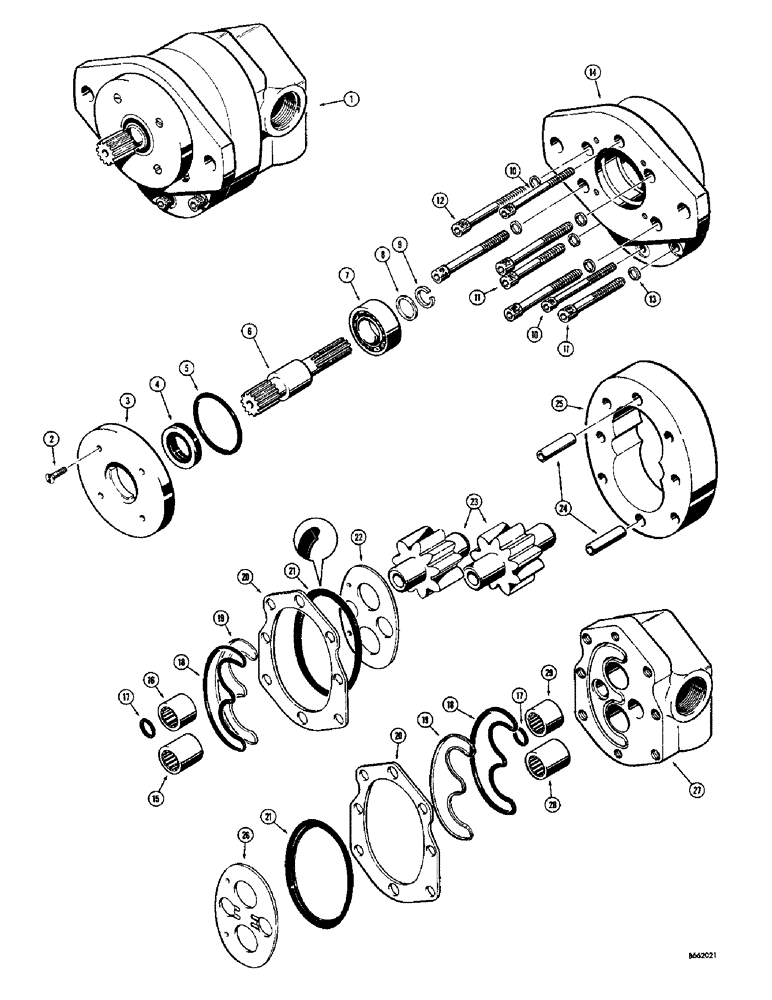

Запчасти Case 23 (068) - D33702 LOADER PUMP

1

D33702

X

PUMP - hydraulic, loader models only (13.5 G.P.M. at 1750 R.P.M. at 1750 P.S.I.) Webster #3JDS1-1L (When stock is exhausted, use D41914)

1шт.

2

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

- flat head machine (#10 - 24 NC x 5/8")

4шт.

D33885

PLATE

ASSEMBLY - pilot

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - pilot

1шт.

4

D24047

SEAL

- oil, shaft

1шт.

5

D28965

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

SEAL - "O" ring, pilot plate

1шт.

6

D34216

SHAFT - drive

1шт.

7

A31187

BEARING, BALL,0.7874" ID x 1.8504" OD x 0.5512"

BEARING - ball

1шт.

8

14218

WASHER

WASHER - bearing

1шт.

9

14217

RING

- retaining

1шт.

10

61-448

HEX SOC SCREW,1/4"-20 x 3"

SHCS - 1/4" - 20 NC x 3"

2шт.

11

61-540

SHCS - 5/16" - 18 NC x 2-1/2"

2шт.

12

61-548

HEX SOC SCREW,5/16"-18 x 3"

SHCS - 5/16" - 18 NC x 3"

4шт.

13

92-5

LOCK WASHER,5/16"

6шт.

D34218

COVER ASSEMBLY - pump, shaft end

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - pump, shaft end

1шт.

15

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, driven gear

1шт.

16

G10642

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W

BEARING - needle, drive gear

1шт.

17

D28964

O-RING

SEAL - "O" ring, pocket

2шт.

18

D28727

SEAL - retaining plate

2шт.

19

NLS

NO LONGER SERVICED

- backup, plastic

2шт.

20

D28725

PLATE - retaining, wear plate

2шт.

21

D28726

SEAL - retaining plate

2шт.

22

D28729

WEAR PLATE

PLATE - wear, shaft end

1шт.

23

D34450

GEAR SET - drive and driven

1шт.

24

D29412

PIN - dowel

2шт.

25

D34449

HOUSING - gear

1шт.

26

D28728

WEAR PLATE

PLATE - wear, port end

1шт.

D34448

COVER ASSEMBLY - pump, port end

1шт.

27

NSS

NOT SOLD SEPARAT

COVER - pump, port end

1шт.

28

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, driven gear

1шт.

29

G10642

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W

BEARING - needle, drive gear

1шт.
