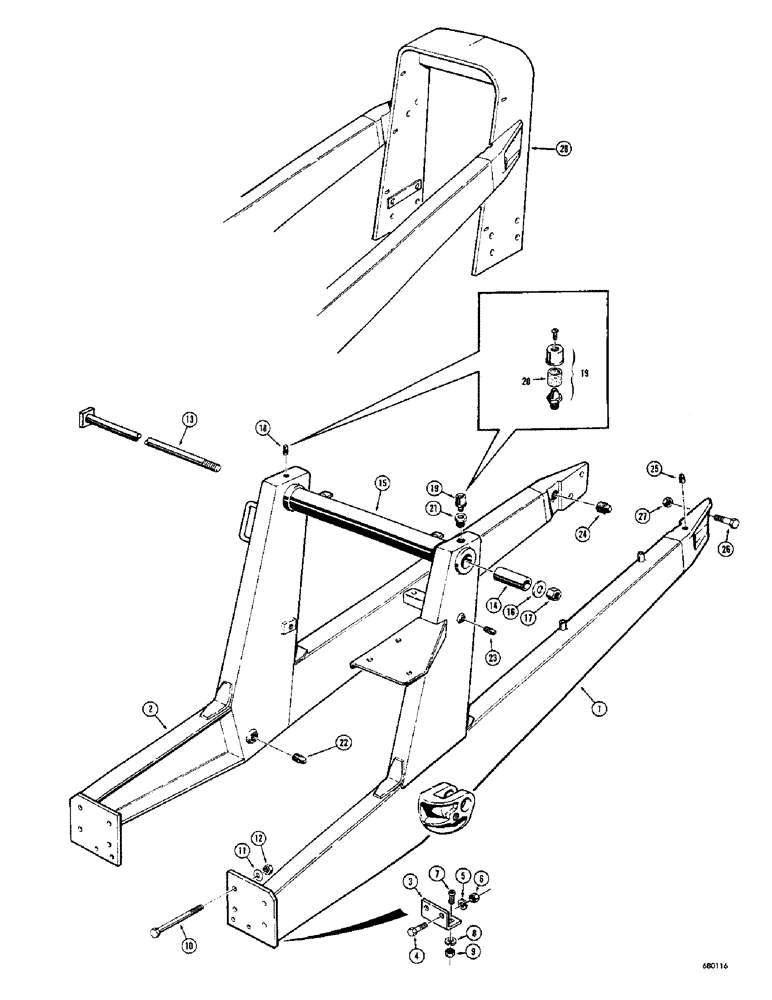

Запчасти Case 23 (004) - LOADER SUBFRAME AND RELATED PARTS

1

D33937

SUBFRAME - loader, R.H. (Before serial number 4110090) See D36972

1шт.

D36972

SUBFRAME - loader, R.H. (Serial number 4110090 and after)

1шт.

2

D30097

SUBFRAME - loader, R.H. (Before serial number 4110090) See D36937

1шт.

D36937

SUBFRAME - loader, R.H. (Serial number 4110090 and after)

1шт.

3

D30995

BRACKET - anchor, floor plate

2шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

7

77-512

SCREW

- truss head, 5/16" - 18 NC x 3/4"

4шт.

8

92-5

LOCK WASHER,5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

10

113-639

BOLT

HHCS - 5/8" - 11 NC x 8"

8шт.

11

A28084

WASHER

- special

8шт.

12

129-563

NUT,5/8"-11, G8

- hex. (5/8" - 11 NC)

8шт.

13

D33412

ROD - tie, subframe

1шт.

14

D33413

BUSHING - spacer

2шт.

15

D31389

TUBE

TIBE - subframe

1шт.

16

F62199

WASHER

SPACER - washer

1шт.

17

131-363

LOCK NUT,1 1/2"-6, GA

NUT - hex., lock (1-1/2" - 6 NC)

1шт.

18

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT) If used

1шт.

19

31543

BREATHER

- hydraulic reservoir

1-2шт.

20

T14011

ELEMENT

- breather

1шт.

21

221-62

REDUCER,Hex, 1" x 1/4" NPT

BUSHING - pipe (1" NPT x 1/4" NPT)

1-2шт.

22

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, square head (3/4" NPT) If used

1шт.

23

221-13

PLUG,Sq Hd, 3/8"-18

- pipe, square head (3/8" NPT)

1шт.

24

221-16

PLUG,Sq Hd, 1"-11 1/2 NPTF

- pipe, square head (1" NPT) If used

1шт.

25

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

26

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

HHCS - 3/4" - 10 NC x 2-1/2"

4шт.

27

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

4шт.

28

D31058

GUARD - grill, gasoline model

1шт.

D31075

GUARD - grill, diesel model

1шт.
