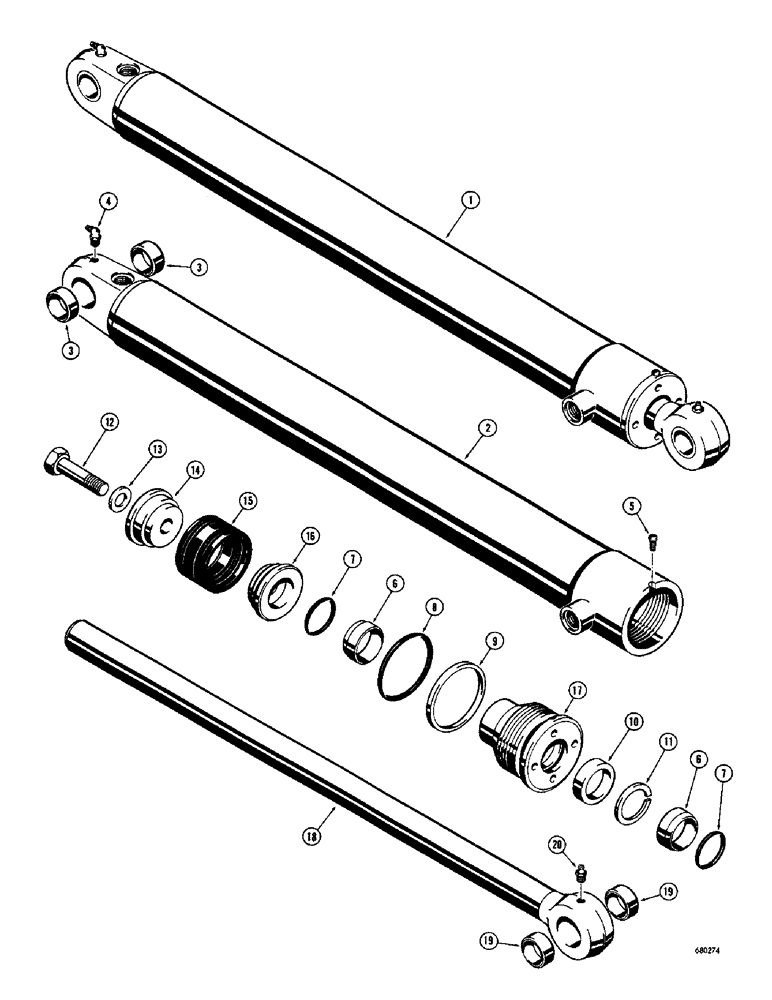

Запчасти Case 23 (066) - D28331 BACKHOE BUCKET CYLINDER

1

D28331

CYLINDER ASSY.

CYLINDER - hydraulic, bucket (3" I.D. x 26-5/8" stroke)

1шт.

2

D28332

TUBE - cylinder

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

D42870

GASKET KIT

KIT - gland packing

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27706

WIPER SEAL

WIPER - rod

2шт.

7

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper (Use on D28048 gland)

2шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D28049

RING

- backup, gland seal

1шт.

10

D36969

CUP

SEAL - piston rod

1шт.

11

D28498

RING

- backup, rod seal

1шт.

12

D29306

BOLT

- special

1шт.

13

D95031

WASHER

- special (If used)

1шт.

14

D28366

PISTON

- split, bolt end

1шт.

15

D28374

PACKAGE,SERVICE

PACKING - piston

1шт.

16

D28365

PISTON

- split, eye end

1шт.

17

D28048

GLAND

- packing (When stock is exhausted, use D45067 gland for service)

1шт.

D45067

GLAND

- packing

1шт.

18

D32141

ROD ASSY.

ROD - piston (1-1/2")

1шт.

19

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
