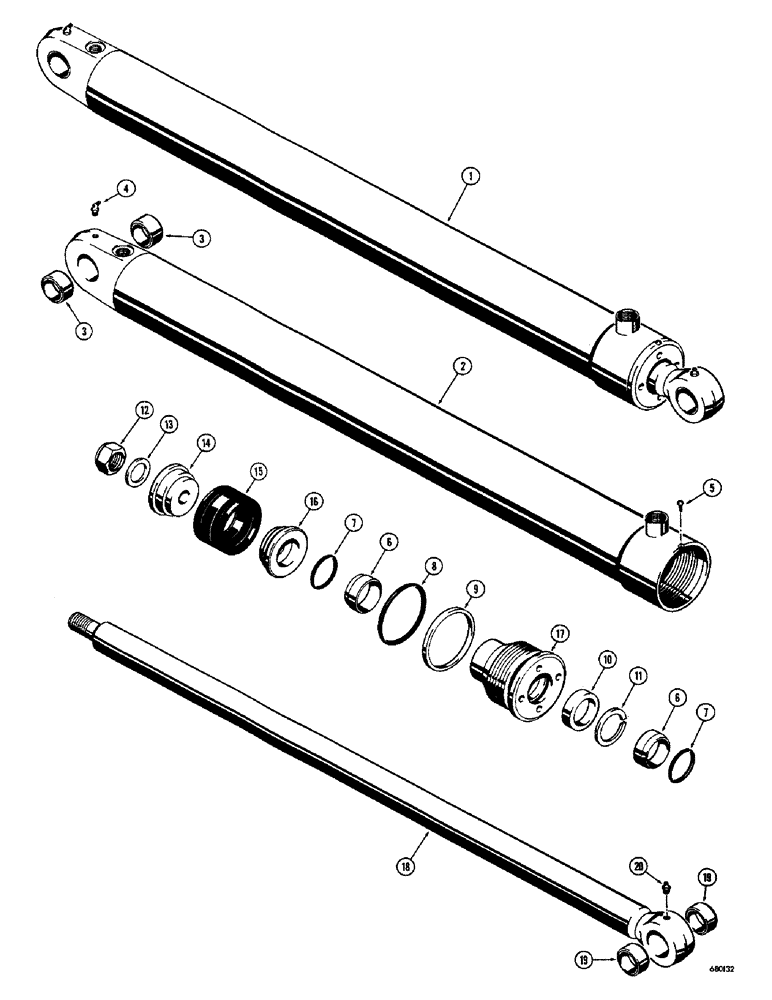

Запчасти Case 23 (064) - D28314 BACKHOE CROWD CYLINDER

1

D28314

CYLINDER ASSY.

CYLINDER - hydraulic, crowd (3-1/2" I.D. x 38-3/8" stroke)

1шт.

2

D28386

TUBE - cylinder

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT)

1шт.

D42874

PACKING GLAND

KIT - gland packing

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self - tapping, #8 - 32 NC x 1/4"

1шт.

6

D27380

SCRAPER RING

WIPER - rod

2шт.

7

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring, wiper (Use on D28320 gland)

2шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

10

D36971

RING

SEAL - piston rod

1шт.

11

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal

1шт.

12

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF)

1шт.

13

D95032

WASHER

- special (If used)

1шт.

14

D28367

PISTON

- split, nut end

1шт.

15

D36963

PACKING

- piston

1шт.

16

D28368

PISTON

- split, eye end

1шт.

17

D28320

GLAND

- packing (When stock is exhausted, use D45070 gland for service)

1шт.

D45070

GLAND

- packing

1шт.

18

D28318

ROD ASSY.

ROD - piston (2" dia.)

1шт.

19

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- rod

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
