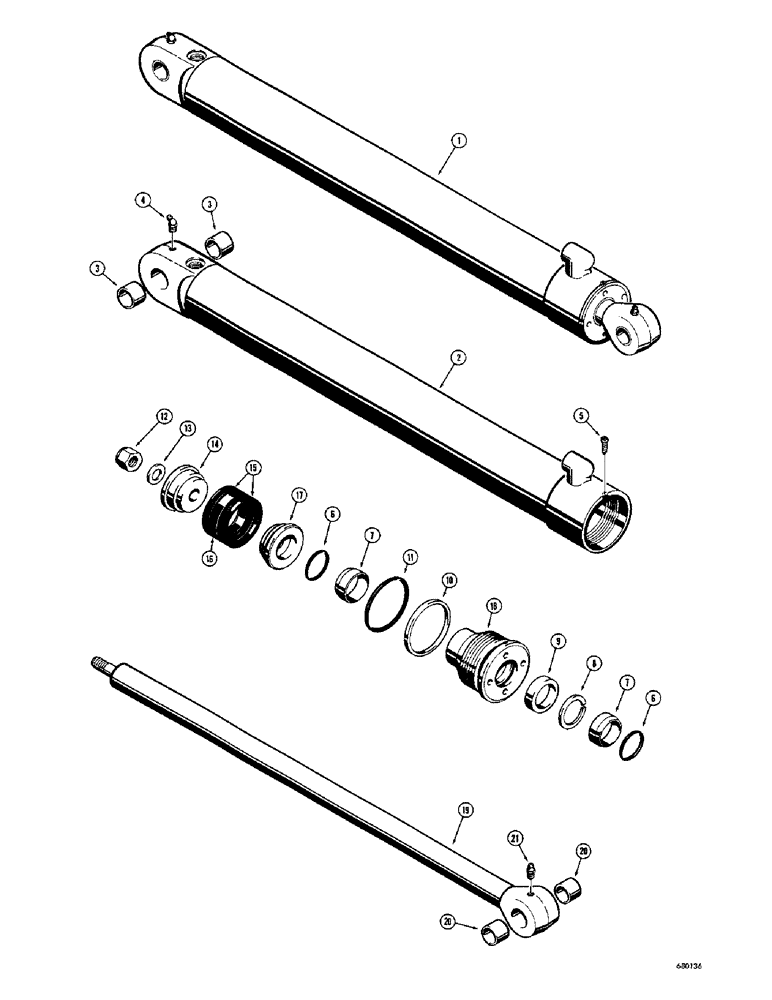

Запчасти Case 23 (062) - D32167 BACKHOE BOOM CYLINDER

1

D32167

CYLINDER

- hydraulic, boom (3-1/2" I.D. x 31-3/4" stroke)

1шт.

2

D32169

TUBE - cylinder

1шт.

3

D32172

BUSHING - tube

2шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/2" NPT)

1шт.

D42873

GASKET KIT

KIT - gland packing

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (Use on D27431 gland)

2шт.

7

D27432

SHIM

- rod

2шт.

8

D28499

RING

- backup, rod seal

1шт.

9

D36970

CUP

SEAL - piston rod

1шт.

10

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

11

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

12

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF)

1шт.

13

D95032

WASHER

- special

1шт.

14

D28367

PISTON

- split, nut end

1шт.

15

D41278

PACKING

- piston, chevron

2шт.

16

D41279

PACKAGE, RINGS

RING - bronze, packing (Use with D41278 packing only)

1шт.

17

D28369

PISTON

- split, eye end

1шт.

18

D27431

GLAND

- packing, (When stock is exhausted, use D45069 gland for service)

1шт.

D45069

GLAND

- packing

1шт.

19

D32168

ROD - piston (1-3/4" dia.)

1шт.

20

D32172

BUSHING - rod

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
