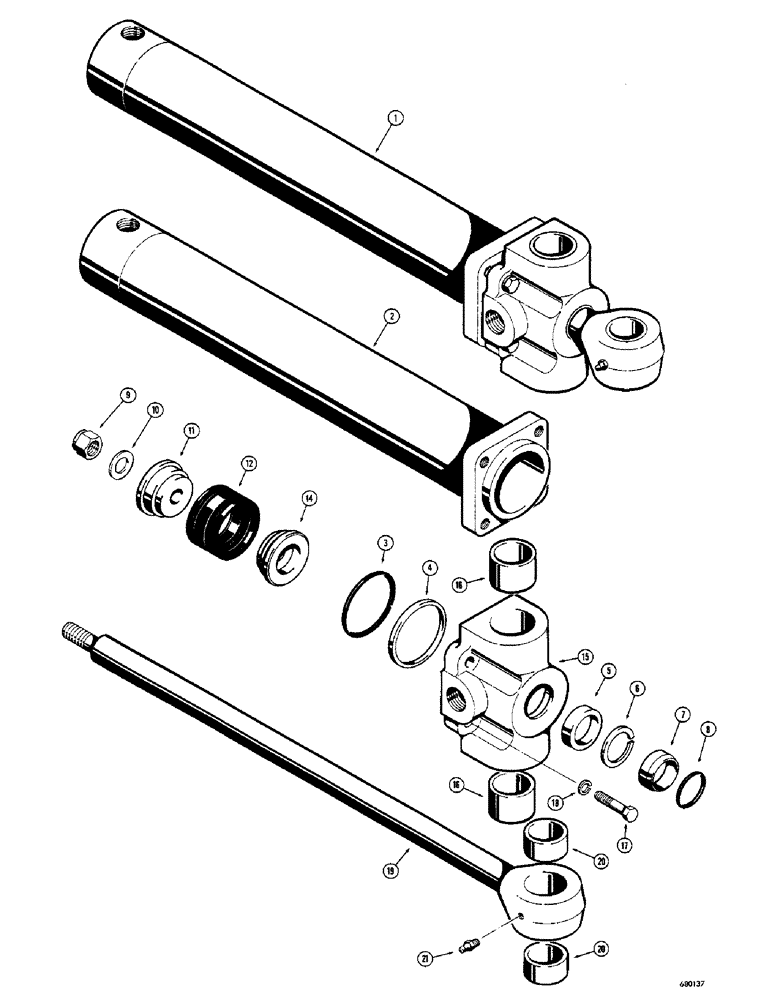

Запчасти Case 23 (060) - D28325 AND D28326 BACKHOE SWING CYLINDERS

1

D28326

CYLINDER - hydraulic, R.H. swing (2-1/2" I.D. x 15-11/16" stroke)

1шт.

D28325

CYLINDER - hydraulic, L.H. swing (2-1/2" I.D. x 15-11/16" stroke)

1шт.

2

D26051

TUBE - cylinder

1шт.

D42868

GLAND

KIT - gland packing

1шт.

3

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring, end cap

1шт.

4

D24985

RING

- backup, end cap seal

1шт.

5

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- rod

1шт.

6

D28497

RING

- backup, rod seal

1шт.

7

D27705

WIPER

- rod

1шт.

8

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, wiper

1шт.

9

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, 3/4"-16, GB

1шт.

10

D95031

WASHER

- special (If used)

1шт.

11

D28364

PISTON

- split, nut end

1шт.

12

D28373

PACKING

- piston

1шт.

13

RESERVED

1шт.

14

NLS

NO LONGER SERVICED

- split, eye end

1шт.

15

D28322

END CAP - cylinder

1шт.

16

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cap

2шт.

17

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

D28323

ROD - piston (1-1/4" dia.)

1шт.

20

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
