Артикул
Название
Примечание
Количество
1
D33421

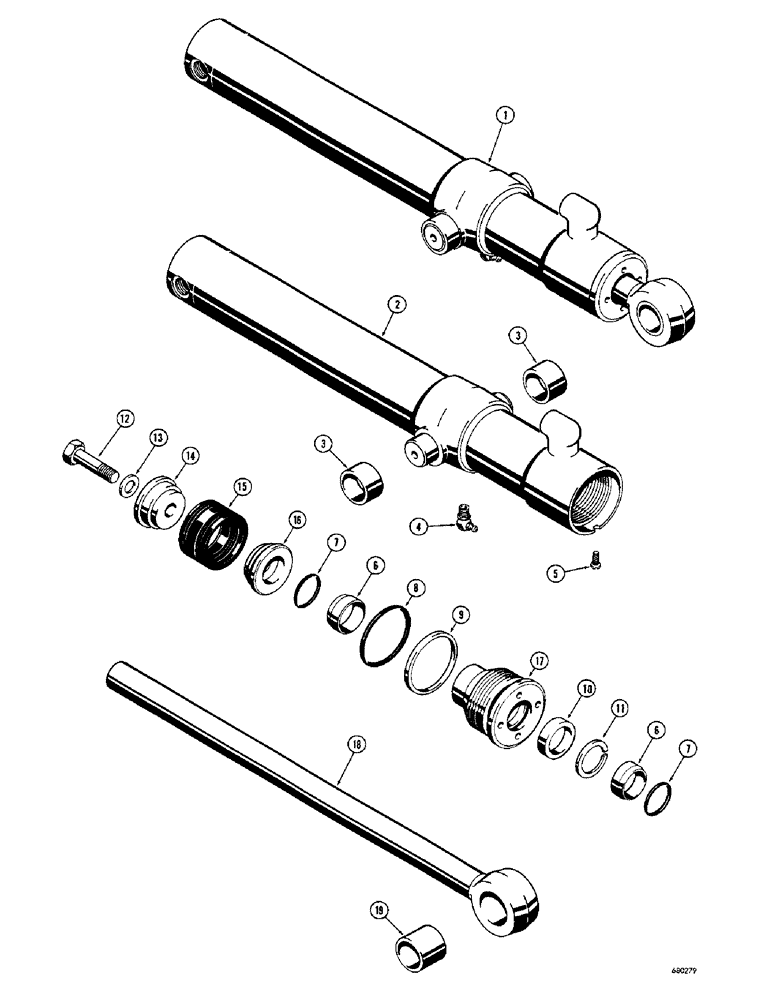

CYLINDER - hydraulic, dump (3" I.D. x 20" stroke) Early production (When stock is exhausted, use D36751 cylinder for service)
1шт.
D36751
CYLINDER - hydraulic, dump (3" I.D. x 20" stroke) Late production
1шт.
2
D33438
TUBE - cylinder
1шт.
3
D31511
BUSHING
- tube
2шт.
4
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
D42870
GASKET KIT
KIT - gland packing
1шт.
5
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, #8 - 32 NC x 1/4"
1шт.
6
D27706
WIPER SEAL
WIPER - rod
2шт.
7
D27878
O-RING,1.609" ID x 1.887" OD
SEAL - "O" ring, wiper (Used on D28048 gland)
2шт.
8
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
SEAL - "O" ring, gland
1шт.
9
D28049
RING
- backup, gland seal
1шт.
10
D36969
CUP
SEAL - rod
1шт.
11
D28498
RING
- backup, rod seal
1шт.
12
D29306
BOLT
- special
1шт.
13
D95031
WASHER
- special (If used)
1шт.
14
D28366
PISTON
- split, bolt end
1шт.
15
D28374
PACKAGE,SERVICE
PACKING - piston
1шт.
16
D28365
PISTON
- split, eye end
1шт.
17
D28048
GLAND
- packing (When stock is exhausted, use D45067 gland for service)
1шт.
D45067
GLAND
- packing
1шт.
18
D33435
ROD
- piston (1-1/2" dia.) Early production D33421 only
1шт.
18
D32146
ROD
- piston (1-1/2" dia.) Late production
1шт.
19
D40929
LEVER
BUSHING - rod
1шт.
Выбрано товаров: 23
