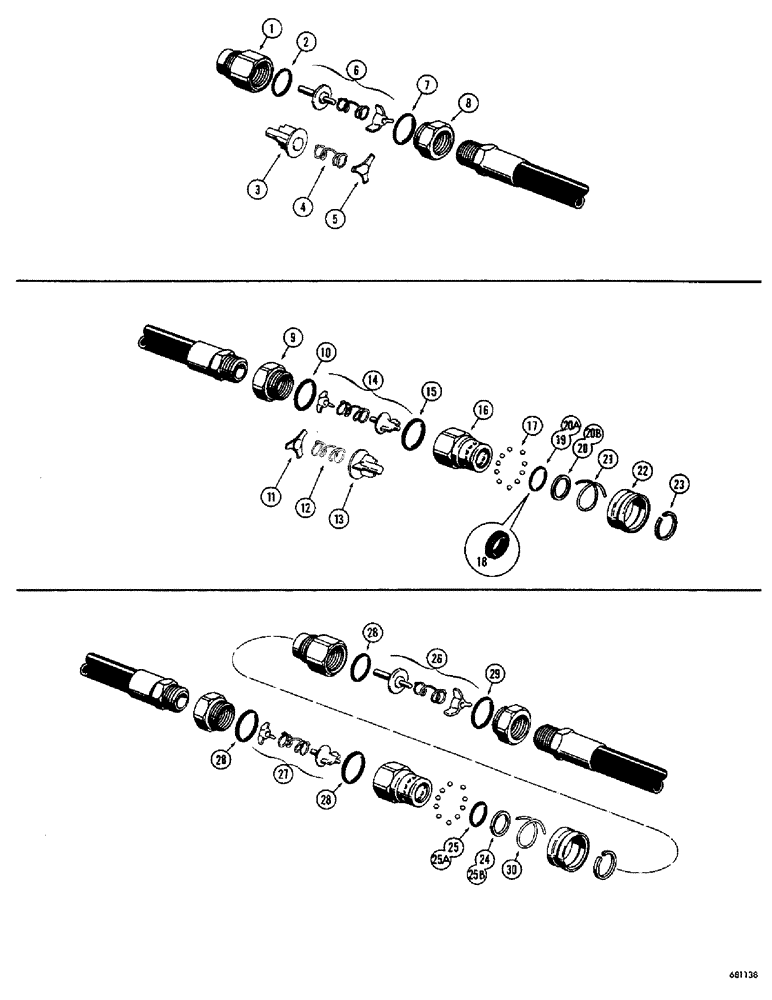

Запчасти Case 23 (052) - HYDRAULIC COUPLINGS, D31617 HYDRAULIC COUPLING

D31617

COUPLING, BREAK AWAY

COUPLING - male (Snap-Tite)

1шт.

1

D31971

BODY

- male coupling

1шт.

2

D31984

SEAL

- valve

1шт.

3

D31972

VALVE - early production (Use D35658)

1шт.

4

D31973

HOSE

SPRING - early production (Use D35658)

1шт.

5

D31974

RETAINER - early production (Use D35658)

1шт.

6

D35658

VALVE

ASSEMBLY - male coupling (Late production)

1шт.

7

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- end fitting

1шт.

8

D31975

FITTING

- end

1шт.

D31618

COUPLING, BREAK AWAY

COUPLING - female (Snap-Tite), D31618 hydraulic

1шт.

9

D31975

FITTING

- end, D31618 hydraulic coupling

1шт.

10

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- end fitting, D31618 hydraulic coupling

1шт.

11

D31974

RETAINER - early production (Use D35659), D31618 hydraulic coupling

1шт.

12

D31973

HOSE

SPRING - early production (Use D35659), D31618 hydraulic coupling

1шт.

13

D31972

VALVE - early production (Use D35659), D31618 hydraulic coupling

1шт.

14

D35659

LOCK VALVE

VALVE ASSEMBLY - female coupling (Late production), D31618 hydraulic

1шт.

15

D31984

SEAL

- valve, D31618 hydraulic coupling

1шт.

16

D31976

BODY - female coupling, D31618 hydraulic

1шт.

17

D31982

KIT

BALL KIT - includes 10 balls, D31618 hydraulic coupling

1шт.

18

D31977

SEAL

- "U" packer, internal (Use D31983), D31618 hydraulic coupling

1шт.

19

D31983

O-RING

SEAL - "O" ring, internal (When stock is exhausted, use D42469 kit for service), D31618 hydraulic coupling

1шт.

20

D31978

RING

- backup (When stock is exhausted, use D42469 kit for service), D31618 hydraulic coupling

1шт.

D42469

SEAL

KIT - seal, D31618 hydraulic coupling

1шт.

20a

NSS

NOT SOLD SEPARAT

RING - backup, D31618 hydraulic coupling

1шт.

20b

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, D31618 hydraulic coupling

1шт.

21

D31979

VALVE SPRING

SPRING - sleeve, D31618 hydraulic coupling

1шт.

22

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining, D31618 hydraulic coupling

1шт.

23

D31981

RING

- retaining, D31618 hydraulic coupling

1шт.

D31456

KIT

- service, D31456 hydraulic coupling

1шт.

24

D31978

RING

- backup (When stock is exhausted, use D42469 kit for service), D31456 service kit for hydraulic coupling

1шт.

25

31983

SEAL - "O" ring, internal (When stock is exhausted, use D42469 kit for service), D31456 service kit for hydraulic coupling

1шт.

D42469

SEAL

KIT - seal, D31456 service for hydraulic coupling

1шт.

25a

NSS

NOT SOLD SEPARAT

RING- backup, D31456 service kit for hydraulic coupling

1шт.

25b

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, D31456 service kit for hydraulic coupling

1шт.

26

D35658

VALVE

ASSEMBLY - male coupling, D31456 service kit , hydraulic

1шт.

27

D35659

LOCK VALVE

VALVE ASSEMBLY - female coupling, D31456 service kit, hydraulic

1шт.

28

D31984

SEAL

- valve, D31456 service kit for hydraulic coupling

2шт.

29

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- end fitting, D31456 service kit for hydraulic coupling

2шт.

30

D31979

VALVE SPRING

SPRING - sleeve, D31456 service kit for hydraulic coupling

1шт.
