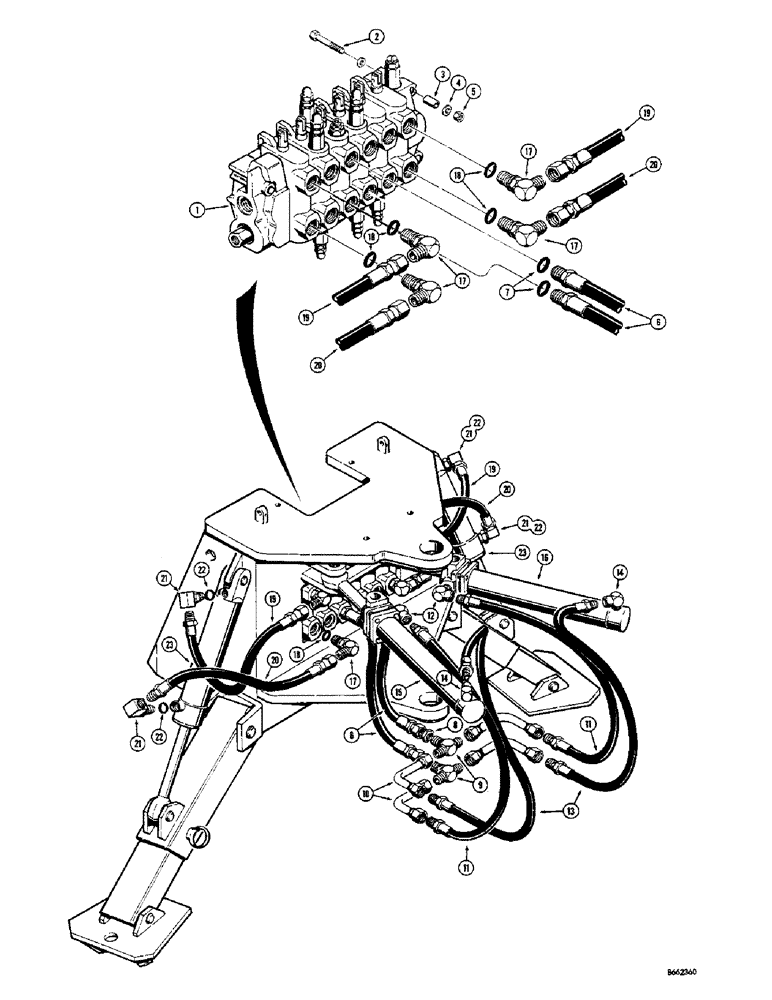

Запчасти Case 23 (046) - SWING AND STABILIZER CYLINDER HYDRAULICS

1

D33778

VALVE - hydraulic, backhoe control (Parts list Figure 076)

1шт.

2

13-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

3шт.

3

D35466

SPACER - valve

3шт.

4

92-6

LOCK WASHER,3/8"

early production 3/8"

3шт.

95-6

WASHER,3/8"

- standard wrot () Late production 3/8"

6шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) Early production

3шт.

95-6

WASHER,3/8"

- standard wrot () Late production 3/8"

9шт.

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC) Late production

3шт.

6

D23275

HOSE - hydraulic, valve to swing cylinders (18" long)

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Swing cylinder hydraulics

1шт.

8

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex., jam (3/4" - 16 NF), swing cylinder hydraulics

2шт.

9

D23223

TEE - bulkhead, special, swing cylinder hydraulics

2шт.

10

D23290

TUBE - hydraulic, tee to swing cylinders

4шт.

11

D33717

HOSE - hydraulic, to rod end of swing cylinder (24" long)

2шт.

12

D23309

ELBOW - 90 degrees, swing cylinder hydraulics

2шт.

13

D33719

HOSE - hydraulic, to closed end of swing cylinder (27" long)

2шт.

14

D23540

ELBOW - special, 90 degrees (Restrictor), swing cylinder hydraulics

2шт.

15

D28326

CYLINDER - hydraulic, R.H. swing (2-1/2" I.D. x 15-11/16" stroke) Parts list Figure 060

1шт.

16

D28325

CYLINDER - hydraulic, L.H. swing (2-1/2" I.D. x 15-11/16" stroke) Parts list Figure 060

1шт.

17

D23973

ELBOW - adjustable, 90 degrees (Early production) When stock is exhausted, use D25667, stabilizer cylinger hydraulics

4шт.

D25667

ELBOW

- adjustable, 90 degrees (Late production), stabilizer cylinder hydraulics

4шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Use with D23973 and D25667), stabilizer cylinder hydraulics

1шт.

19

D33713

HOSE ASSY.

HOSE - hydraulic, valve to closed end of stabilizer cylinder (20" long) For service, use D45362 hose, hydraulics

2шт.

D45362

HOSE

- hydraulic, valve to closed end of stabilizer cylinder (22" long)

2шт.

20

D33715

HOSE ASSY.

HOSE - hydraulic, valve to rod end of stabilizer cylinder (27" long)

2шт.

21

D24070

ELBOW

- adjustable, 90 degrees, stabilizer cylinder hydraulics

4шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Stabilizer cylinder hydraulics

1шт.

23

D28279

CYLINDER - hydraulic, stabilizer (2-1/2" I.D. x 11" stroke) Parts list Figure 058

2шт.
