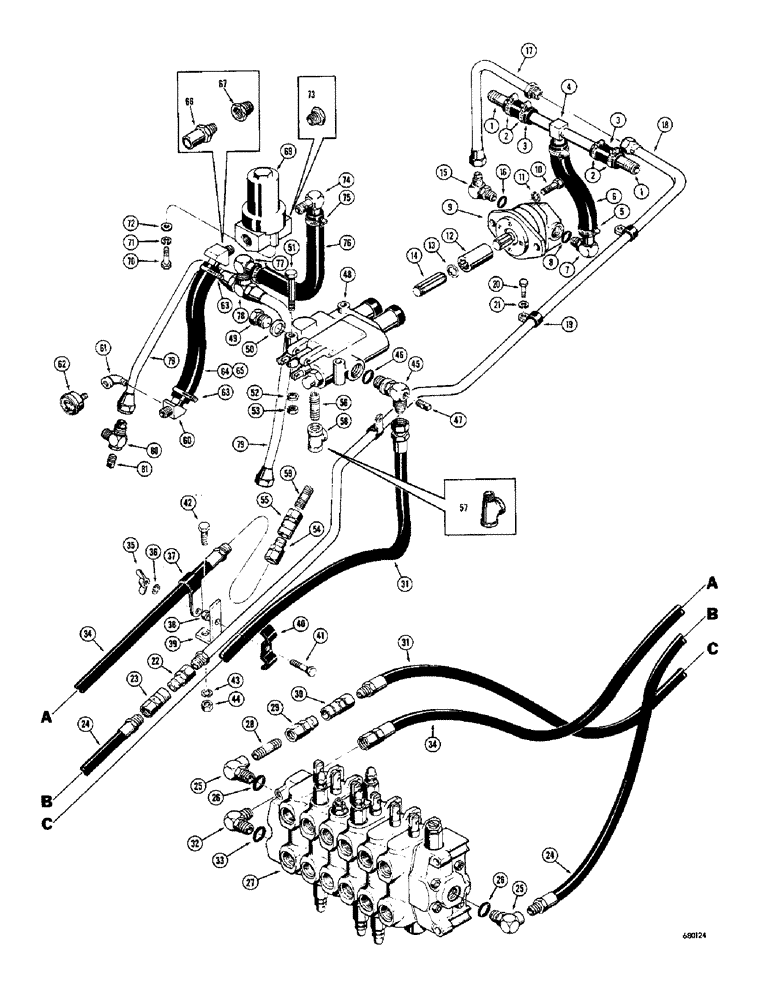

Запчасти Case 23 (042) - BACKHOE PRIMARY HYDRAULICS

1

D33363

FITTING

STEM - hose, at hydraulic reservoir

2шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

3

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction, at hydraulic reservoir 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

4

D33820

TEE

TUBE - special, reservoir to pump (Early production) When stock is exhausted, use D38631

1шт.

D38631

TEE

TUBE - special, reservoir to pump (Late production)

1шт.

5

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

6

D32772

X

HOSE - suction, early production (14-1/4" long) When stock is exhausted, use D35463

1шт.

D35463

HOSE

- suction, late production (13-5/8" long)

1шт.

7

D33704

X

STEM - hose, 90 degrees adjustable

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

9

D33703

PUMP - hydraulic, loader backhoe models only (17.5 G.P.M. at 1750 R.P.M. at 1800 P.S.I.) For service, use D39525 (Parts list Figure 070)

1шт.

D39525

PUMP - hydraulic, loader backhoe models only (17.5 G.P.M. at 1750 R.P.M. at 1800 P.S.I.) Parts list Figure 072

1шт.

10

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4" (Use with D33703 pump only)

2шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Use with D39525 pump only) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

D31108

SPLINED COUPLING

COUPLING - female, Serial Range: pump-shaft

1шт.

13

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , coupling 0.75", Int, #75

1шт.

14

D30569

SHAFT

- pump drive

1шт.

15

D25098

ELBOW - adjustable, 90 degrees

1шт.

16

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

17

D30563

TUBE ASSY.

TUBE - hydraulic, pump to backhoe control valve

1шт.

18

D33705

TUBE - hydraulic, pump to backhoe control valve

1шт.

19

R11405

CLAMP

- tube

2шт.

20

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

21

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock (1/2")

2шт.

22

D31617

COUPLING, BREAK AWAY

COUPLING - male, quick disconnect (Parts list Figure 052)

1шт.

23

D31618

COUPLING, BREAK AWAY

COUPLING - female, quick disconnect (Parts list Figure 052)

1шт.

24

D33709

FLEXIBLE HOSE

HOSE - hydraulic, to backhoe control valve (38" long) Early production

1шт.

D31474

HOSE

- hydraulic, to backhoe control valve (38" long) Late production

1шт.

25

D26463

FITTING

ELBOW - adjustable, 90 degrees

2шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

27

D33778

VALVE - hydraulic, backhoe control (Parts list Figure 076)

1шт.

28

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - pipe (3/4" NPT x 2")

1шт.

29

D31617

COUPLING, BREAK AWAY

COUPLING - female, quick disconnect (Parts list Figure 052)

1шт.

30

D31618

COUPLING, BREAK AWAY

COUPLING - male, quick disconnect (Parts list Figure 052)

1шт.

31

D33711

HOSE - hydraulic, pressure (86" long) Backhoe control valve to loader control valve

1шт.

32

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

34

D33707

HOSE - hydraulic, return (65" long) Backhoe control valve to loader control valve

1шт.

35

129-419

WING NUT,5/16"-18

NUT - wing (5/16" - 18 NC)

1шт.

36

92-5

LOCK WASHER,5/16"

1шт.

37

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- hose, inner

1шт.

38

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

39

D31392

CLAMP

BRACKET - hose clamp

1шт.

40

R15257

CLAMP

- hose, outer

1шт.

41

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

42

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

43

92-8

LOCK WASHER,1/2"

1шт.

44

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

45

D26360

ELBOW - adjustable, 90 degrees

1шт.

46

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

47

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

48

D28489

VALVE

- hydraulic, loader control (2 spool) Parts list Figure 074)

1шт.

49

D25604

PLUG

- special

1шт.

50

D25653

GASKET

- plug

1шт.

51

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

3шт.

52

92-6

LOCK WASHER,3/8"

3шт.

53

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

54

D31617

COUPLING, BREAK AWAY

COUPLING - male, quick disconnect (Parts list Figure 052)

1шт.

55

D31618

COUPLING, BREAK AWAY

COUPLING - female, quick disconnect (Parts list Figure 052)

1шт.

56

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - pipe (3/4" NPT x 2")

1шт.

57

221-694

TEE - street (3/4" NPT) Early production

1шт.

58

221-425

FITTING,3/4" NPT

TEE - pipe, female () Late production 3/4" NPT

1шт.

59

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - pipe (3/4" NPT x 2")

1шт.

60

D33588

STEM - hose, 45 degrees

1шт.

61

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

62

D29650

ELECTRICAL GAUGE

GAUGE - filter condition indicator

1шт.

63

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

64

D33587

HOSE - low pressure, valve to filter (13-3/4" long) Early production (Use D36798)

1шт.

65

D36798

HOSE

- low pressure, valve to filter (10-5/8" long) Late production

1шт.

66

R14353

CONNECTOR, ELEC

STEM - hose (Early production) See 217-146

1шт.

67

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - reducing (Use with R14353 only)

1шт.

68

217-146

ELBOW,45 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM - hose, 45 degrees (Late production)

1шт.

69

D32254

FILTER ASSY

- hydraulic oil, Marvel no. 33425 (When stock is exhausted, use D43567 filter for service) Parts list Figure 067A

1шт.

69

D43567

FILTER ASSY

- hydraulic oil, Marvel no. M2735A (Parts list Figure 067A)

1шт.

70

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

71

92-8

LOCK WASHER,1/2"

2шт.

72

195-53

WASHER,1" x 2" x .134"

- plain (1/2")

2шт.

73

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - reducing (Use with D33589 only)

1шт.

74

D33589

X

STEM - hose, 90 degrees (Early production) For service, use 217-136

1шт.

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM - hose, 90 degrees (Late production)

1шт.

75

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

76

D31469

HOSE

- return, Serial Range: filter-reservoir

1шт.

77

D33589

X

STEM - hose, 90 degrees

1шт.

78

218-576

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

- tube

1шт.

79

D31354

TUBE - hydraulic, valve to reservoir (Used on models without Draft-O-Matic)

2шт.

D32656

TUBE - hydraulic, valve to reservoir (Used on models wtih Draft-O-Matic)

2шт.

80

D28485

ELBOW UNION

ELBOW - special, 90 degrees

2шт.

81

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT)

2шт.
