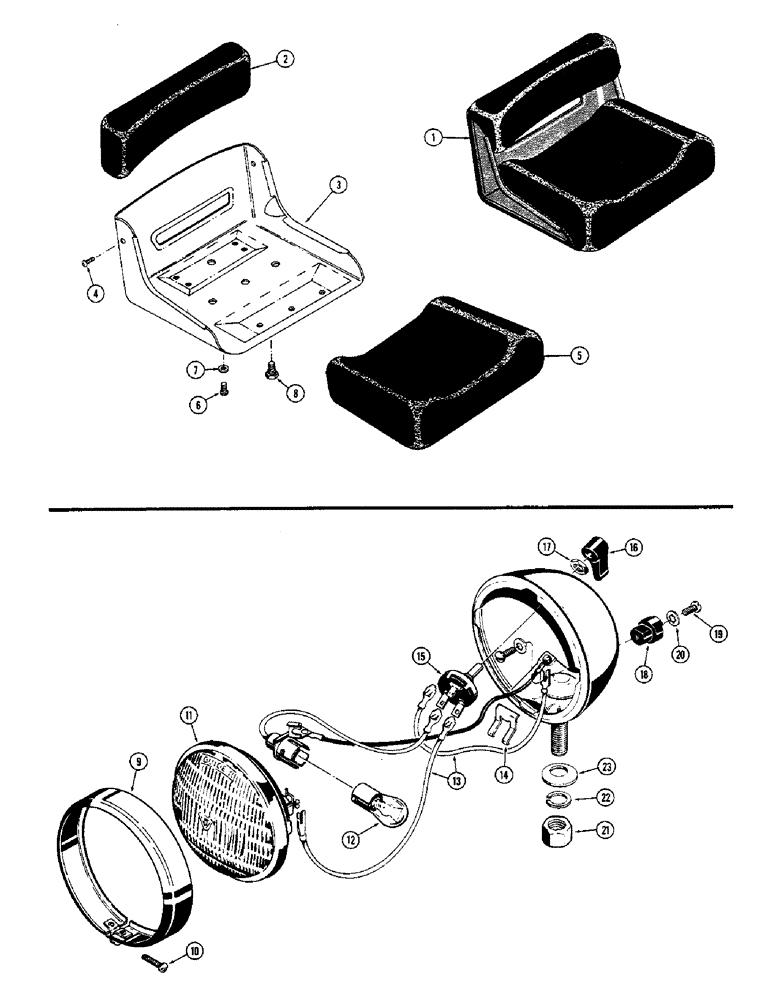

Запчасти Case 23 (040) - DELUXE SEAT

1

D32724

SEAT ASSY.

SEAT ASSEMBLY - deluxe (Optional)

1шт.

2

A24712

BACKREST

- seat

1шт.

3

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

4

173-213

SCREW,Phil Rnd Hd, 1/4" - 20 x 1/2"

- machine, Phillips round head (Zinc plated) 1/4" - 20 NC x 1/2"

3шт.

5

A24713

CUSHION

- seat

1шт.

6

173-207

X

SCREW - machine, Phillips round head (Zinc plated) 1/4" - 20 NC x 5/8"

2шт.

7

195-518

WASHER,1/4", SAE

2шт.

8

G49092

BOLT - shoulder, seat mounting

1шт.

A20965

LAMP BASE

LAMP ASSEMBLY - flood and tail

1шт.

9

B50255

MOLDING

MOULDING - lamp, flood and tail

1шт.

10

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - moulding, flood and tail lamp

1шт.

11

A40855

LAMP BASE

SEALED BEAM - lamp, flood and tail

1шт.

12

B50223

BULB

- lamp, flood and tail

1шт.

13

B50273

WIRE - lamp, flood and tail

2шт.

14

10927

SPRING

- terminal, flood and tail lamp

1шт.

15

B50275

SWITCH

- lamp, flood and tail

1шт.

16

B50310

SWITCH

KNOB - switch, flood and tail lamp

1шт.

17

B50224

SPECIAL NUT

- retaining, switch, flood and tail lamp

1шт.

18

B50293

TERMINAL CONNECTOR

TERMINAL - lamp, flood and tail

1шт.

19

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- terminal, flood and tail lamp

2шт.

20

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER - Shakeproof lock, external tooth (#8), flood and tail lamp

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

Flood and tail lamp 1/2"-13, G5

1шт.

22

193-23

LOCK WASHER,Int Tooth, #5

WASHER med. sect. lock (1/2") Zinc plated, flood and tail lamp

1шт.

23

10923

WASHER

- special, mounting stud, flood and tail lamp

1шт.
