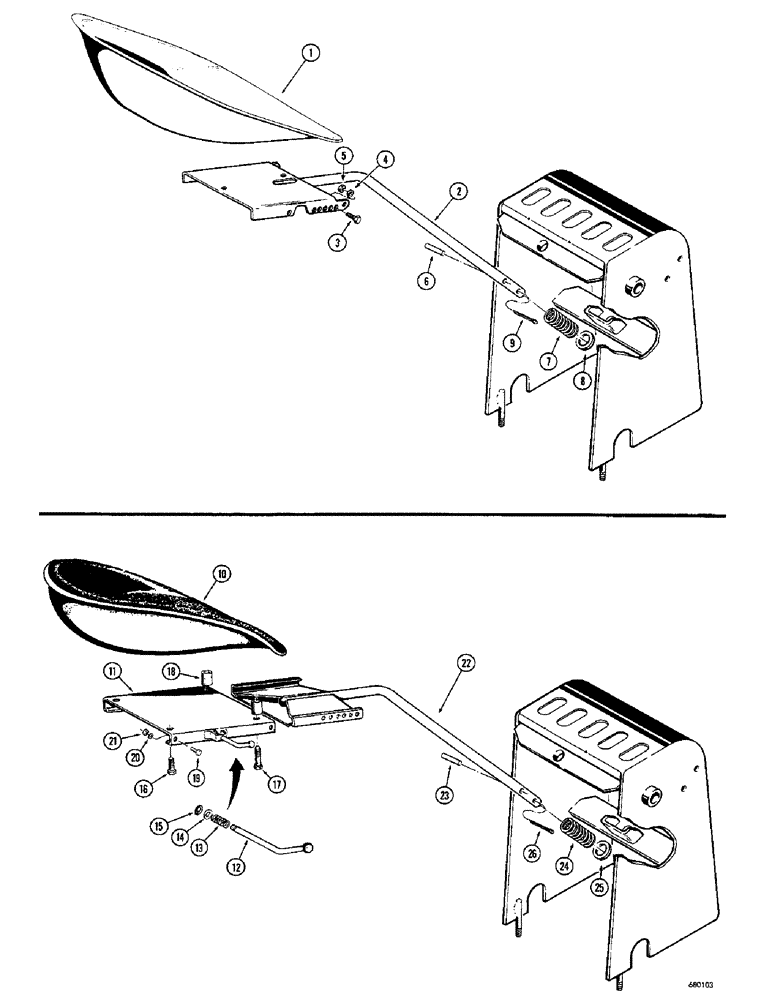

Запчасти Case 23 (038) - SWING DOWN BACKHOE SEAT, EARLY PRODUCTION

1

G13038

SEAT ASSEMBLY - backhoe, swing down (For service, use D31309)

1шт.

2

D25693

ROD - seat support

1шт.

3

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1-2шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1-2шт.

5

25-104

NUT,1/4"-20, G5

1-2шт.

6

138-210

LOCK PIN,1/2" x 3", Slotted

Pin, 1/2" x 3", Slotted

1шт.

7

D25773

SPRING

- rod

1шт.

8

B18275

WASHER

- spring retainer

1шт.

9

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

D31309

SEAT

ASSEMBLY - backhoe, swing down, late production

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT - padded, late production

1шт.

11

D31308

ADJUSTER

SLIDE - seat, upper, late production

1шт.

12

D40765

LEVER

- seat adjusting, late production

1шт.

13

D40766

SPRING

- lever, late production

1шт.

14

195-21

WASHER,5/16"

- standard wrot (), Late production 5/16"

1шт.

15

A27810

CIRCLIP,#X31, .243" Dia, E-Type

Ring, Retaining, , late production #X31, .243" Dia, E-Type

1шт.

16

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Late production Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

17

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" NC x 1-3/4", late production

2шт.

18

D31306

SPACER

- slide, late production

2шт.

19

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Late production Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Late production 1/4"

2шт.

21

25-104

NUT,1/4"-20, G5

Late production 1/4"-20, G5

2шт.

22

D38329

ROD - seat support, late production

1шт.

23

138-210

LOCK PIN,1/2" x 3", Slotted

Pin, , late production 1/2" x 3", Slotted

1шт.

24

D25773

SPRING

- rod, late production

1шт.

25

B18275

WASHER

- spring retainer, late production

1шт.

26

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), , Late production 3/16" x 1 1/2"

1шт.
