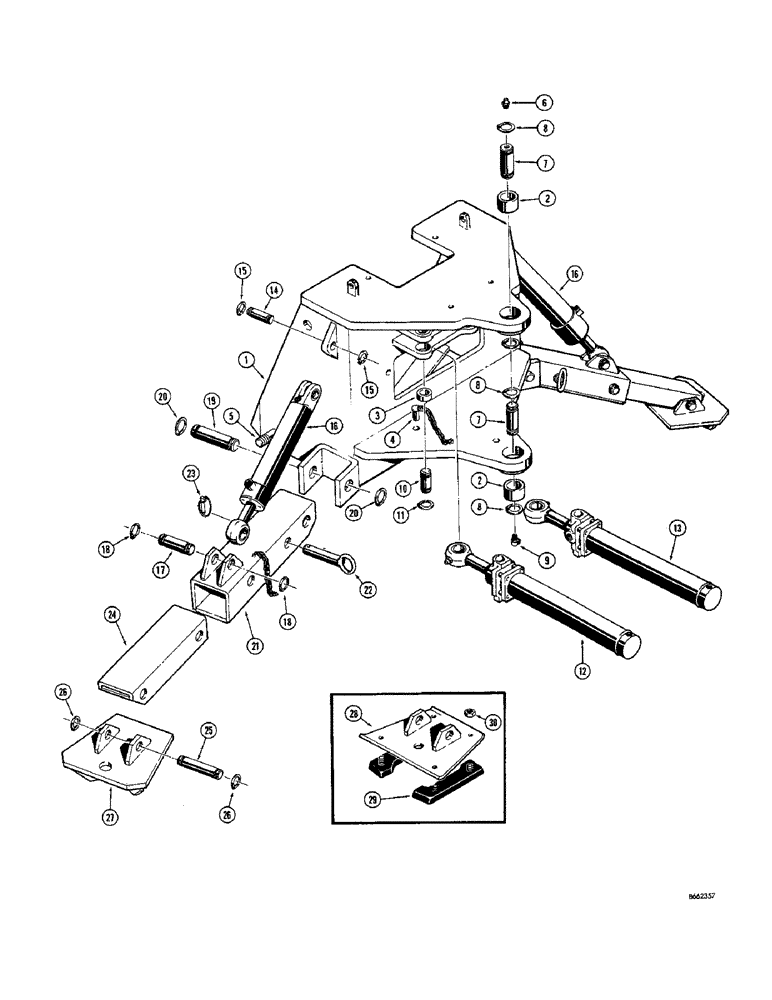

Запчасти Case 23 (030) - MOUNTING FRAME AND STABILIZERS

1

D33942

FRAME - backhoe mounting

1шт.

2

D21927

BUSHING,51.03mm ID x 63.45mm OD x 50.8mm L

- frame to swing tower

2шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- frame to swing cylinders

4шт.

4

D23266

PIN AND CHAIN - transport

1шт.

5

D30661

STUD

- frame mounting

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

7

D26114

PIN ASSEMBLY - mounting frame to swing tower

2шт.

8

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

9

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

10

D26105

PIN ASSY.

PIN ASSEMBLY - swing cylinder to mounting frame

2шт.

11

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

12

D28326

CYLINDER - hydraulic, R.H. swing (2-1/2" I.D. x 15-11/16" stroke) Parts list Figure 60

1шт.

13

D28325

CYLINDER - hydraulic, L.H. swing (2-1/2" I.D. x 15-11/16" stroke) Parts list Figure 60

1шт.

14

D26100

PIN ASSEMBLY - stabilizer cylinder at mounting frame

2шт.

15

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - retaining

2шт.

16

D28279

CYLINDER - hydraulic, stabilizer (2-1/2" I.D. x 11" stroke) Parts list Figure 58

2шт.

17

D26103

PIN ASSEMBLY - stabilizer cylinder at stabilizer leg

2шт.

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

19

D26109

PIN ASSY.

PIN ASSEMBLY - stabilizer leg at mounting frame

2шт.

20

D25279

SNAP RING,M35, Int

RING - retaining

2шт.

21

D21988

LEG - stabilizer, outer

2шт.

22

D21991

PIN - inner to outer stabilizer leg

2шт.

23

A30338

PIN

KLIK PIN - leg

2шт.

24

D23551

LEG - stabilizer, inner

2шт.

25

D26104

PIN

ASSEMBLY - stabilizer, Serial Range: leg-pad

2шт.

26

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

27

D23313

FOOT

- stabilizer, cleated (When stock is exhausted, use D38080)

2шт.

D38080

FOOT REST

FOOT - stabilizer, cleated

2шт.

28

D23326

FOOT

- stabilizer, street or cemetery pad (Optional) When stock is exhausted, use D38079

2шт.

D38079

FOOT REST

FOOT - stabilizer, street or cemetery pad

2шт.

29

D40469

SHOE (ASSY)

PAD - rubber, D23326 stabilizer foot (Optional)

4шт.

30

D29712

SPECIAL NUT

- hex., special (7/16" - 20 NF)

8шт.
