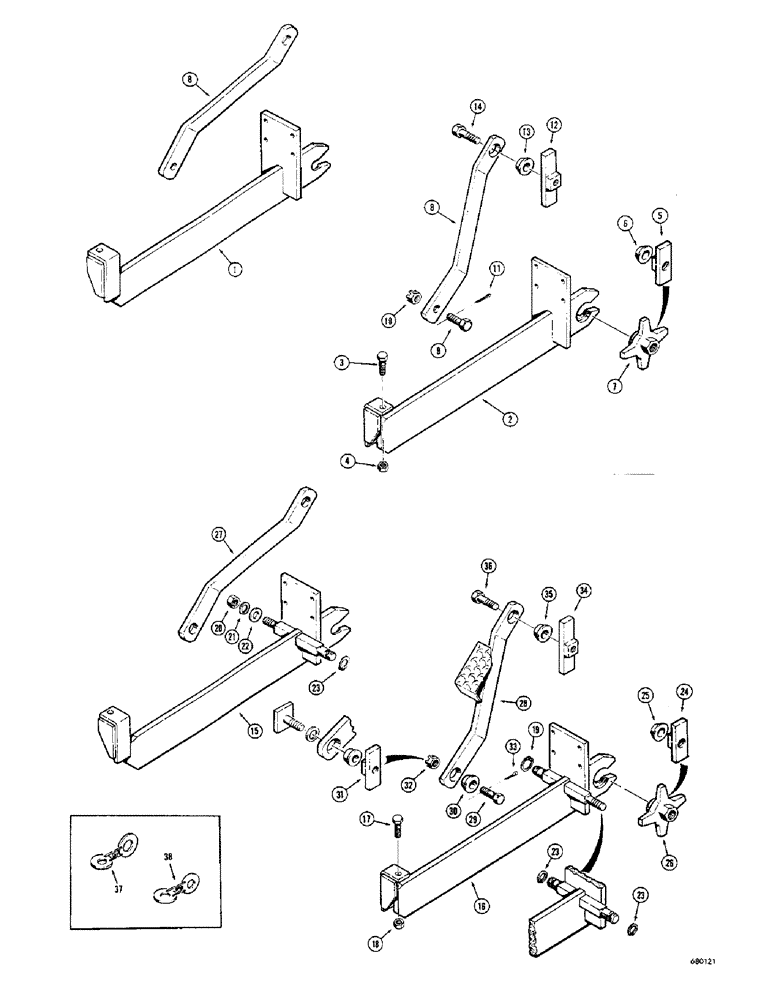

Запчасти Case 23 (026) - BACKHOE MOUNTING PARTS, USED ON MODELS WITHOUT DRAFT-O-MATIC

1

D30723

X

SUPPORT ARM - lower R.H. (Early production) When stock is exhausted use D35940 support arm

1шт.

D35940

ARM

SUPPORT ARM - lower R.H. (Late production)

1шт.

2

D30722

X

SUPPORT ARM - lower L.H. (Early production) When stock is exhausted use D35941 support arm

1шт.

D35941

ARM

SUPPORT ARM - lower L.H. (Late production)

1шт.

3

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

4

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

2шт.

5

D31495

BLOCK

NUT - wrench and hammer (Early production) If used

2шт.

6

D30714

WASHER

- cone (Use with D31495 nut)

2шт.

7

D34027

NUT

- star, special (Late production) If used

2шт.

8

D30726

ARM

SUPPORT ARM - upper

2шт.

9

D32520

STUD

ASSEMBLY - in loader frame, early production (Not shown) Use D37615

2шт.

D24476

X

BOLT - special, intermediate production (When stock is exhausted use D37615)

2шт.

D37615

BOLT

BOLT - special, late production

2шт.

10

25-1620

NUT,1 1/4"-7, G5, Hvy

- hex. (1-1/4" - 7 NC) Early production (If used)

2шт.

25-1220

SLOTTED NUT,1 1/4"-12, G5

NUT - hex., slotted (1-1/4" - 7 NC) Late production (If used)

2шт.

11

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), , Used with D37615 1/4" x 2 1/2"

2шт.

12

D31496

SPECIAL NUT

NUT - wrench and hammer

2шт.

13

D30717

WASHER

- cone, 15 degrees

2шт.

14

D30716

BOLT

- special

2шт.

15

D31721

X

SUPPORT ARM - lower R.H. (Used before serial number 4103251) Use D35943 support arm and D34027 nut, used on models with draft-o-matic

1шт.

D35943

SUPPORT ARM - lower, R.H. (Serial number 4103251 thru 4104526), used on models with draft-o-matic

1шт.

D37081

SUPPORT ARM - lower, R.H. (Serial number 4104526 and after), used on models with draft-o-matic

1шт.

16

D31722

X

SUPPORT ARM - lower, L.H. (Used before serial number 4103251) Use D35944 support arm and D34023 nut, used on models with draft-o-matic

1шт.

D35944

SUPPORT ARM - lower, L.H. (Serial number 4103251 thru 4104526), used on models with draft-o-matic

1шт.

D37082

SUPPORT ARM - lower, L.H. (Serial number 4104526 and after), used on models with draft-o-matic

1шт.

17

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Used on models with Draft-o-matic Hex, 3/4"-10 x 2 1/4", G5

1шт.

18

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC), used on models with draft-o-matic

2шт.

19

B18206

SNAP RING,#87, Ext

Ring, Snap, (Early production) if used, used on models with draft-o-matic #87, Ext

2шт.

20

25-1010

NUT,5/8"-11, G5

Late production (if used), used on models with Draft-o-matic 5/8"-11, G5

2шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used on models with Draft-o-matic 5/8"

2шт.

22

95-10

WASHER,5/8"

- plain (), used on models with draft-o-matic 5/8"

2шт.

23

B18206

SNAP RING,#87, Ext

Ring, Snap, , used on models with draft-o-matic #87, Ext

2шт.

24

D31495

BLOCK

NUT - wrench and hammer (Early production) If used on models with draft-o-matic

2шт.

25

D30714

WASHER

- cone, 15 degrees (Use with D31495 nut), used on models with draft-o-matic

2шт.

26

D34027

NUT

- star, special (Late production) If used, used on models with draft-o-matic

2шт.

27

D31725

SUPPORT ARM - upper, R.H., used on models with draft-o-matic

1шт.

28

D31726

SUPPORT ARM - upper, L.H., used on models with draft-o-matic

1шт.

29

D32520

STUD

ASSEMBLY - in loader frame (Early production) Not shown (Use D37615 bolt), used on models with draft-o-matic

2шт.

D24476

X

BOLT - special (Intermediate production) when stock is exhausted, use D37615 bolt, used on models with draft-o-matic

2шт.

D37615

BOLT

BOLT - special (Late production), used on models with draft-o-matic

2шт.

30

D30717

WASHER

- cone, 15 degrees, used on models with draft-o-matic

2шт.

31

D31496

SPECIAL NUT

NUT - wrench and hammer (Early production) Use with D32520, used on models with draft-o-matic

2шт.

32

25-1620

NUT,1 1/4"-7, G5, Hvy

- hex. (1-1/4" - 7 NC) Intermediate production (If used), used on models with draft-o-matic

2шт.

25-1220

SLOTTED NUT,1 1/4"-12, G5

NUT - hex., slotted (1-1/4" - 7 NC) Use with D37615, used on models with draft-o-matic

2шт.

33

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), , Used on models with draft-o-matic 1/4" x 2 1/2"

2шт.

34

D31496

SPECIAL NUT

NUT - wrench and hammer, used on models with draft-o-matic

2шт.

35

D30717

WASHER

- cone, 15 degrees, used on models with draft-o-matic

2шт.

36

D30716

BOLT

- special, used on models with draft-o-matic

2шт.

37

D31718

LINK - transport, R.H., used on models with draft-o-matic

1шт.

38

D31720

PIPE

LINK - transport, L.H., used on models with draft-o-matic

1шт.
