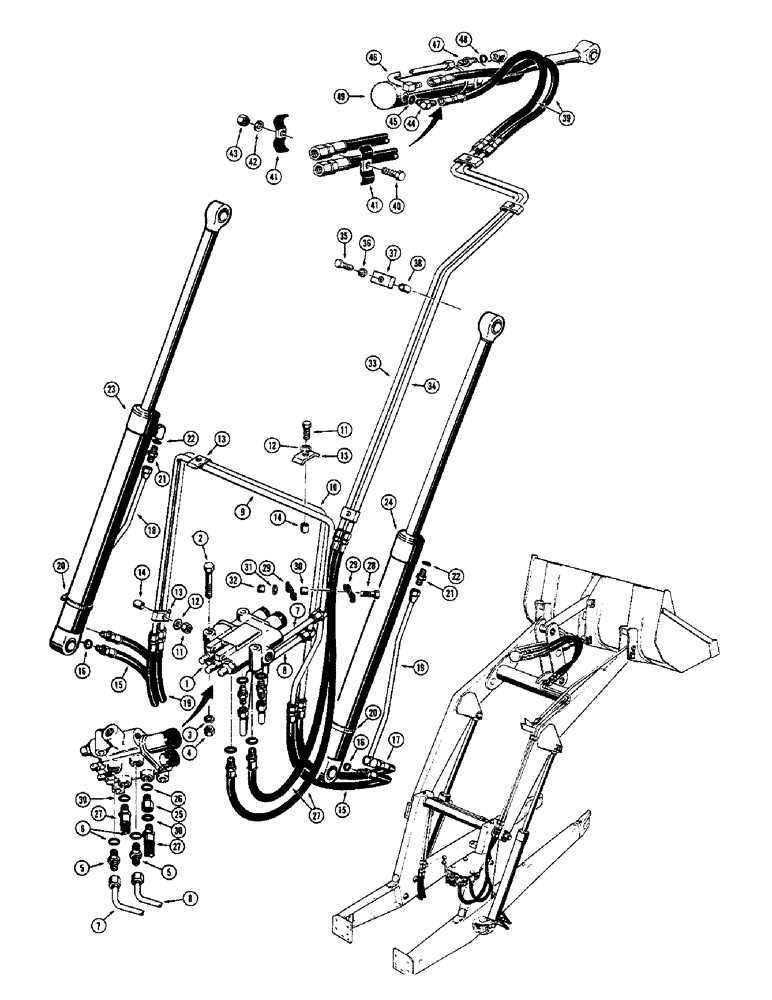

Запчасти Case 23 (024) - LOADER LIFT AND DUMP HYDRAULICS, LATE PRODUCTION

1

D28489

VALVE

- loader control, 2 spool (Parts list Figure 74)

1шт.

2

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

5

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, lift cylinder hydraulics

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Lift cylinder hydraulics

1шт.

7

D37645

TUBE ASSY.

TUBE - valve to lift cylinder, closed end, hydraulics

1шт.

8

D37643

TUBE - valve to lift cylinder, rod end, hydraulics

1шт.

9

D36854

TUBE

- crossover, valve to lift cylinder, closed end, hydraulics

1шт.

10

D36851

TUBE

- crossover, valve to lift cylinder, rod end, hydraulics

1шт.

11

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4", lift cylinder hydraulics

3шт.

12

92-5

LOCK WASHER,5/16"

lift cylinder hydraulics 5/16"

3шт.

13

R17319

CLAMP

- tube, lift cylinder hydraulics

3шт.

14

D33552

BUSHING

SPACER - clamp, lift cylinder hydraulics

3шт.

15

D30533

HOSE

- tube to lift cylinder, closed end port (26" long), hydraulics

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Lift cylinder hydraulics

1шт.

17

D30541

HOSE

- tube to lift cylinder, rod end port (27-1/8" long), hydraulics

2шт.

18

D31459

TUBE

- hose to L.H. lift cylinder rod end port, hydraulics

1шт.

19

D31460

TUBE

- hose to R.H. lift cylinder rod end port, hydraulics

1шт.

20

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - tube to cylinder, lift, hydraulics

2шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, lift cylinder hydraulics

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Lift cylinder hydraulics

1шт.

23

D33441

CYLINDER - hydraulic, L.H. lift (2-1/2" I.D. x 31" stroke) Parts list Figure 56, cylinder

1шт.

24

D33440

CYLINDER - hydraulic, R.H. lift (2-1/2" I.D. x 20" stroke) Parts list Figure 56, cylinder

1шт.

25

D36750

RESTRICTOR - dump, flow control, loader, hydraulics

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Loader dump hydraulics

1шт.

27

D33583

FLEXIBLE HOSE

HOSE - valve to dump cylinder (44" long), loader, hydraulics

2шт.

28

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Loader dump hydraulics Hex, 5/16"-18 x 2", G5

2шт.

29

D33316

CLAMP

- hose, loader dump hydraulics

4шт.

30

D33554

BUSHING

SPACER - clamp, loader dump hydraulics

2шт.

31

195-21

WASHER,5/16"

- flat (), Loader dump hydraulics 5/16"

2шт.

32

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), loader dump hydraulics

2шт.

33

D35467

TUBE - hose to dump cylinder, closed end, loader, hydraulics

1шт.

34

D35469

TUBE

- hose to dump cylinder, rod end, loader, hydraulics

1шт.

35

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Loader dump hydraulics Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

36

92-5

LOCK WASHER,5/16"

loader dump hydraulics 5/16"

4шт.

37

R17319

CLAMP

- tube, loader dump hydraulics

4шт.

38

D33551

BUSHING

SPACER - clamp, loader dump hydraulics

4шт.

39

D33581

HOSE ASSY.

HOSE - to dump cylinder (35" long), loader, hydraulics

2шт.

40

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Loader dump hydraulics Hex, 5/16"-18 x 2", G5

1шт.

41

D33316

CLAMP

- hose, loader dump hydraulics

2шт.

42

195-21

WASHER,5/16"

- flat (), Loader dump hydraulics 5/16"

1шт.

43

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), loader dump hydraulics

1шт.

44

D25667

ELBOW

- adjustable, 90 degrees, loader dump hydraulics

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Loader dump hydraulics

1шт.

46

D33569

TUBE

- dump cylinder rod end port, loader, hydraulics

1шт.

47

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight male, loader dump hydraulics

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Loader dump hydraulics

1шт.

49

D36751

CYLINDER - hydraulic, dump (3" I.D. x 20" stroke) Parts list Figure 54

1шт.
