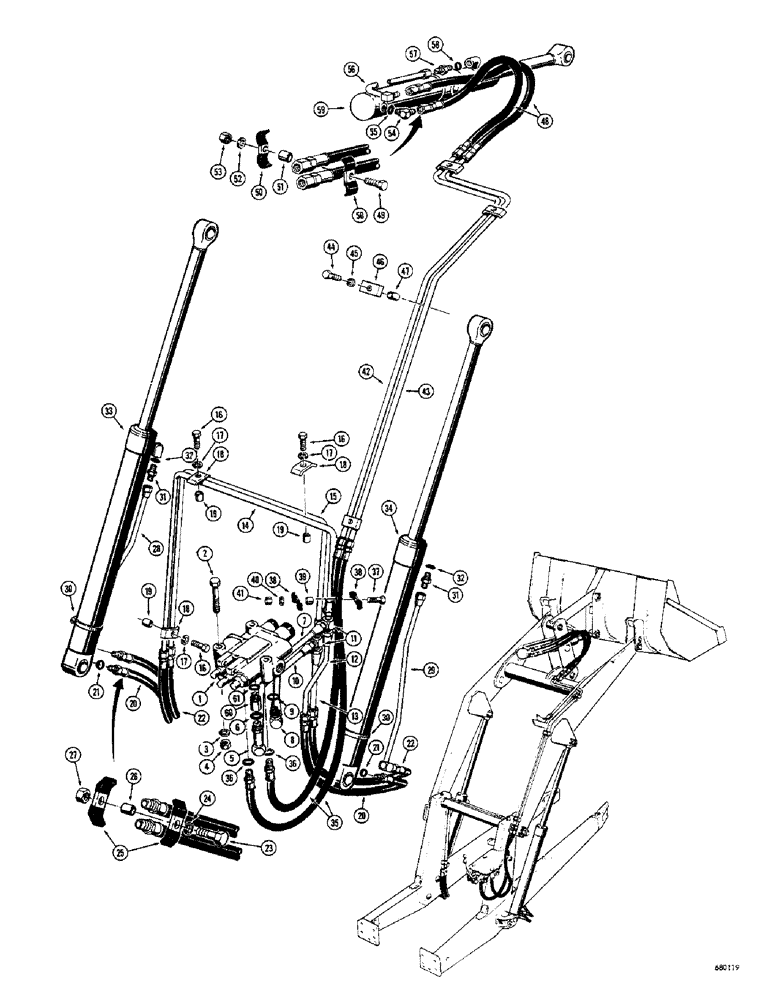

Запчасти Case 23 (020) - LOADER LIFT AND DUMP HYDRAULICS, EARLY PRODUCTION

1

D28489

VALVE

- loader control, 2 spool (Parts list Figure 074)

1шт.

2

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

5

D25136

FITTING

ELBOW - 90 degrees, lift cylinder hydraulics

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Lift cylinder hydraulics

1шт.

7

D33575

TUBE - valve to lift cylinder, closed end, hydraulics

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degrees, lift cylinders hydraulics

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Lift cylinder hydraulics

1шт.

10

D33577

TUBE - valve to lift cylinder, rod end, hydraulics

1шт.

11

218-595

TEE,7/8"-14, 37 Degree

- tube, lift cylinder hydraulics

2шт.

12

NLS

NO LONGER SERVICED

- from tee to R.H. cylinder closed end, lift, hydraulics

1шт.

13

D31356

TUBE

- from tee to R.H. cylinder, rod end, lift, hydraulics

1шт.

14

D30565

TUBE

- crossover, to L.H. lift cylinder (Closed end), hydraulics

1шт.

15

D30531

TUBE ASSY.

TUBE - crossover, to L.H. lift cylinder (Rod end), hydraulics

1шт.

16

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4", lift cylinder hydraulics

3шт.

17

92-5

LOCK WASHER,5/16"

lift cylinder hydraulics 5/16"

3шт.

18

32978

PLATE ASSY.

CLAMP - tube, lift cylinder hydraulics

3шт.

19

D33552

BUSHING

SPACER - tube clamp, lift cylinder hydraulics

3шт.

20

D30533

HOSE

- tube to lift cylinder, closed end port (26" long), hydraulics

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Lift cylinder hydraulics

1шт.

22

D30541

HOSE

- tube to lift cylinder, rod end port (27-1/8" long), hydraulics

2шт.

23

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Lift cylinder hydraulics Hex, 5/16"-18 x 2", G5

2шт.

24

92-5

LOCK WASHER,5/16"

lift cylinder hydraulics 5/16"

2шт.

25

D33316

CLAMP

- hose, lift cylinder hydraulics

4шт.

26

D33554

BUSHING

SPACER - clamp, lift cylinder hydraulics

4шт.

27

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), lift cylinder hydraulics

2шт.

28

D31459

TUBE

- hose to L.H. lift cylinder, rod end port, hydraulics

1шт.

29

D31460

TUBE

- hose to R.H. lift cylinder, rod end port, hydraulics

1шт.

30

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - tube to cylinder, lift, hydraulics

2шт.

31

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight male, lift cylinder hydraulics

2шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Lift cylinder hydraulics

1шт.

33

D33441

CYLINDER - hydraulic, lift L.H. (2-1/2" I.D. x 31" stroke) Parts list Figure 056

1шт.

34

D33440

CYLINDER - hydraulic, lift R.H. (2-1/2" I.D. x 31" stroke) Parts list Figure 056

1шт.

35

D33583

FLEXIBLE HOSE

HOSE - valve to dump cylinder, loader, hydraulics

2шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Loader dump hydraulics

1шт.

37

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Loader dump hydraulics Hex, 5/16"-18 x 2", G5

2шт.

38

D33316

CLAMP

- hose, loader dump hydraulics

4шт.

39

D33554

BUSHING

SPACER - clamp, loader dump hydraulics

2шт.

40

92-5

LOCK WASHER,5/16"

loader dump hydraulics 5/16"

2шт.

41

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), loader dump hydraulics

2шт.

42

D33571

TUBE - valve to dump cylinder, closed end, loader, hydraulics

1шт.

43

D33573

TUBE - valve to dump cylinder, rod end, loader, hydraulics

1шт.

44

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Loader dump hydraulics Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

45

92-5

LOCK WASHER,5/16"

loader dump hydraulics 5/16"

4шт.

46

32978

PLATE ASSY.

CLAMP - tubes to lift arm, loader dump hydraulics

4шт.

47

D33551

BUSHING

SPACER - clamp, loader lift and dump hydraulics (early production)

4шт.

48

D33581

HOSE ASSY.

HOSE - valve to dump cylinder (35" long), loader lift and hydraulics (early production)

2шт.

49

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Loader lift and dump hydraulics (Early production) Hex, 5/16"-18 x 2", G5

1шт.

50

D33316

CLAMP

- hose, loader lift and dump hydraulics (early production)

2шт.

51

D33554

BUSHING

SPACER - clamp, loader lift and dump hydraulics (early production)

1шт.

52

92-5

LOCK WASHER,5/16"

loader lift and dump hydraulics (early production) 5/16"

1шт.

53

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), loader lift and dump hydraulics (early production)

1шт.

54

D25667

ELBOW

- adjustable, 90 degrees, loader lift and dump hydraulics (early production)

1шт.

55

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Loader lift and dump hydraulics (early production)

1шт.

56

D33569

TUBE

- dump cylinder, rod end, loader lift and hydraulics (early production)

1шт.

57

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- straight male, loader lift and dump hydraulics (early production) 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Loader lift and dump hydraulics (early production)

1шт.

59

D33421

CYLINDER - hydraulic, dump (3" I.D. x 20" stroke) When stock is exhausted use D36751 See Ref. 49, Figure 024, loader lift (early production)

1шт.

60

D36750

RESTRICTOR - dump, flow control, loader lift and hydraulics (early production)

1шт.

61

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Loader lift and dump hydraulics (early production)

1шт.
