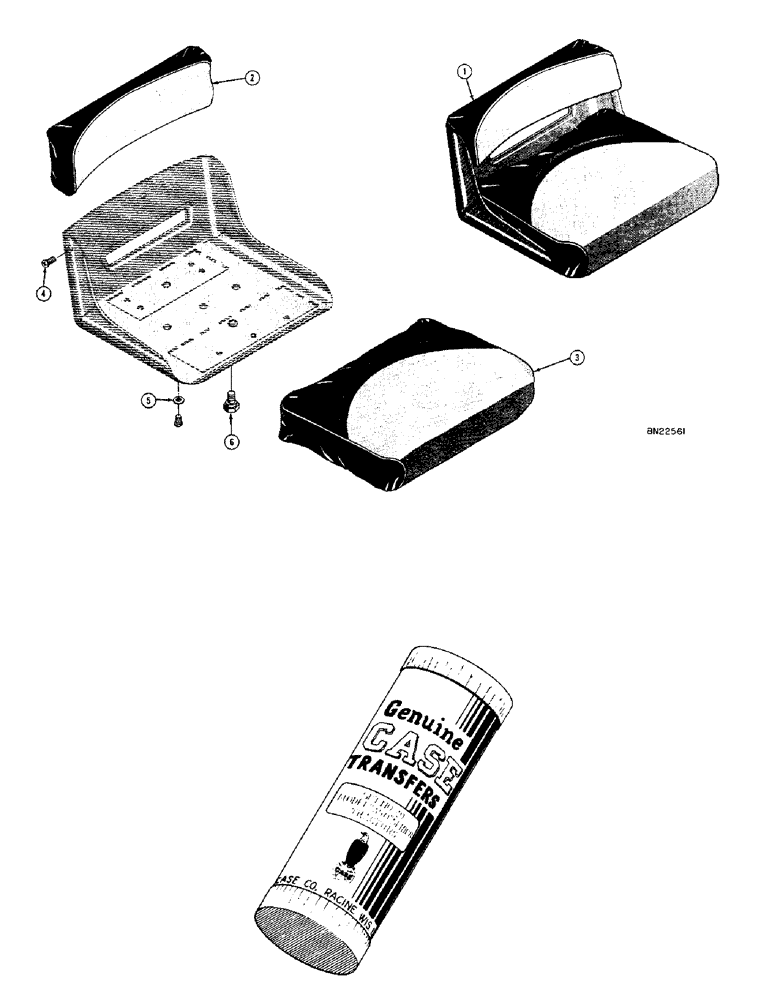

Запчасти Case 22 (16) - DELUXE SEAT (OPTIONAL)

1

G45408

SEAT - complete (Desert sunset shell and desert sunset and black cushions), Includes: Ref. 2 - 5

1шт.

1

D28501

SEAT - complete (Yellow shell and silver and black cushions), Includes: Ref. 2 - 5

1шт.

1

D29157

X

SEAT - complete (Desert sunset shell and silver and black cushions), Includes: Ref. 2 - 5

1шт.

2

A22842

X

BACKREST - seat (Desert sunset and black)

1шт.

2

D28821

X

BACKREST - (Silver and black)

1шт.

3

A22843

X

CUSHION - seat (Desert sunset and black)

1шт.

3

D28822

X

CUSHION - seat (Silver and black)

1шт.

4

173-213

SCREW,Phil Rnd Hd, 1/4" - 20 x 1/2"

- machine, zinc plated round head Phillips (1/4" - 20 NC x 1/2")

5шт.

5

195-518

WASHER,1/4", SAE

- plain (1/4")

2шт.

6

G49092

BOLT - shoulder, seat mounting

1шт.

D28924

KIT

- decal, Model "22" Loader (Before loader serial no. 4065701)

1шт.

D29640

KIT - decal, Model "22" Loader (Loader serial no. 4065701 and after)

1шт.

D28923

KIT - decal, Model "22" Backhoe (Before backhoe serial no. 4065701)

1шт.

D29641

KIT

- decal, Model "22" Backhoe (Backhoe serial no. 4065701 and after)

1шт.

B15918

KIT

- decal, Model "440" (Gas) Wheel tractor (Before serial no. 8191427)

1шт.

B15919

KIT

- decal, Model "430" (Diesel) Wheel tractor (Before serial no. 8191427)

1шт.

D31446

KIT

- decal, Model "430" (Gas or Diesel) Wheel tractor serial no. 8191427 and after

1шт.
