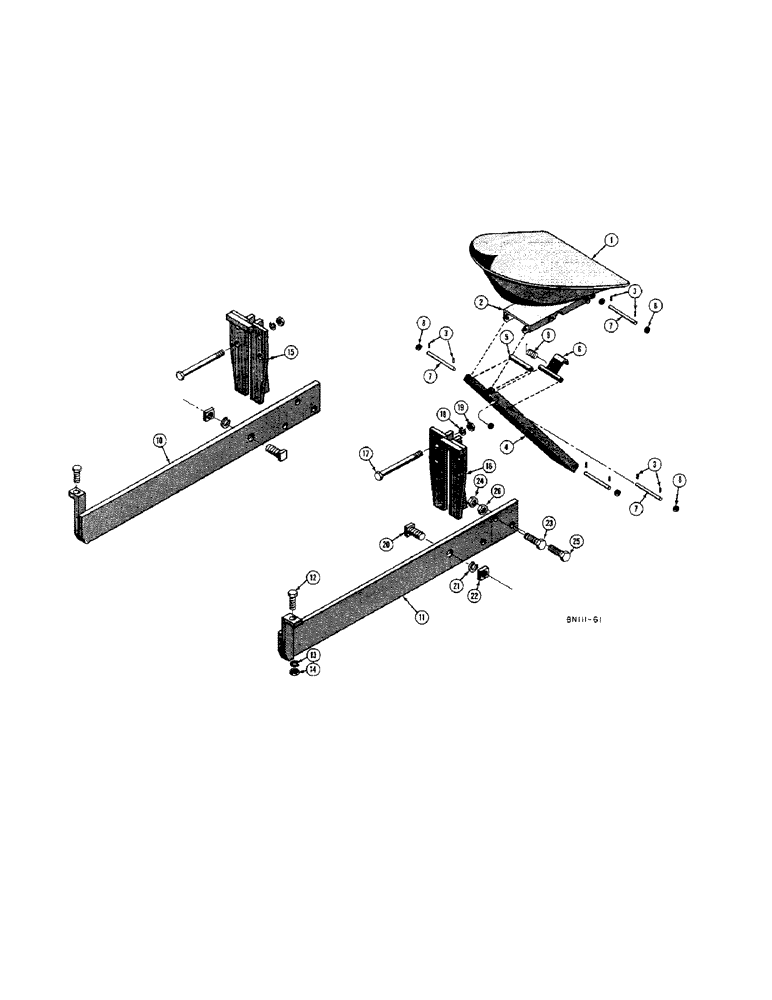

Запчасти Case 22 (14) - TRACTOR MODIFICATION PARTS, BEFORE BACKHOE SERIAL NO. 4065701

1

G13038

SEAT - includes guide and lock assembly

1шт.

2

G13378

CHANNEL - seat mounting

1шт.

3

138-41

LOCK PIN,3/32" x 3/4", Slotted

Pin, , 38272 rod 3/32" x 3/4", Slotted

8шт.

4

38251

BRACE - seat

1шт.

5

38269

SPACER - seat brace

1шт.

6

38270

KNIFE

LOCK - seat

1шт.

7

38272

ROD - seat and brace

4шт.

8

195-21

WASHER,5/16"

plain (11/32" I.D. x 11/16" O.D.) 5/16"

8шт.

9

D25814

SPRING - seat lock

1шт.

10

D21867

ARM - support, R.H.

1шт.

11

D21868

ARM - support, L.H.

1шт.

12

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

14

25-1012

NUT,3/4"-10, G5

2шт.

15

D23101

BRACKET - support arm, R.H.

1шт.

16

D23102

BRACKET - support arm, L.H.

1шт.

17

13-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

6шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

19

25-1010

NUT,5/8"-11, G5

6шт.

20

17-1064

BOLT - regular square head (1-1/4" - 7 NC x 4")

2шт.

21

92-20

WASHER,1 1/4"

LOCK, 1 1/4"

2шт.

22

25-2220

NUT - square (1-1/4" - 7 NC) Sq, 1 1/4"-7

2шт.

23

D23616

BOLT (SPREADER)

BOLT - body fit (Special)

4шт.

24

25-1614

NUT,7/8"-9, G5, Hvy

- hex. (7/8" - 9 NC)

4шт.

25

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

26

25-1012

NUT,3/4"-10, G5

2шт.
