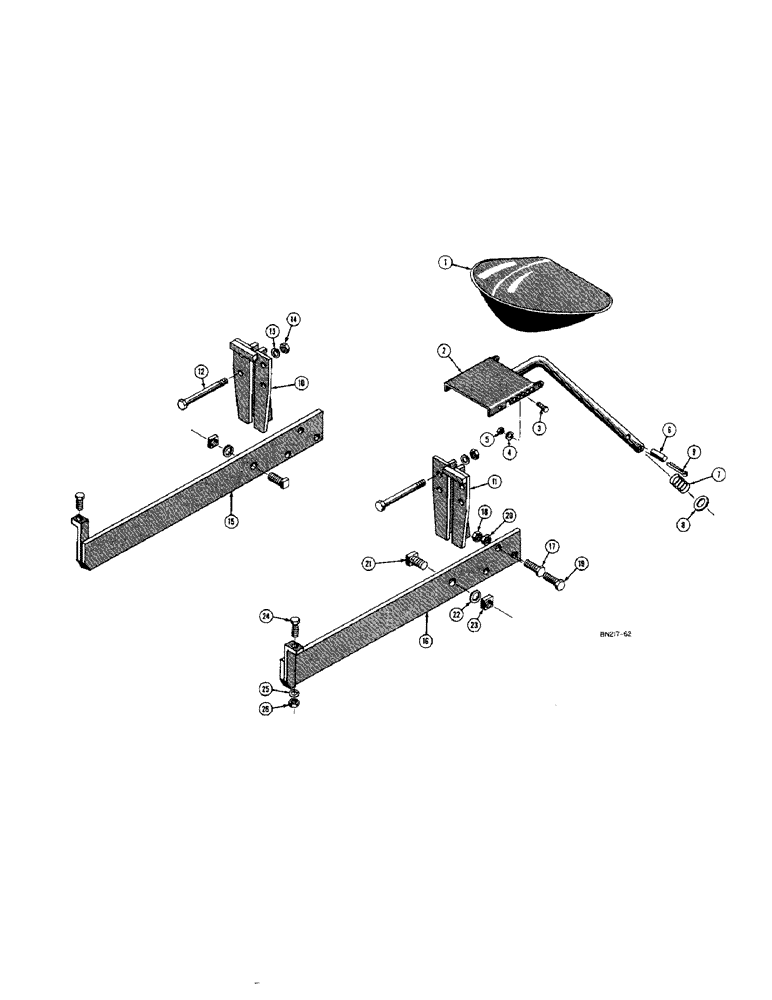

Запчасти Case 22 (14[1]) - TRACTOR MODIFICATION PARTS BACKHOE SERIAL NO. 4065701 AND AFTER

1

G13038

SEAT - includes guide and lock assembly

1шт.

2

D25693

ROD - seat support

1шт.

3

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

25-104

NUT,1/4"-20, G5

1шт.

6

138-210

LOCK PIN,1/2" x 3", Slotted

Pin, 1/2" x 3", Slotted

1шт.

7

D25773

SPRING

- seat

1шт.

8

O124GR

WASHER

- seat mounting

1шт.

9

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

10

D23101

BRACKET - support arm, R.H.

1шт.

11

D23102

BRACKET - support arm, L.H.

1шт.

12

13-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

6шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

14

25-1010

NUT,5/8"-11, G5

6шт.

15

D21867

ARM - support, R.H.

1шт.

16

D21868

ARM - support, L.H.

1шт.

17

D23616

BOLT (SPREADER)

BOLT - body fit (Special)

4шт.

18

25-1614

NUT,7/8"-9, G5, Hvy

- hex. (7/8" - 9 NC)

4шт.

19

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

20

25-1012

NUT,3/4"-10, G5

2шт.

21

17-2064

BOLT - regular square head (1-1/4" - 7 NC x 4")

2шт.

22

92-20

WASHER,1 1/4"

LOCK, 1 1/4"

2шт.

23

25-2220

NUT - regular square (1-1/4" - 7 NC) Sq, 1 1/4"-7

2шт.

24

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

25

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

26

25-1012

NUT,3/4"-10, G5

2шт.
