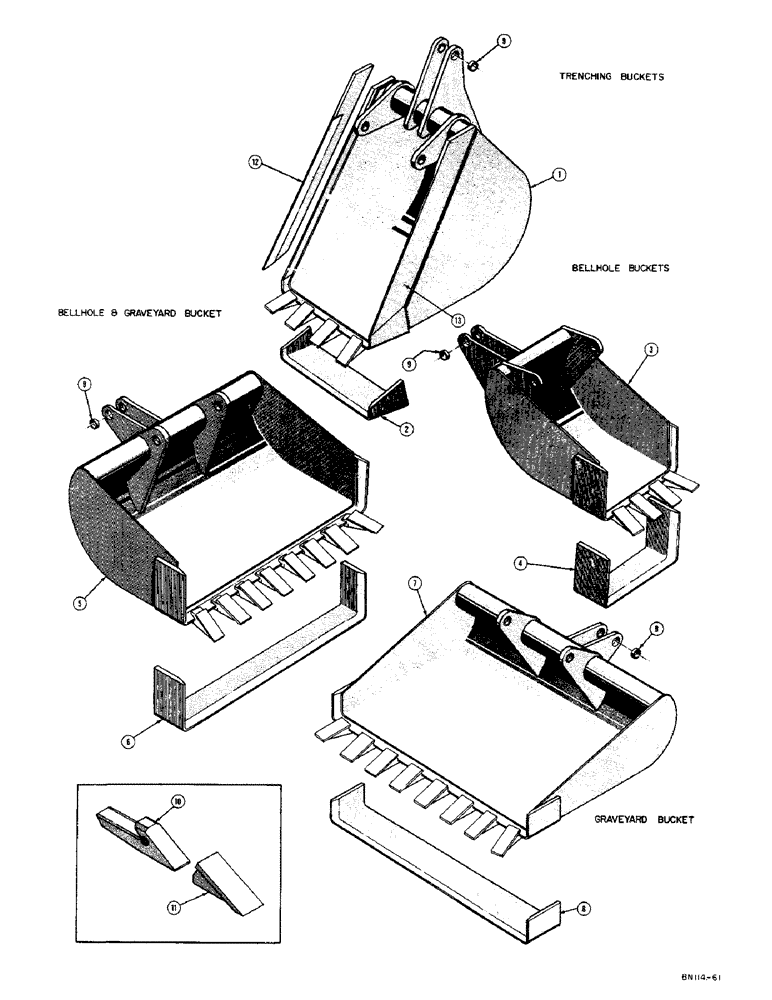

Запчасти Case 22 (12) - BACKHOE BUCKETS (OPTIONAL EQUIPMENT), TRENCHING BUCKETS (MACHINERY ITEMS)

1

D29355

BUCKET - backhoe, trenching (12 inch) Machinery item, Includes: Ref. 2

1шт.

2

D23227

EDGE

BLADE - cutting, center

1шт.

1

D23081

BUCKET - backhoe, trenching (18 inch) Machinery item, Includes: Ref. 2

1шт.

2

D23226

BLADE - cutting, center

1шт.

1

D21607

BUCKET - backhoe, trenching (24 inch) Machinery item, Includes: Ref. 2

1шт.

2

35277

KNIFE

BLADE - cutting, center

1шт.

1

D24961

BUCKET - backhoe, trenching (30 inch) Machinery item, Includes: Ref. 2

1шт.

2

35294

BLADE - cutting, center

1шт.

3

D23089

BUCKET - backhoe, bellhoe (12 inch) Machinery item, Includes: Ref. 4

1шт.

4

D23107

BLADE - cutting

1шт.

3

37774

BUCKET - backhoe, bellhoe (16 inch) Machinery item, Includes: Ref. 4

1шт.

4

37696

BLADE - cutting

1шт.

3

37747

BUCKET - backhoe, bellhoe (30 inch) Machinery item, Includes: Ref. 4

1шт.

4

37448

BLADE - cutting

1шт.

5

D23088

BUCKET - backhoe, combination bellhole and graveyard (36 inch) Machinery item, bucket, Includes: Ref. 6

1шт.

6

D20453

BLADE - cutting, combinatin bellhoe and graveyard bucket (machinery item)

1шт.

7

37934

LEVER

BUCKET - backhoe, graveyard (38 inch) Machinery item, Includes: Ref. 8

1шт.

8

37908

BLADE - cutting, graveyard bucket (machinery item)

1шт.

9

D23243

BUSHING

- bucket, early production (1-1/2" O.D.) See D29498, parts

4шт.

9

D29498

BUSHING

- bucket, late production (1-5/8" O.D.) See D23243, parts

4шт.

10

D26368

SUPPORT

SHANK - tooth, parts for buckets

3-8шт.

11

D27748

TOOTH

POINT - tooth, parts for buckets

3-8шт.

12

D21605

EDGE, CUTTING

BLADE - cutting, side (L.H.) All trenching buckets except D29355, parts

1шт.

12

D29415

BLADE - cutting, side (L.H.) D29355 bucket only, parts

1шт.

13

D21606

EDGE, CUTTING

BLADE - cutting, side (R.H.) All trenching buckets except D29355, parts

1шт.

13

D29416

BLADE - cutting, side (R.H.) D29355 bucket only, parts

1шт.
