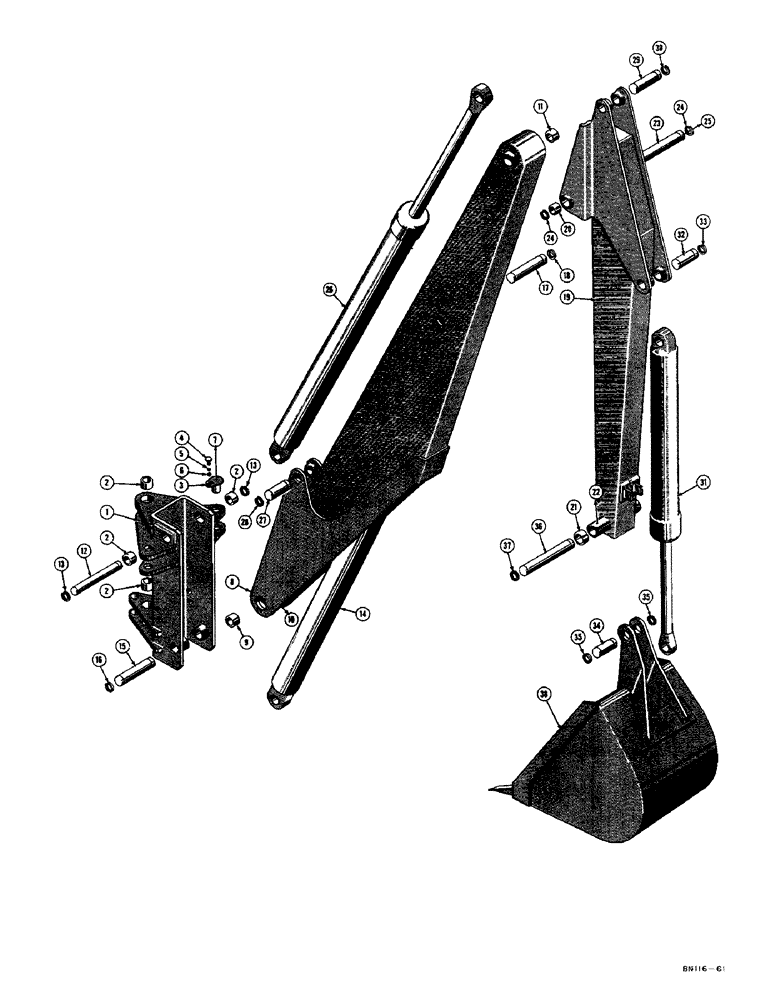

Запчасти Case 22 (10) - TOWER, BOOM, DIPPER ARM, AND BUCKETS

1

D27702

TOWER - swing, Includes: Ref. 2

1шт.

2

D23203

BUSHING

- tower and boom pivot

6шт.

3

D21621

PIN - pivot, swing cylinder at trunnion

4шт.

4

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1"

4шт.

5

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

6

D23740

BUSHING

- D21621 lockhead pin

4шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

4шт.

8

D21508

BOOM - backhoe, Includes: Ref. 9 - 11

1шт.

9

D23870

BUSHING

- boom pivot pin

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

11

D21903

BUSHING

- dipper arm pivot pin

2шт.

12

D26113

PIN - pivot, boom, Includes: Ref. 13

1шт.

13

D26919

SNAP RING,#200, Ext

Ring, Snap, , D26113 pin #200, Ext

2шт.

14

D21580

CYLINDER - boom, hydraulic (With tie rods) See Figure 46 for breakdown (When stock is exhausted use D28342 and refs listed under ref 65 Figure 32

1шт.

D28342

CYLINDER - boom, hydraulic (3" dia.) Without tie rods (See Figure 48 for breakdown) Used on early production units (See D32167)

1шт.

Do not replace a 3" dia. boom cylinder with a 3-1/2" dia. boom cylinder.

1шт.

D32167

CYLINDER

- boom, hydraulic (3-1/2" dia.) See Figure 48 for breakdown (Used on early production units) See D28342

1шт.

Do not replace a 3" dia. boom cylinder with a 3-1/2" dia. boom cylinder.

1шт.

15

D26106

PIN - pivot, boom cylinder (Lower), Includes: Ref. 16

1шт.

16

D26918

SNAP RING,#125, Ext

Ring, Snap, , D26106 pin #125, Ext

2шт.

17

D26104

PIN

- pivot, boom cylinder (Upper), Includes: Ref. 18

1шт.

18

D26918

SNAP RING,#125, Ext

Ring, Snap, , D26104 pin, Includes: Ref. 20 - 22 #125, Ext

2шт.

19

D21769

ARM - dipper

1шт.

20

D20201

BUSHING

- dipper arm, boom pivot pin

2шт.

21

D23444

BUSHING

- dipper arm, bucket pivot pin

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

23

D26111

PIN - pivot, dipper arm to boom, Includes: Ref. 24

1шт.

24

D25279

SNAP RING,M35, Int

- D26111 pin

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

26

D21596

CYLINDER - crowd, hydraulic (With tie rods) See Figure 50 for breakdown (When stock is exhausted use D28314 and refs listed under ref 66 on Figure 32)

1шт.

D28314

CYLINDER ASSY.

CYLINDER - crowd, hydraulic (Without tie rods) See Figure 50 for breakdown

1шт.

27

D26110

X

PIN - pivot, crown cylinder to boom, Includes: Ref. 28

1шт.

28

D25279

SNAP RING,M35, Int

- D26110 pin

2шт.

29

D26112

PIN - pivot, crowd cylinder to dipper arm, Includes: Ref. 30

1шт.

30

D25279

SNAP RING,M35, Int

- D26112 pin

2шт.

31

D21591

CYLINDER - bucket, hydraulic (With tie rods) See Figure 52 for breakdown (When stock is exhausted use D28331 and refs listed under ref 67 on Figure 32)

1шт.

31

D21591

CYLINDER - bucket, hydraulic (With tie rods) See Figure 52 for breakdown (When stock is exhausted use D28331 and refs listed under ref 67 on page 34)

1шт.

D28331

CYLINDER ASSY.

CYLINDER - bucket, hydraulic (Without tie rods) See Figure 52 for breakdown

1шт.

32

D26104

PIN

- pivot, bucket cylinder to dipper arm, Includes: Ref. 33

1шт.

33

D26918

SNAP RING,#125, Ext

Ring, Snap, , D26104 pin #125, Ext

2шт.

34

D26108

PIN - pivot, bucket cylinder to bucket, Includes: Ref. 35

1шт.

35

D26918

SNAP RING,#125, Ext

Ring, Snap, , D26108 pin #125, Ext

2шт.

36

D26107

PIN - pivot, bucket to dipper arm, Includes: Ref. 37

1шт.

37

D26918

SNAP RING,#125, Ext

Ring, Snap, , D26107 pin #125, Ext

2шт.

38

D21607

BUCKET - backhoe, 24" (See figure 12 for other optional buckets)

1шт.
