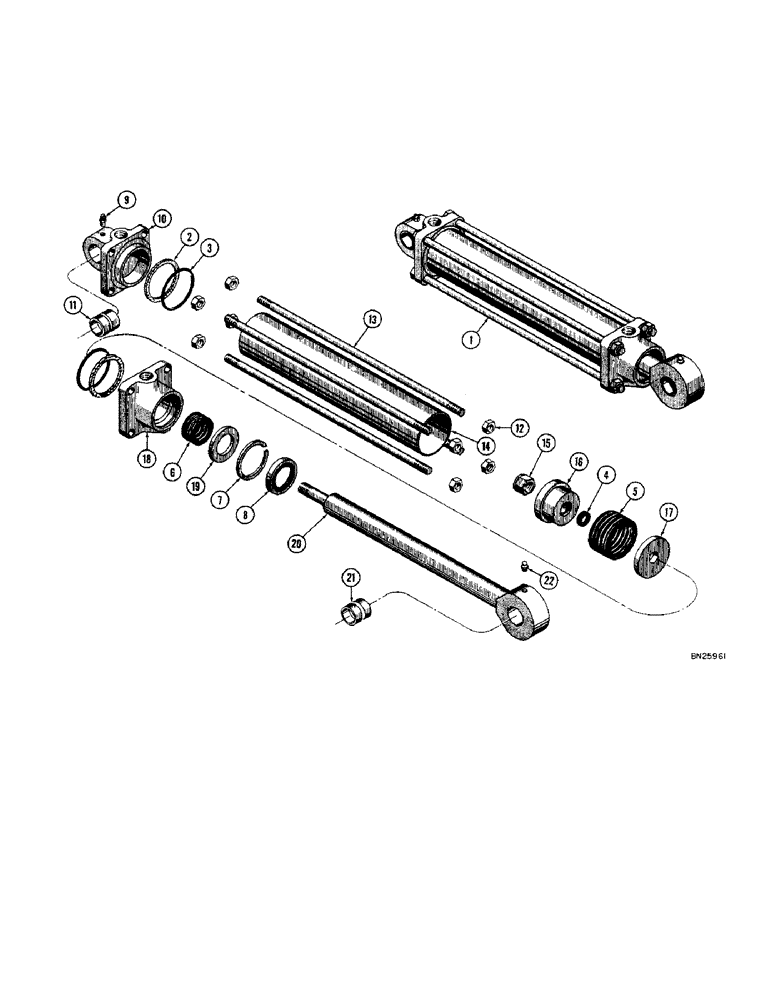

Запчасти Case 22 (52) - D21591 HYDRAULIC BUCKET CYLINDER, D28331 HYDRAULIC BUCKET

1

D21591

CYLINDER - hydraulic bucket (3" I.D. x 26-5/8" stroke), Includes: Ref. 2 - 22

1шт.

D30138

KIT

- cylinder packing, Includes: Ref. 2 - 8

1шт.

2

D24986

RING

- leather backup, end cap seal

2шт.

3

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring, end cap seal

2шт.

4

O3522CK

X

SEAL - "O" Ring, piston rod

1шт.

5

31662

PACKING

- piston

1шт.

6

17577

PACKING

- piston rod

1шт.

7

70742

WASHER

2.50", Int, #250, piston rod

1шт.

8

17583

WIPER SEAL

WIPER - seal, piston rod

1шт.

9

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

10

D20052

END - cylinder, Includes: Ref. 11

1шт.

11

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

12

131-354

LOCK NUT,1/2"-13, GA

NUT - lock (1/2" - 13 NC)

8шт.

13

D21587

ROD - tie

4шт.

14

D21588

TUBE - cylinder

1шт.

15

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.

16

D23735

PISTON

- cylinder

1шт.

17

31661

WASHER

- piston packing

1шт.

18

D25584

CAP

- end

1шт.

19

D25042

WASHER

- piston rod packing

1шт.

20

D23094

ROD - piston (1-1/2" dia.), Includes: Ref. 21

1шт.

21

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod end

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
