Запчасти Case 22 (52[1]) - D28331 HYDRAULIC BUCKET CYLINDER

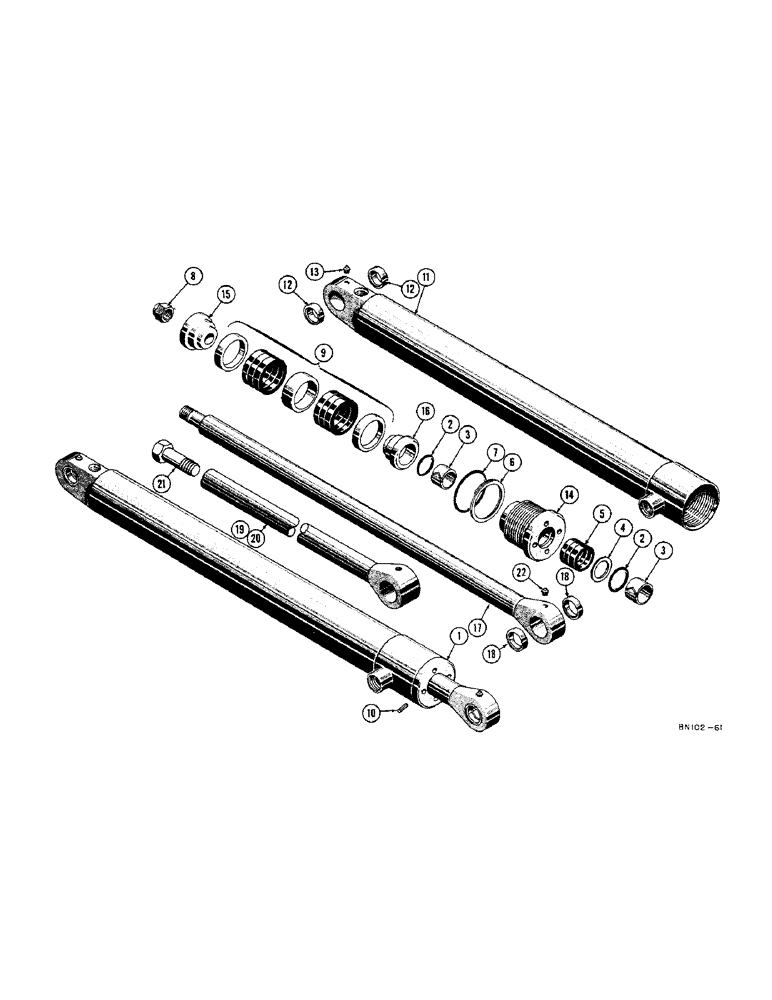

Схема запчастей Case 22 - (52[1]) - D28331 HYDRAULIC BUCKET CYLINDER

Артикул

Название

Примечание

Количество

1

D28331

CYLINDER ASSY.

CYLINDER - hydrualic bucket (3" I.D. x 26-5/8" stroke), Includes: Ref. 2 - 22

1шт.

D30129

X

KIT - cylinder packing, Includes: Ref. 2 - 10

1шт.

2

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper

2шт.

3

D27706

WIPER SEAL

WIPER - piston rod

2шт.

4

D28498

RING

- backup, piston rod seal

1-3шт.

5

D28494

SEAL

- piston rod

1шт.

6

D28049

RING

- backup, gland seal

1шт.

7

O8347AB

X

SEAL - "O" ring, gland

1шт.

8

D23739

LOCK NUT

NUT - hex., lock (3/4" - 16 NF)

1шт.

9

D28374

PACKAGE,SERVICE

PACKING - kit, piston (Includes chevrons and spacers)

1шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

1шт.

11

D28332

TUBE - cylinder, Includes: Ref. 12

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

14

D28048

GLAND

- packing

1шт.

15

D28366

PISTON

- half, rear

1шт.

16

D28365

PISTON

- half, front

1шт.

17

D28330

ROD - piston (1-1/2" dia.) When stock is exhausted use 1 - D32141 rod and 1 - D29306 bolt, Includes: Ref. 18

1шт.

18

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod end

2шт.

19

D32141

ROD ASSY.

ROD - piston (1-1/2" dia.), Includes: Ref. 20

1шт.

20

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod end (Not shown)

2шт.

21

D29306

BOLT

SCREW - cap, special (3/4" - 16 NF x 2-1/2")

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

Выбрано товаров: 23
