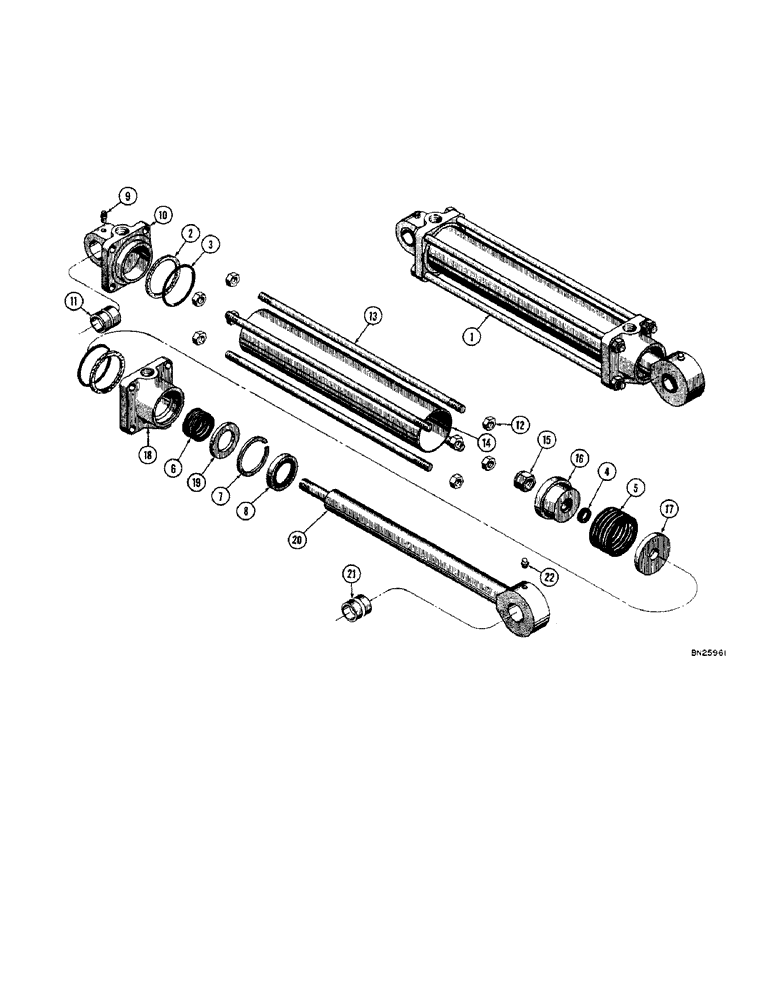

Запчасти Case 22 (50) - D21596 HYDRAULIC CROWD CYLINDER, D28314 HYDRAULIC CROWD

1

D21596

CYLINDER - hydraulic crowd (3-1/2" I.D. x 38-3/8" stroke), Includes: Ref. 2 - 22

1шт.

D30143

KIT

- cylinder packing, Includes: Ref. 2 - 8

1шт.

2

D24987

RING

- leather backup, end and cap seal

2шт.

3

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring, end and cap seal

2шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring, piston

1шт.

5

17578

PACKING

- piston

1шт.

6

17598

PACKING

- piston rod

1шт.

7

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, , seal, piston rod 2.75", Int, #275

1шт.

8

31525

WIPER SEAL

- wiper, piston rod

1шт.

9

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

10

D20054

END - cylinder, Includes: Ref. 11

1шт.

11

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

12

131-354

LOCK NUT,1/2"-13, GA

NUT - lock (1/2" - 13 NC)

8шт.

13

D21594

ROD - tie

4шт.

14

D21595

TUBE - cylinder

1шт.

15

D23688

X

NUT - lock, piston (1" - 14 NF)

1шт.

16

D23736

PISTON - cylinder

1шт.

17

NLS

NO LONGER SERVICED

WASHER - piston packing

1шт.

18

D25588

CAP - end

1шт.

19

D25044

WASHER

- piston rod packing

1шт.

20

D23095

ROD - piston (2" dia.), Includes: Ref. 21

1шт.

21

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod end

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
