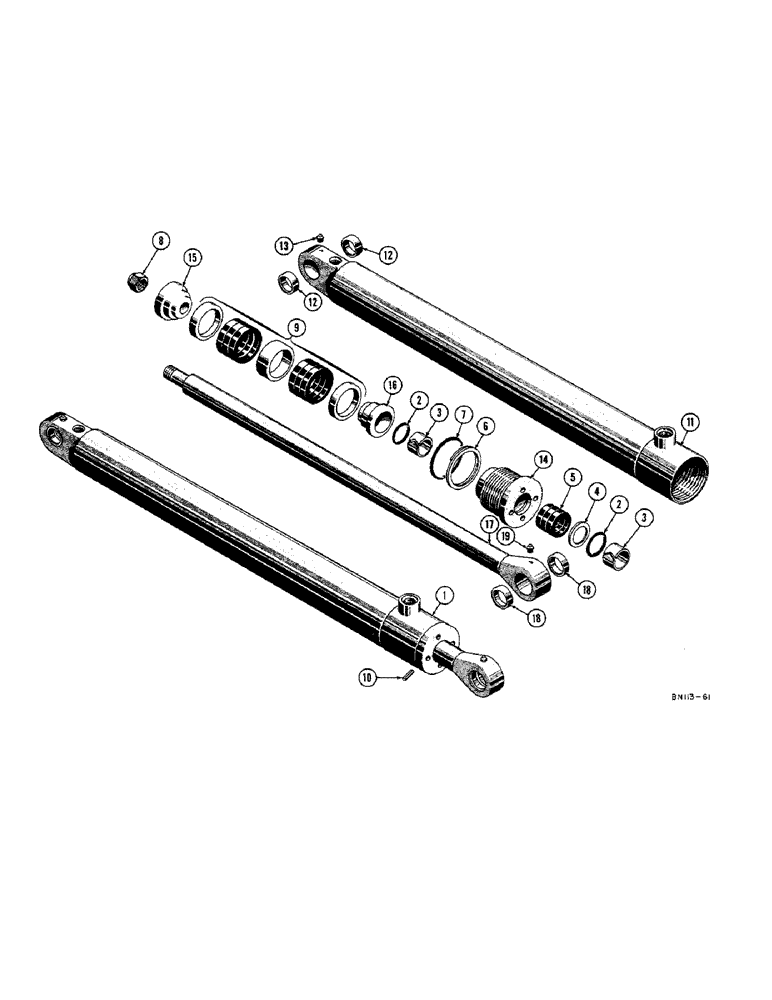

Запчасти Case 22 (50[1]) - D28314 HYDRAULIC CROWD CYLINDER

1

D28314

CYLINDER ASSY.

CYLINDER - hydraulic crowd (3-1/2" I.D. x 38-3/8" stroke), Includes: Ref. 2 - 19

1шт.

D30133

X

KIT - cylinder packing, Includes: Ref. 2 - 10

1шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

3

D27380

SCRAPER RING

WIPER - piston rod

2шт.

4

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod seal

1-3шт.

5

D28496

SEAL - piston rod

1шт.

6

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

7

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

8

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF)

1шт.

9

D28375

PACKING

- kit, piston (Includes chevrons and spacers)

1шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

1шт.

11

D28386

TUBE - cylinder, Includes: Ref. 12

1шт.

12

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

13

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 90 degrees (1/8" NPT)

1шт.

14

D28320

GLAND

- packing

1шт.

15

D28367

PISTON

- half, rear

1шт.

16

D28368

PISTON

- half, front

1шт.

17

D28318

ROD ASSY.

ROD - piston (2" dia.), Includes: Ref. 18

1шт.

18

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod yoke

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
