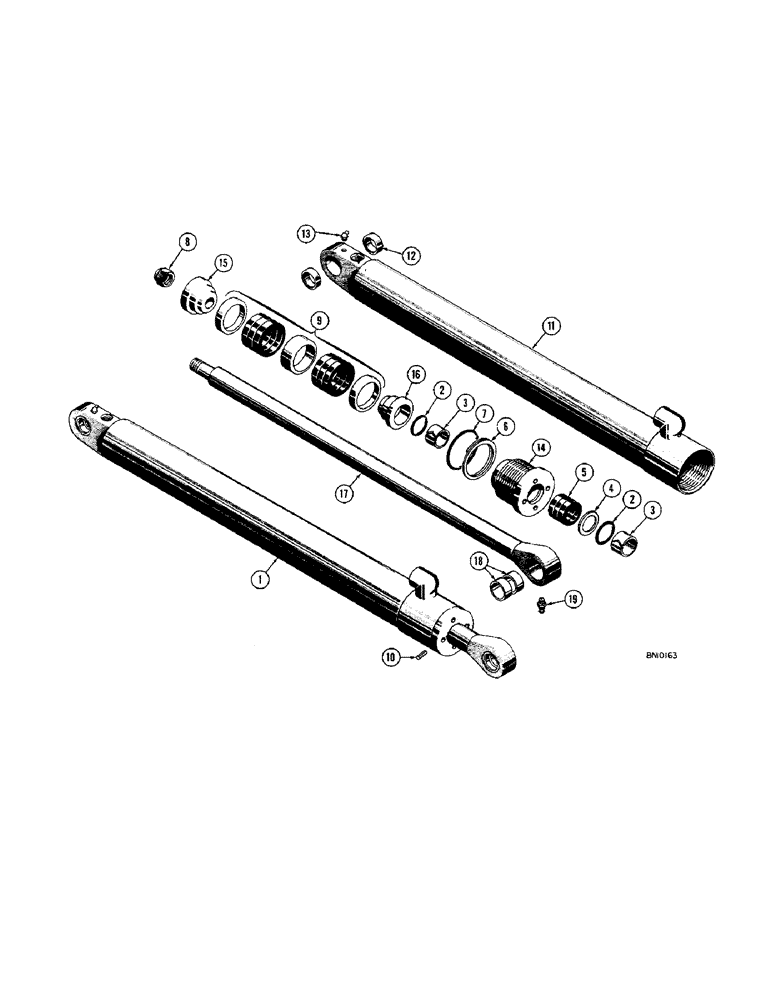

Запчасти Case 22 (48) - D28342 HYDRAULIC BOOM CYLINDER, D32167 HYDRAULIC BOOM

1

D28342

CYLINDER - hydraulic boom (3" I.D. x 31-3/4" stroke), Includes: Ref. 2 - 19

1шт.

D30131

X

KIT - cylinder packing, Includes: Ref. 2 - 10

1шт.

2

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

3

D27432

SHIM

- piston rod

2шт.

4

D28499

RING

- backup, piston rod seal

1-3шт.

5

D28495

PACKING

SEAL - piston rod

1шт.

6

D28049

RING

- backup, gland seal

1шт.

7

O8347AB

X

SEAL - "O" ring, gland

1шт.

8

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF)

1шт.

9

D28374

PACKAGE,SERVICE

PACKING - kit, piston (Includes chevrons and spacers)

1шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

1шт.

11

D28343

TUBE - cylinder, Includes: Ref. 12

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

13

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT)

1шт.

14

D28895

GLAND

- packing

1шт.

15

D28896

PISTON

- half, rear

1шт.

16

D28897

PISTON

- half, front

1шт.

17

D28894

ROD - piston (1-3/4" dia.), Includes: Ref. 18

1шт.

18

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod end

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
