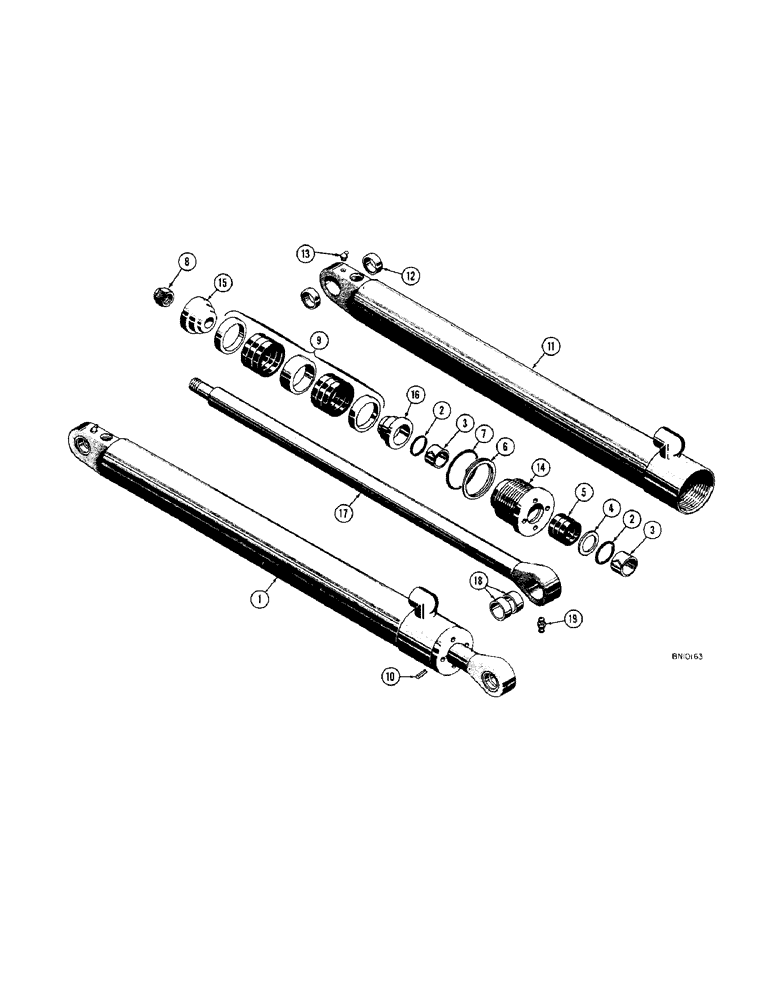

Запчасти Case 22 (48[1]) - D32167 HYDRAULIC BOOM CYLINDER

1

D32167

CYLINDER

- hydraulic boom (3-1/2" I.D. x 31-3/4" stroke), Includes: Ref. 2 - 19

1шт.

D30132

X

KIT - cylinder packing, Includes: Ref. 2 - 10

1шт.

2

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

3

D27432

SHIM

- piston rod

2шт.

4

D28499

RING

- backup, piston rod seal

1-3шт.

5

D28495

PACKING

SEAL - piston rod

1шт.

6

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

7

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, wiper

1шт.

8

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF)

1шт.

9

D28375

PACKING

- kit, piston (Includes chevrons and spacers)

1шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

1шт.

11

D32169

TUBE - cylinder, Includes: Ref. 12

1шт.

12

D332172

BUSHING - cylinder end

2шт.

13

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees, (1/8" NPT)

1шт.

14

D27431

GLAND

- packing

1шт.

15

D28367

PISTON

- half, rear

1шт.

16

D28369

PISTON

- half, front

1шт.

17

D32168

ROD - piston (1-3/4" dia.), Includes: Ref. 18

1шт.

18

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod end

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
