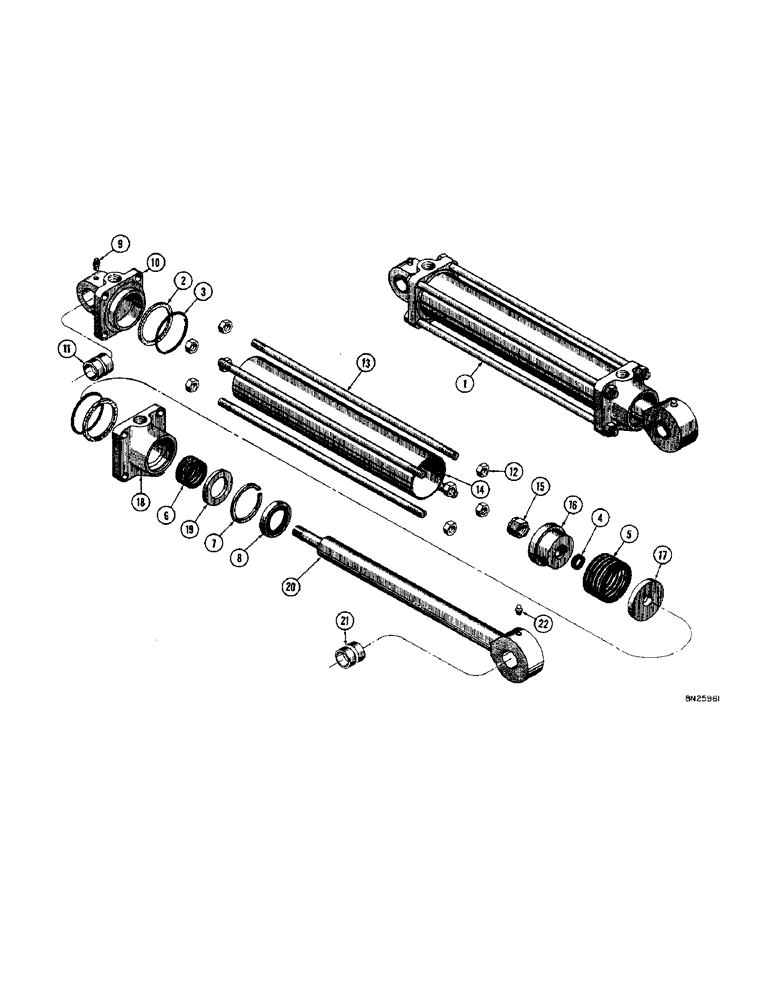

Запчасти Case 22 (46[1]) - D21580 HYDRAULIC BOOM CYLINDER

1

D21580

CYLINDER - hydraulic boom (3" I.D. x 31-3/4" stroke), Includes: Ref. 2 - 22

1шт.

D30140

VALVE

KIT - cylinder packing, Includes: Ref. 2 - 8

1шт.

2

D24986

RING

- leather backup, end and cap seal

2шт.

3

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring, end and cap seal

2шт.

4

O3522CK

X

SEAL - "O" ring, piston rod

1шт.

5

31662

PACKING

- piston

1шт.

6

30568

PACKING

- piston rod

1шт.

7

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

8

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

9

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT)

1шт.

10

D20052

END - cylinder, Includes: Ref. 11

1шт.

11

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end cap

2шт.

12

131-354

LOCK NUT,1/2"-13, GA

NUT - lock (1/2" - 13 NC)

8шт.

13

D21577

ROD - tie

4шт.

14

D21576

TUBE - cylinder

1шт.

15

D23739

LOCK NUT

NUT - lock, piston rod (3/4" - 16 NF)

1шт.

16

D23735

PISTON

- cylinder

1шт.

17

31661

WASHER

- piston packing

1шт.

18

D25587

CAP - cylinder end

1шт.

19

D25043

WASHER

- piston rod packing

1шт.

20

D23096

ROD - piston (1-3/4" dia.), Includes: Ref. 21

1шт.

21

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod end

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
