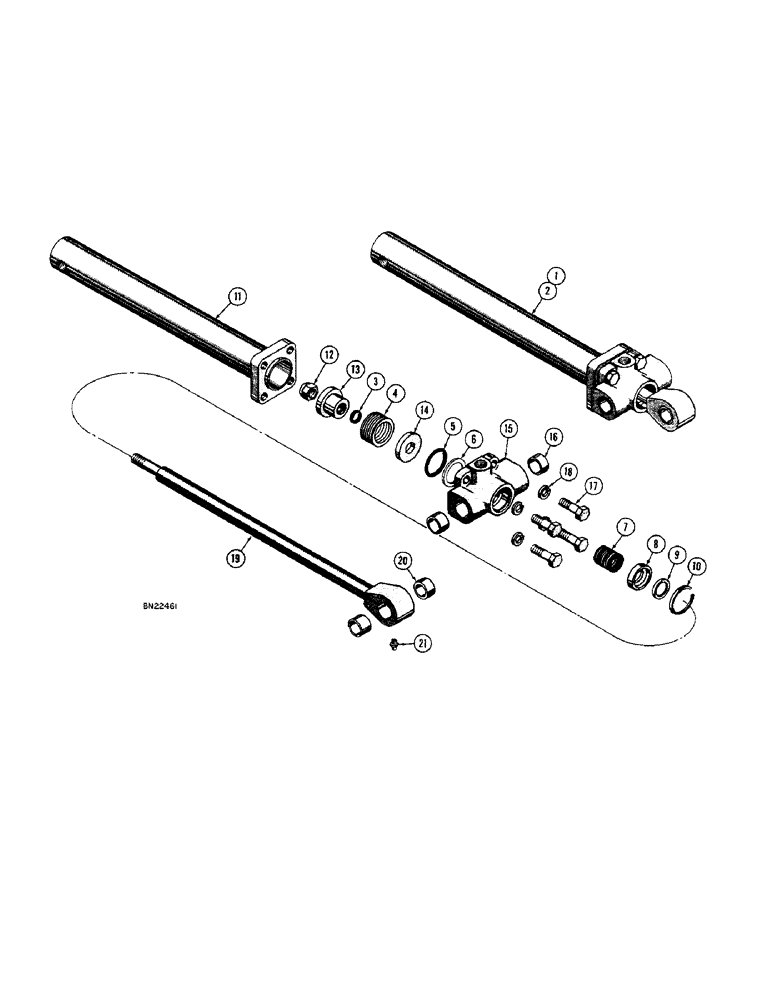

Запчасти Case 22 (44) - D21569 AND D23654 HYDRAULIC SWING CYLINDERS, D28325 AND

1

D21569

CYLINDER - hydraulic swing, R.H. (2-1/2" I.D. x 15-5/8" stroke), Includes: Ref. 3 - 21

1шт.

2

D23654

CYLINDER - hydraulic swing, L.H. (2-1/2" I.D. x 15-5/8" stroke), Includes: Ref. 3 - 21

1шт.

D30135

PACKAGE, REPAIR

KIT - cylinder packing, Includes: Ref. 3 - 10

1шт.

3

O3522CK

X

SEAL - "O" ring, piston

1шт.

4

17598

PACKING

- piston

1шт.

5

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring, end cap

1шт.

6

D24985

RING

- leather backup, end cap seal

1шт.

7

17597

PACKING

- piston rod

1шт.

8

D23933

GLAND

- wiper ring

1шт.

9

D23962

SEAL

- oil, piston rod

1шт.

10

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

11

D21568

TUBE - cylinder

1шт.

12

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.

13

D23738

BLOCK

PISTON - cylinder

1шт.

14

30630

CARTRIDGE

WASHER - piston packing

1шт.

15

D23098

CAP - end, Includes: Ref. 16

1шт.

16

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end cap

2шт.

17

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

D23097

ROD - piston (1-1/4" dia.), Includes: Ref. 20

1шт.

20

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

BUSING - piston rod end

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
