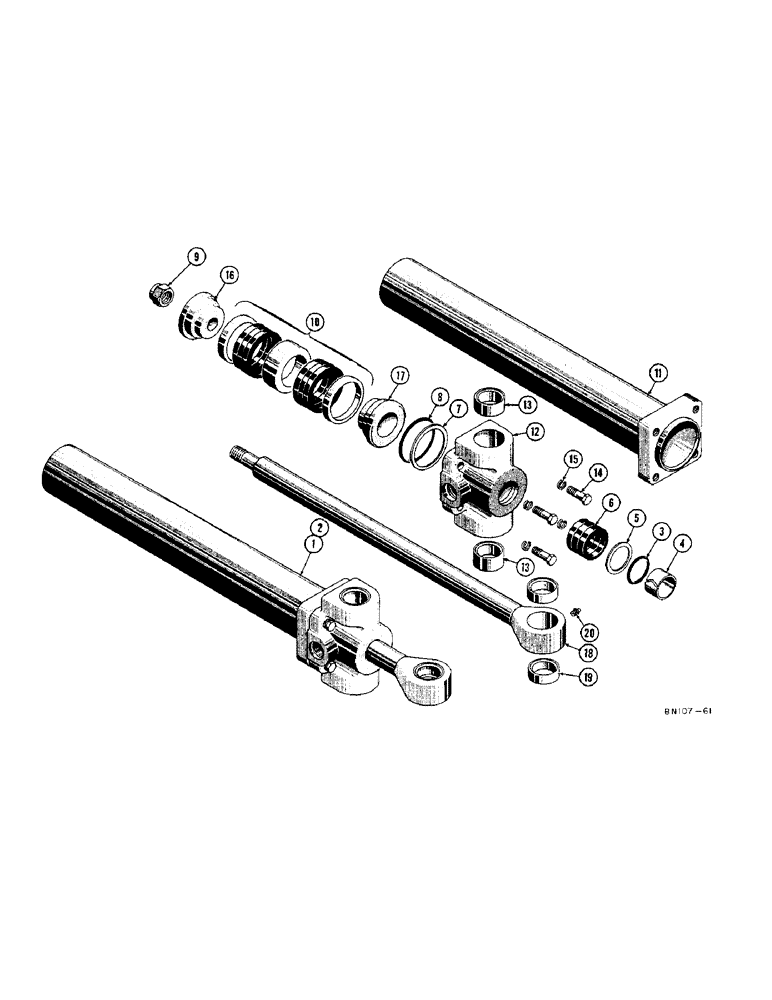

Запчасти Case 22 (44[1]) - D28325 AND D28326 HYDRAULIC SWING CYLINDERS

1

D28325

CYLINDER - hydraulic swing, R.H. (2-1/2" I.D. x 15-11/6" stroke), Includes: Ref. 3 - 20

1шт.

2

D28326

CYLINDER - hydraulic swing, L.H. (2-1/2" I.D. x 15-11/16" stroke), Includes: Ref. 3 - 20

1шт.

D30127

X

KIT - cylinder packing, Includes: Ref. 3 - 10

1шт.

3

O8848AB

X

SEAL - "O" ring, wiper

1шт.

4

D27705

WIPER

- piston rod

1шт.

5

D28497

RING

- backup, piston rod seal

1-3шт.

6

D28493

X

SEAL - piston rod

1шт.

7

D24985

RING

- backup, end cap seal

1шт.

8

86982912

O-RING

SEAL - "O" ring, end cap

1шт.

9

D23739

LOCK NUT

NUT - hex., lock (3/4" - 16 NF)

1шт.

10

D28373

PACKING

- kit, piston (Includes chevrons and spacers)

1шт.

11

D26051

TUBE - cylinder

1шт.

12

D28322

CAP - cylinder end, Includes: Ref. 13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

BUSING - cylinder end cap

2шт.

14

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

NLS

NO LONGER SERVICED

PISTON - half, rear

1шт.

17

D28364

PISTON

- half, front

1шт.

18

D28323

ROD - piston (1-1/4" dia.), Includes: Ref. 19

1шт.

19

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod yoke

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
