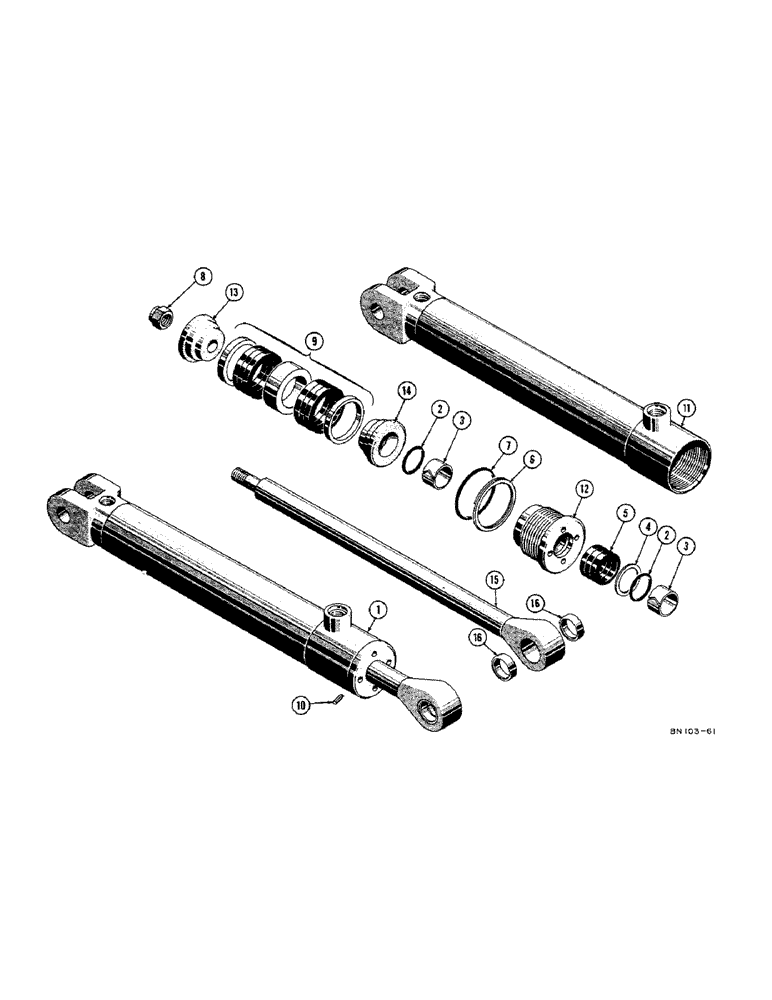

Запчасти Case 22 (42[1]) - D28279 HYDRAULIC STABILIZER CYLINDERS

1

D28279

CYLINDER - hydraulic stabilizer (2-1/2" I.D. x 11" stroke), Includes: Ref. 2 - 16

1шт.

D30126

X

KIT - cylinder packing, Includes: Ref. 2 - 10

1шт.

2

O8848AB

X

SEAL - "O" ring, wiper

2шт.

3

D27705

WIPER

- piston rod

2шт.

4

D28497

RING

- backup, piston rod seal

1-3шт.

5

D28493

X

SEAL - piston rod

1шт.

6

D27856

RING

- backup, gland seal

1шт.

7

O10984AB

X

SEAL - "O" ring, gland

1шт.

8

D23739

LOCK NUT

NUT - hex., lock (3/4" - 16 NF)

1шт.

9

D28373

PACKING

- piston kit (Includes chevrons and spacers)

1шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

1шт.

11

D28282

TUBE - cylinder

1шт.

12

D27854

GLAND

- packing

1шт.

13

D28364

PISTON

- half, rear

1шт.

14

NLS

NO LONGER SERVICED

- half, front

1шт.

15

D28277

ROD - piston (1-1/4" dia.), Includes: Ref. 16

1шт.

16

D30634

BUSHING - piston rod end

2шт.
