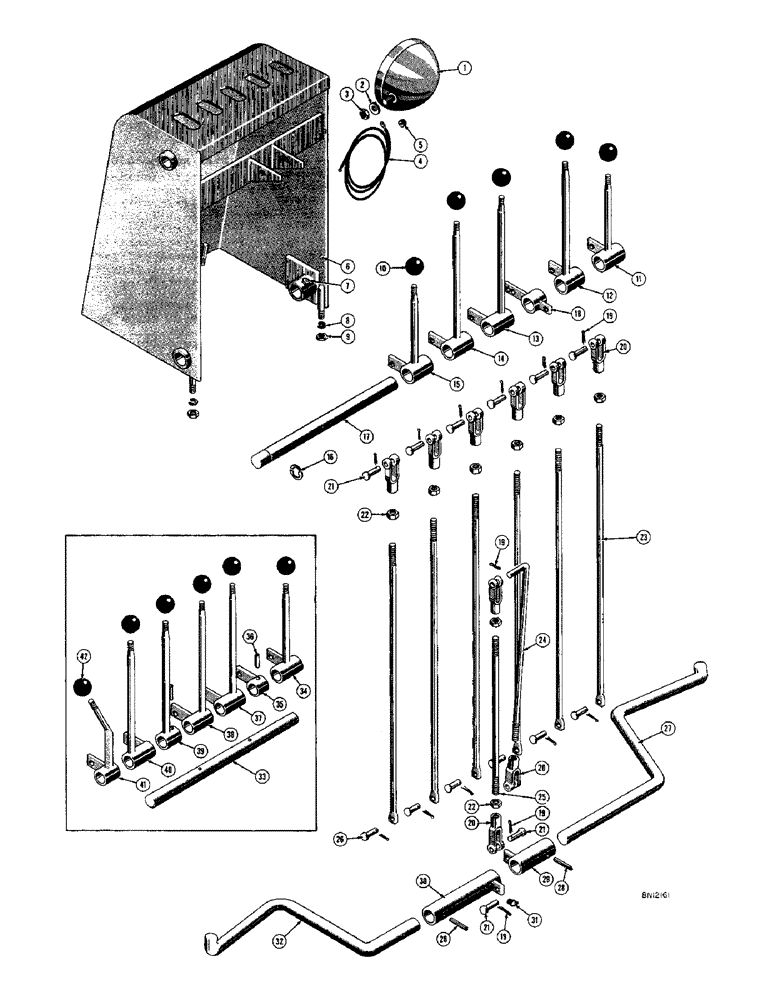

Запчасти Case 22 (06) - BACKHOE CONTROL LEVERS AND LINKAGE, BEFORE BACKHOE S/N 4065701

1

A20965

LAMP BASE

LIGHT - tail (12 volt), Includes: Ref. 2 and 3

1шт.

2

92-8

LOCK WASHER,1/2"

1шт.

3

25-108

NUT,1/2"-13, G5

- (1/2" - 13 NC)

1шт.

4

D28784

WIRE - extension, taillight

1шт.

5

49561

GROMMET,1/4" ID x 7/16" Groove Dia

- taillight wire

1шт.

6

D21711

SHIELD - control rods

1шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - straight grease, 1/4" - 28 NF

2шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

4шт.

10

70213

KNOB

- control lever

5шт.

11

D21755

LEVER - control, L.H. stabilizer

1шт.

12

D21756

LEVER - control, boom

1шт.

13

D21757

LEVER - control, dipper arm

1шт.

14

D21758

LEVER - control, bucket

1шт.

15

D21760

LEVER - control, R.H. stabilizer

1шт.

16

O9640AB

X

RING - retaining, "E"

1шт.

17

D21626

SHAFT - control lever

1шт.

18

D21754

PIVOT - swing control

1шт.

19

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

15шт.

20

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - control levers

9шт.

21

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Eye, 213-4 yoke 3/8" x 1.060"

8шт.

22

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

8шт.

23

D21763

ROD - control, Serial Range: (Levers-valve)

6шт.

On machines with crossed control rods for bucket and dipper controls, replacement rods must be formed from straight rods in the field. (See Instruction Sheet Burlington Form 9-70231)

1шт.

24

D21762

ROD

- control, swing (Rear)

1шт.

25

D21764

ROD - control, swing (Front)

1шт.

26

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Eye, lower end of control rods 5/16" x .940"

6шт.

27

D21726

PEDAL - swing control. L.H. (Right swing)

1шт.

28

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

2шт.

29

D21721

RETAINER - foot pedal, L.H.

1шт.

30

D21719

RETAINER - foot pedal, R.H.

1шт.

31

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - 45 degrees grease, 1/4" - 28 NF

1шт.

32

D21725

PEDAL - swing control, R.H. (Left swing)

1шт.

33

D27102

SHAFT - control lever, hand swing parts

1шт.

33

D27102

hand swing control parts

1шт.

34

D21755

LEVER - control, L.H. stabilizer, hand swing parts

1шт.

35

D27107

ARM - lever, boom control, hand swing parts

1шт.

36

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, , Hand swing control parts 1/4" x 1 3/8", Slotted

2шт.

37

D27453

LEVER - control, swing, hand, parts

1шт.

38

D21757

LEVER - control, bucket, hand swing, parts

1шт.

39

D27099

LEVER - control, boom, hand swing, parts

1шт.

40

D27100

LEVER - control, dipper, hand swing, parts

1шт.

41

D27101

LEVER - control, R.H. stabilizer, hand swing, parts

1шт.

42

70213

KNOB

- control lever, hand swing, parts

6шт.
