Запчасти Case 22 (40) - D21003 HYDRAULIC OIL FILTER, 60374 FLOW CONTROL VALVE

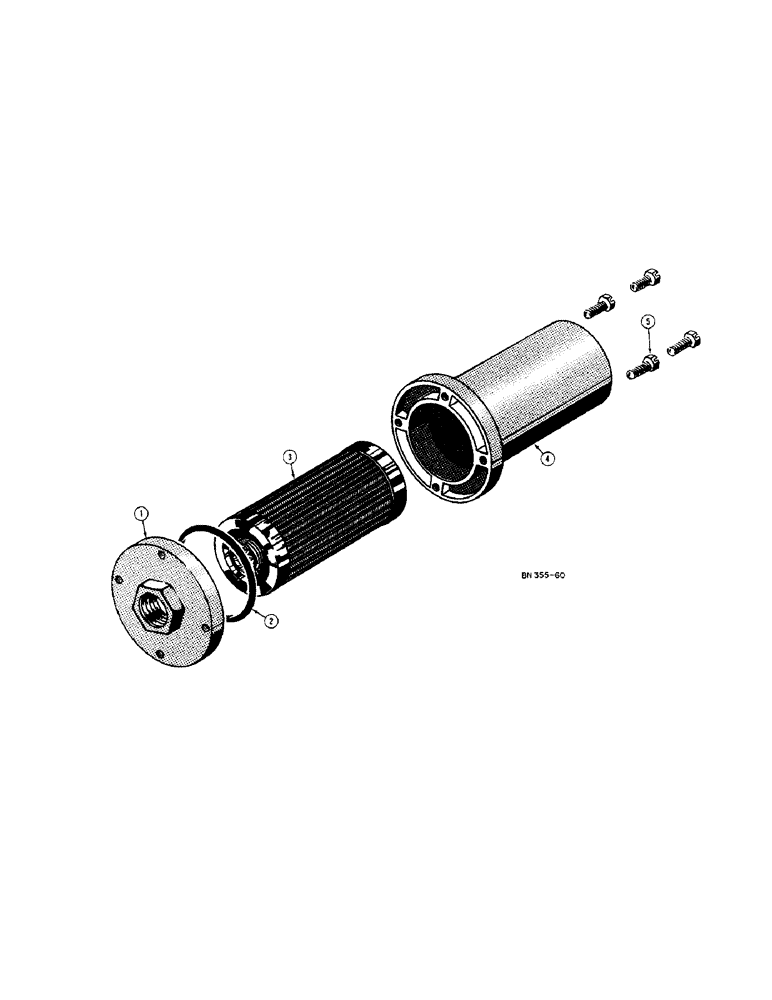

Схема запчастей Case 22 - (40) - D21003 HYDRAULIC OIL FILTER, 60374 FLOW CONTROL VALVE

Артикул

Название

Примечание

Количество

D21003

FILTER

- hydraulic oil, Includes: Ref. 1 - 5

1шт.

1

D21005

BASE

COVER - filter

1шт.

2

G46889

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

SEAL - "O" ring, cover (Use D21006)

1шт.

2

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

SEAL - "O" ring, cover

1шт.

3

D21008

X

CARTRIDGE - filter (Metal)

1шт.

4

D21004

HOUSING

- filter

1шт.

5

D21007

BOLT,M5 x .8 x 70mm, Cl 10.9

SCREW - machine, housing retaining

4шт.

Выбрано товаров: 7
