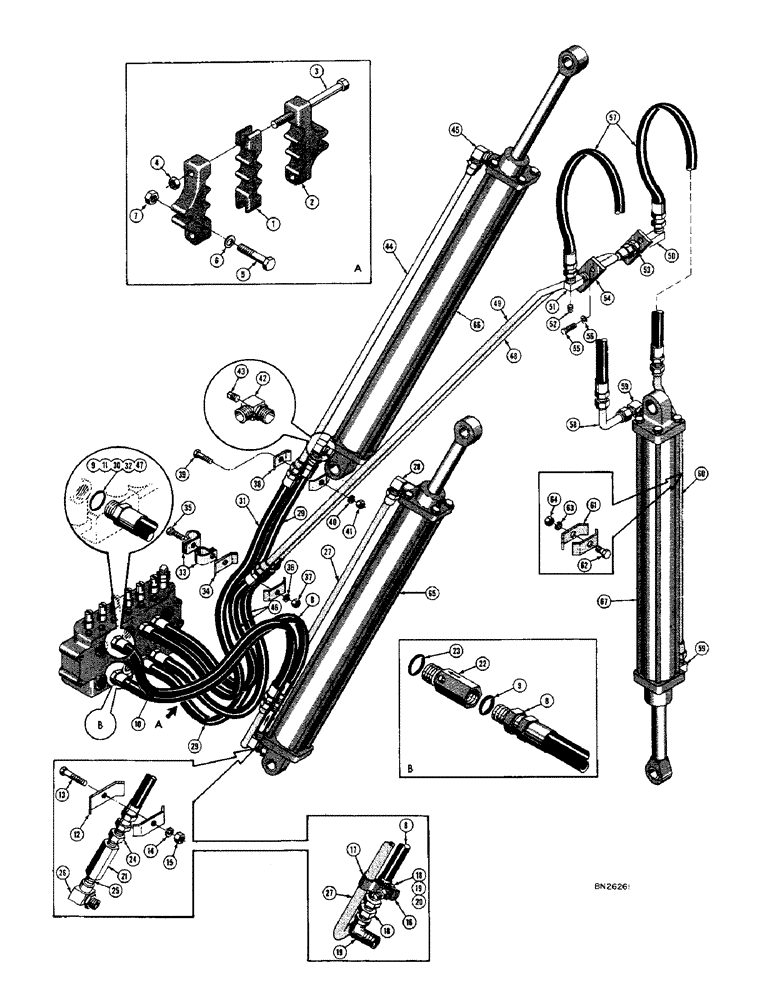

Запчасти Case 22 (32) - BOOM, CROWD AND BUCKET CYLINDER HYDRAULICS, FOR USE WITH CYLINDERS WITH TIE RODS ONLY

1

D26124

HOSE

CLAMP - hose, center section (In swing tower)

1шт.

2

D26125

CLAMP

- hose, end section (In swing tower)

2шт.

3

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

HHCS - 5/16" - 18 NC x 3-1/4"

2шт.

4

131-351

LOCK NUT,5/16"-18, GA

NUT - hex., lock (5/16" - 18 NC)

2шт.

5

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

6

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (3/8" I.D. x 7/8" O.D. x 5/64" thick)

2шт.

7

131-351

LOCK NUT,5/16"-18, GA

NUT - hex., lock (5/16" - 18 NC)

2шт.

8

D23036

HOSE - backhoe control valve to lower port of boom cylinder (1/2" I.D. x 7/8" O.D. x 47-1/2" long), Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D23036 hose

1шт.

10

D23038

HOSE - backhoe control valve to tube on boom cylinder (1/2" I.D. x 7/8" O.D. x 47-1/2" long), Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D23038 hose

1шт.

12

31665

COLLAR CLAMP

CLAMP - hose at bottom of boom cylinder when 60374 flow control valve is used (See R21385 and 49768)

2шт.

13

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

16

R21385

CLAMP

- hose, bottom of boom cylinder when D29295 flow control valve is used (See 31665)

1шт.

17

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

- tube, bottom of boom cylinder when D29295 flow control valve is used (See 31665), tube (R13944 mtg.), transmission hydraulic system

1шт.

18

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8" - 24 NF x 7/8"

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 16 NC)

1шт.

21

60374

VALVE

- flow control, located at cylinder (Early production) See Figure 40(1) for breakdown (For service 1 - D29295 flow control valve, 1 - R21395 clamp, 1 - 49768 clamp, 1 - 14-614 cap screw, 1 - 92-6 washer and 1 - 25-116 nut may be used)

1шт.

22

D29295

VALVE - flow control, located at valve (Late production) When replacing 60374 also order 1 - R21385 clamp, 1 - 49768 clamp, 1 - 14-614 cap screw, 1 - 92-6 washer and 1 - 25-116 nut, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D29295 valve

1шт.

24

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - 1/2" NPT x 5/8" JIC

1шт.

25

221-186

NIPPLE - pipe, 1/2" NPT

1шт.

26

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degrees street, 1/2" NPT

1шт.

27

D23046

TUBE - hose from control valve to upper port of boom cylinder

1шт.

28

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male, 1/2" NPT x 5/8" JIC (Upper port of boom cylinder)

1шт.

29

D23034

HOSE - lower port of control valve to service tee on crowd cylinder (1/2" I.D. x 7/8" O.D. x 58-3/4" long), Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D23034 hose

1шт.

31

D23042

HOSE - upper port of control valve to tube on crowd cylinder (1/2" I.D. x 7/8" O.D. x 58" long), Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D23042 hose

1шт.

33

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose, crowd

2шт.

34

31665

COLLAR CLAMP

CLAMP - hose to tubes on boom

2шт.

35

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

36

92-5

LOCK WASHER,5/16"

1шт.

37

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

38

31665

COLLAR CLAMP

CLAMP - hoses at bottom of crowd cylinder

2шт.

39

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

40

92-5

LOCK WASHER,5/16"

1шт.

41

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

42

33888

TEE - service, 1/2" NPT x 5/8" JIC x 1/8" NPT (Lower port of crowd cylinder)

1шт.

43

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, 33888 tee (1/8" NPT)

1шт.

44

D23050

TUBE - hose to upper port of crowd cylinder

1шт.

45

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male, 1/2" NPT x 5/8" JIC (Upper port of crowd cylinder)

1шт.

46

D23040

HOSE - backhoe control valve to tubes in boom (1/2" I.D. x 7/8" O.D. x 42-1/2" long), Includes: Ref. 47

2шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D23040 hose

1шт.

48

D23071

TUBE - in boom, R.H. (To cylinder upper port)

1шт.

49

D23072

TUBE - in boom, L.H. (To cylinder lower port)

1шт.

50

D23277

ELBOW - special, R.H. side of boom

1шт.

51

D28248

TEE - special service, L.H. side of boom

1шт.

52

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, 1/4" NPT (D28248 tee)

1шт.

53

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex., jam (7/8" - 14 NF)

2шт.

54

D23054

PLATE - spacer

2шт.

55

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8" - 24 NF x 7/8"

4шт.

56

92-6

LOCK WASHER,3/8"

4шт.

57

D23030

HOSE

- tubes on boom to bucket cylinder (1/2" I.D. x 7/8" O.D.x 36-1/2" long)

2шт.

58

D23048

TUBE - to upper port of bucket cylinder

1шт.

59

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male, 1/2" NPT x 5/8" JIC (Bucket cylinder ports)

2шт.

60

D23044

TUBE - hose to lower port of bucket cylinder

1шт.

61

31665

COLLAR CLAMP

CLAMP - D23044 and D23048 bucket cylinder tubes

2шт.

62

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2"

1шт.

63

92-5

LOCK WASHER,5/16"

1шт.

64

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

65

D21580

1шт.

CYLINDER - hydraulic boom (See Figure 46 for breakdown) When stock is exhausted order 1 - D28342 cylinder, 1 - 218-5062 connector and 1 - D24070 elbow if 60374 flow control valve is used or 218-5107 elbow if D29295 flow control valve is used (These parts are listed and illustrated on Figure 36)

1шт.

66

D21596

CYLINDER - hydraulic crowd (See Figure 50 for breakdown) When stock is exhausted order 1 - D28314 cylinder, 1 - D28350 tube, 1 - 218-5107 elbow, 1 - D27782 service tee and 1 - 211-12 plug (These parts are listed and illustrated on Figure 36)

1шт.

67

D21591

1шт.

CYLINDER - hydraulic bucket (See Figure 52 for breakdown) When stock is exhausted order 1 - D28331 cylinder, 1 - D28354 tube, 2 - 218-5107 elbows, 2 - D28352 brackets, 2 - 131-351 locknuts and 2 - 13-520 cap screws (These parts are listed and illustrated on Figure 36

1шт.
