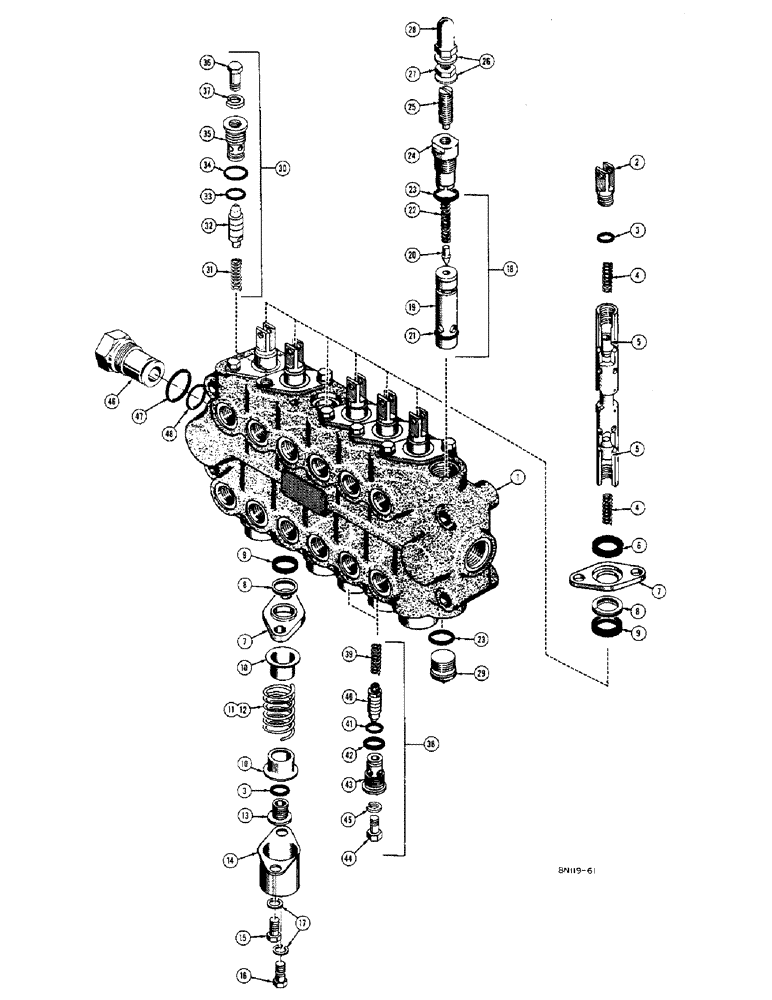

Запчасти Case 22 (26) - D27923 BACKHOE HYDRAULIC CONTROL VALVE

1

D27923

VALVE - control, hydraulic (Hydreco V33DDDDDD47), Includes: Ref. 2 - 48

1шт.

2

D24775

EYE - spool

6шт.

3

D24778

X

SEAL - "O" ring, spool and cap

12шт.

4

D24774

SPRING

- poppet

12шт.

5

D24785

VALVE

POPPET - spool

12шт.

6

D24773

SEAL

- wiper

6шт.

7

D24772

PLATE - retaining, upper and lower

12шт.

8

D24771

RING

- backup (If used)

12шт.

9

D24770

RING

- vee backup (Use D29898)

12шт.

D29898

RING

- vee backup

12шт.

10

D24777

COLLAR

RETAINER - spring

12шт.

11

D24776

VALVE SPRING

SPRING - spool return (All cylinders except swing spool)

5шт.

12

D26886

SPRING - spool return, swing cylinder

1шт.

13

D24780

PLUG

CAP - spool bottom

6шт.

14

D24779

COVER

- spool spring

6шт.

15

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

9шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

17

92-5

LOCK WASHER,5/16"

21шт.

18

D24760

VALVE - kit, main relief, Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

20

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve

1шт.

21

D25858

O-RING

SEAL - "O" ring, relief valve seat

1шт.

22

D24763

SPRING

- main relief valve

1шт.

23

D24764

SNAP RING

SEAL - "O" ring, main relief valve and plug

2шт.

24

D24765

CAP - main relief valve

1шт.

25

D24766

SCREW - adjusting, main relief valve

1шт.

26

D26763

WASHER

GASKET - jam nut

2шт.

27

D24767

X

NUT - jam, adjusting screw

1шт.

28

D24768

CAP - dust, adjusting screw

1шт.

29

D24769

PLUG - main relief valve bottom

1шт.

30

D24758

VALVE - secondary relief, boom cylinder, Includes: Ref. 31 - 37

1шт.

31

D25855

SPRING - relief valve

1шт.

32

D24759

CARTRIDGE - relief valve (Preset at factory - 1800 P.S.I.) Color code - blue

1шт.

33

D24755

X

SEAL - "O" ring, inner

1шт.

34

D24754

GASKET

SEAL - "O" ring, outer

1шт.

35

D25854

SEAT - relief valve

1шт.

36

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

37

92-5

LOCK WASHER,5/16"

1шт.

38

D25852

VALVE - secondary relief, bucket and crowd cylinders, Includes: Ref. 39 - 45

2шт.

39

D25855

SPRING - relief valve

1шт.

40

D25856

CARTRIDGE - relief valve (Preset at factory - 2500 P.S.I.) Color code - green

1шт.

41

D24755

X

SEAL - "O" ring, inner

1шт.

42

D24754

GASKET

SEAL - "O" ring, outer

1шт.

43

D25854

SEAT - relief valve

1шт.

44

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

45

92-5

LOCK WASHER,5/16"

1шт.

46

D28722

PLUG - power beyond

1шт.

47

D28731

SEAL - "O" ring, plug (Outer)

1шт.

48

D28732

SEAL - "O" ring, plug (Inner)

1шт.
