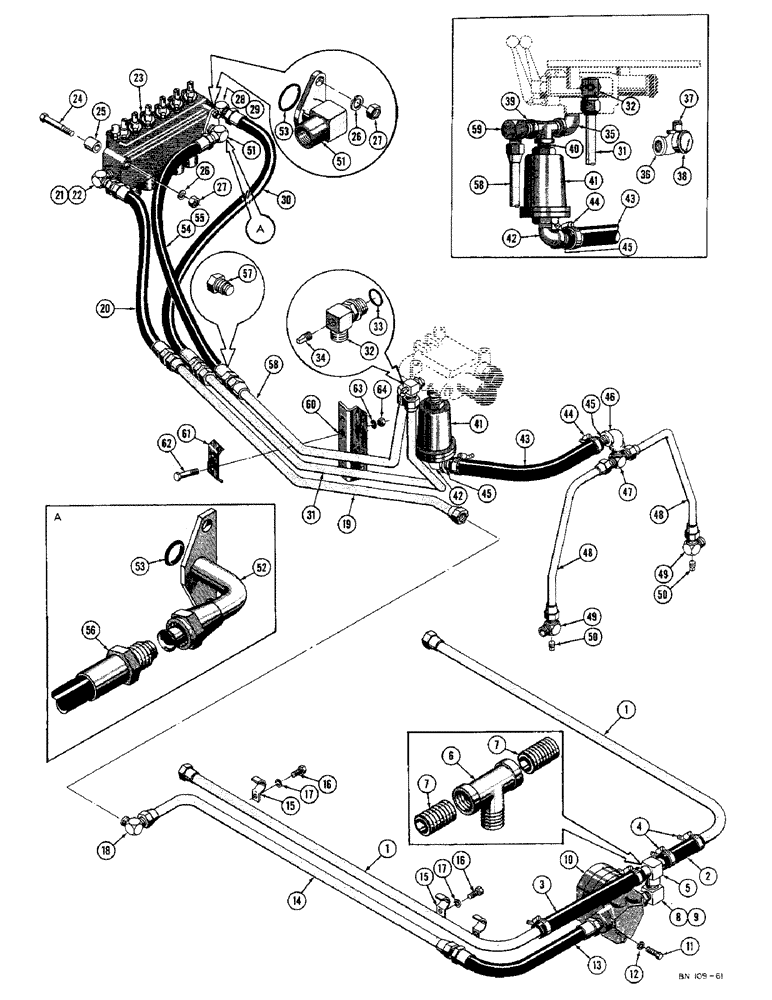

Запчасти Case 22 (20) - BASIC BACKHOE HYDRAULICS

1

D27884

TUBE - reservoir to pump, rear section (R.H. and L.H.)

2шт.

2

D27933

HOSE - reservoir to pump, front section (L.H.) 1" I.D. x 1-1/2" O.D. x 5-1/4" long

1шт.

3

D23580

HOSE - reservoir to pump, front section (R.H.) 1" I.D. x 1-1/2" O.D. x 15-1/2" long (Early production) Use D25446

1шт.

D25446

LARGE HOSE

HOSE - reservoir to pump, front section (R.H.) 1" I.D. x 1-1/2" O.D. x 13" long (Late production)

1шт.

4

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - D27933, D23580 and D25446 hoses

4шт.

5

D27940

TEE - special (Early production) When stock is exhausted use 1 - 221-425 tee and 2 - 221-215 nipples

1шт.

6

221-425

FITTING,3/4" NPT

TEE - 3/4" pipe (Late production)

1шт.

7

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - 3/4" NPT x 2" long

2шт.

8

D24549

ELBOW - 90 degrees special, Includes: Ref. 9

1шт.

9

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D24549 elbow

1шт.

10

D27925

STUD

PUMP - hydraulic, 16 G.P.M. (See Figure 24 for breakdown)

1шт.

11

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

D27939

HOSE - pump to Backhoe, front section (3/4" I.D. x 1-5/32" O.D. x 15" long)

1шт.

14

D27880

TUBE

- pump to Backhoe, center section

1шт.

15

49782

CLAMP - high pressure and suction tubes

4шт.

16

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

17

92-5

LOCK WASHER,5/16"

4шт.

18

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degrees male, 1" JIC x 1" JIC

1шт.

19

D27882

TUBE - pump to Backhoe, rear section

1шт.

20

D27935

HOSE - tube to backhoe control valve (3/4" I.D. x 1-5/32" O.D. x 15" long)

1шт.

21

D25098

ELBOW - 90 degrees adjustable, 1" JIC x 7/8" JIC, Includes: Ref. 22

1шт.

22

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D25098 elbow

1шт.

23

D27923

VALVE - control, backhoe (See Figure 26 for breakdown)

1шт.

24

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

Backhoe valve mounting Hex, 1/2"-13 x 5 1/2", G5

4шт.

25

D23629

SPACER - valve mounting

4шт.

26

92-8

LOCK WASHER,1/2"

4шт.

27

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

28

D25353

ELBOW - 90 degrees adjustable, 3/4" NPT x 7/8" JIC, Includes: Ref. 29

1шт.

29

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D25353 elbow

1шт.

30

D27937

HOSE - high pressure, rear section (3/4" I.D. x 1-5/32" O.D. x 32" long)

1шт.

31

D27987

TUBE - high pressure, front section

1шт.

32

D26360

TEE - adjustable service, 1" JIC x 7/8" JIC, Includes: Ref. 33

1шт.

33

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D26360 tee

1шт.

34

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4" NPT

1шт.

35

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street (Early production) Used without pressure gauge (For service 1 - D29654 elbow, 1 - 221-211 nipple and 1 - D29650 gauge may be used) 90º, 3/4"-14, NPT

1шт.

36

D29651

ELBOW - special, female (3/4" NPT) Used with gauge (Late production)

1шт.

37

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - 3/4" NPT, D29651 elbow to valve

1шт.

38

D29650

ELECTRICAL GAUGE

GAUGE - hydraulic oil pressure

1шт.

39

221-694

TEE - pipe, 3/4" NPT

1шт.

40

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - 3/4" NPT, tee to filter

1шт.

41

D21003

FILTER

- hydraulic oil (See Figure 40 for breakdown)

1шт.

42

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.

43

D23580

HOSE - filter to equalizer tubes (1" I.D. x 1-1/2" O.D. x 15-1/2" long)

1шт.

44

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - D23580 hose

2шт.

45

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - pipe, 3/4" NPT x 2" long

2шт.

46

221-378

ELBOW,90 Degree, 3/4" NPT

- 90 degrees female, 3/4" NPT

1шт.

47

218-556

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Br

- equalizer tube (3/4" JIC x 3/4" NPT)

1шт.

48

D25605

TUBE

- equalizer

2шт.

49

D28485

ELBOW UNION

ELBOW - 90 degrees male (3/4" JIC x 3/4" NPT)

2шт.

50

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" NPT

2шт.

51

D27855

ADAPTER - backhoe valve to filter (Used before backhoe serial no. 4060178) Use 1 - D29033 tube and 1 - D29036 hose

1шт.

52

D29033

TUBE - adapter (Backhoe serial no. 4060178 and after) When replacing D27855 adapter also order 1 - D29036 hose

1шт.

53

O8380AB

X

SEAL - "O" ring, D27855 adapter and D29033 adpater tube

1шт.

54

D27921

HOSE - high pressure carry-over (3/4" I.D. x 1-1/4" O.D. x 28" long) Use D29006

1шт.

55

D29006

HOSE - high pressure carry-over (3/4" I.D. x 1-1/4" O.D. x 24" long) Used with D27855 adapter

1шт.

56

D29036

HOSE - high pressure carry-over (3/4" I.D. x 1-1/4" O.D. x 24" long) Use with D29033 tube

1шт.

57

218-779

PLUG,1 5/16"-12, 37 Degree

D27919 tube, high pressure carry-over (When Backhoe is removed) In tool box 1 5/16"-12, 37º

1шт.

58

D27919

TUBE - high pressure carry-over to loader valve

1шт.

59

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degrees male, 1" JIC x 3/4" NPT

1шт.

60

D27943

BRACKET - mounting tubes leading to backhoe control valve

1шт.

61

D27944

CLAMP - mounting tubes leading to backhoe control valve

1шт.

62

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

63

92-5

LOCK WASHER,5/16"

2шт.

64

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.
