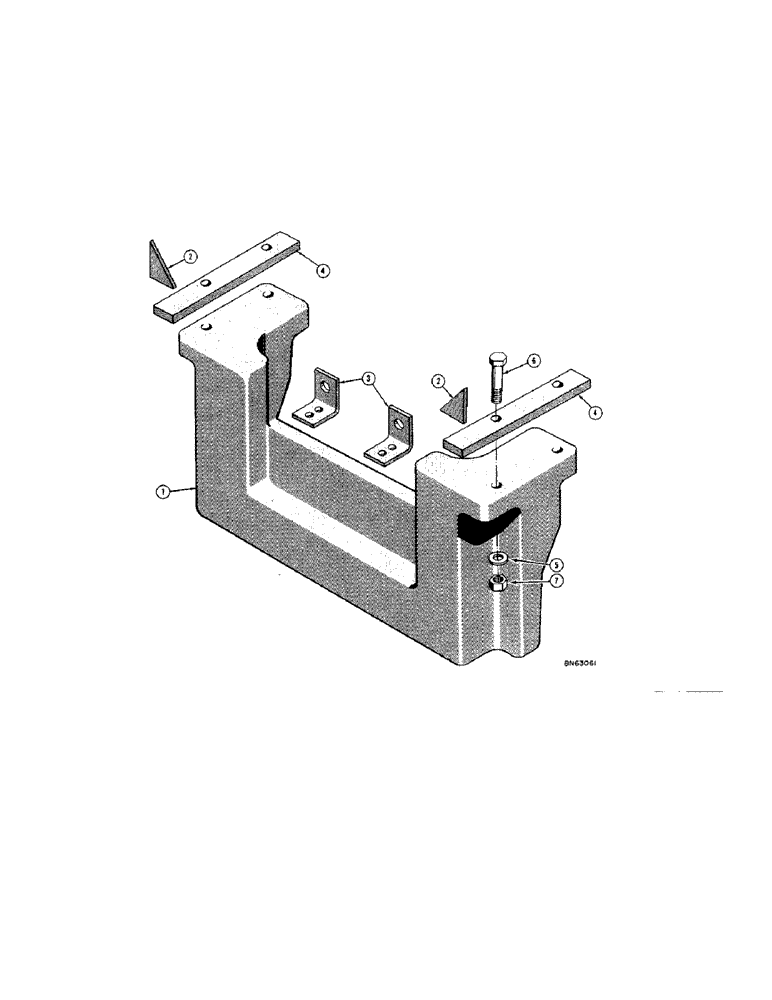

Запчасти Case 22 (18) - FRONT COUNTERWEIGHT

D11589

KIT - front counterweight (Complete kit for field installation), Includes: Ref. 1 - 7

1шт.

1

D26891

COUNTERWEIGHT - front

1шт.

2

D29144

BOSS

GUSSET - reinforcement

2шт.

3

D28183

BRACKET - mounting, pump guard

2шт.

4

D29143

PLATE - mounting

2шт.

5

D26752

WASHER

- lower, special

4шт.

6

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

4шт.

7

131-354

LOCK NUT,1/2"-13, GA

NUT - lock, hex. (1/2" - 13 NC)

4шт.
