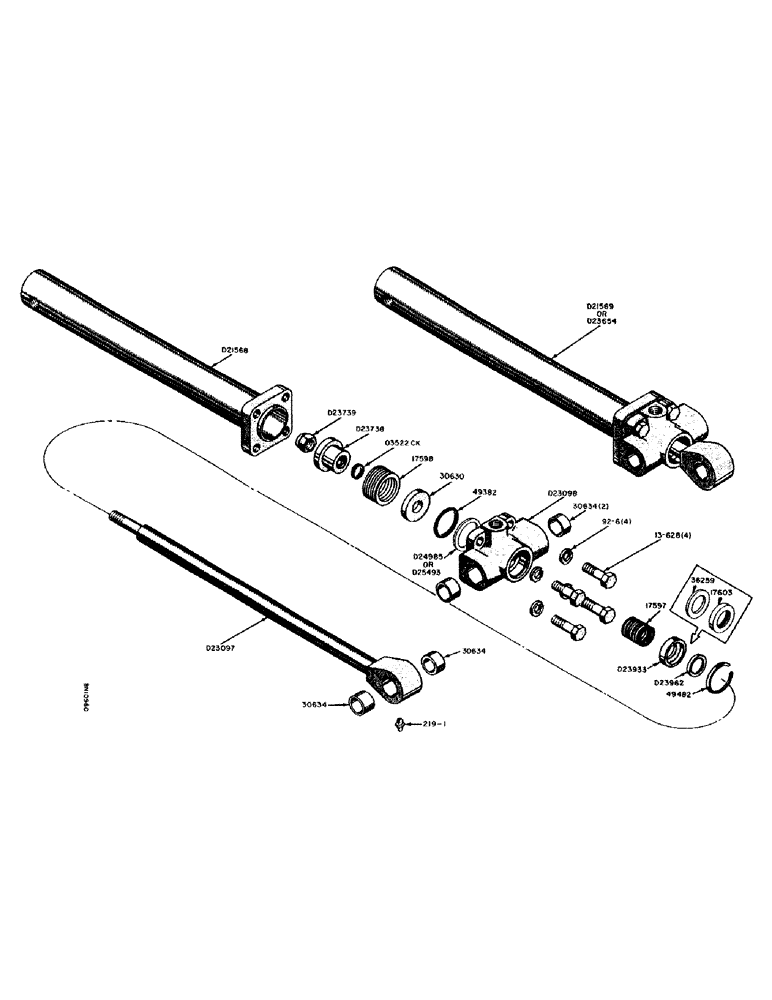

Запчасти Case 21 (34) - D21569 AND D23654 HYDRAULICS SWING CYLINDERS

O3522CK

X

"O" RING - seal, D23738 piston

1шт.

Part of service kit hydraulic cylinder P/N D30135

1шт.

17597

PACKING

- rod, piston

1шт.

Part of service kit hydraulic cylinder P/N D30135

1шт.

17598

PACKING

- piston

1шт.

Part of service kit hydraulic cylinder P/N D30135

1шт.

17603

WIPER SEAL

- wiper, piston rod (Use D23933 and D23962)

1шт.

30630

CARTRIDGE

WASHER - packing, piston

1шт.

30631

X

PISTON - cylinder (Without "O" ring) Use D23738, D23739, and O3522CK (Not shown)

1шт.

3/4" - 16 NF castle nut (25-2312)

1шт.

3/16" x 5/8" cotter pin (132-51)

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end and piston rod yoke

4шт.

36259

WASHER

- 17603 seal (Use D23933 and D23962)

1шт.

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

"O" RING - seal, cylinder tube

1шт.

Part of service kit hydraulic cylinder P/N D30135

1шт.

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

Part of service kit hydraulic cylinder P/N D30135

1шт.

D21527

CAP - end, cylinder (Use D23098)

1шт.

D21565

ROD - piston (Use D23097) 1-1/4" dia.

1шт.

D21568

TUBE - cylinder (Includes cylinder end and collar)

1шт.

D21569

CYLINDER - swing, hydraulic (R.H.) complete (2-1/2" dia. x 15-11/16" stroke)

1шт.

D23097

ROD - piston (Includes 2 - 30634 bushings) 1-1/4" dia.

1шт.

1/8" NPT straight grease fitting (219-1)

1шт.

D23098

CAP - end, cylinder (Includes 2 - 30634 bushings)

1шт.

Part of service kit hydraulic cylinder P/N D30135

1шт.

3/8" - 16 NC x 3/4" hex. head cap screw (13-628)

4шт.

3/8" lockwasher (92-6)

4шт.

D23654

CYLINDER - swing, hydraulic (L.H.) complete (2-1/2" dia. x 15-11/16" stroke)

1шт.

D23738

BLOCK

PISTON - cylinder (Order 1 - O3522CK "O" ring and 1 - D23739 nut when replacing 30631 piston that does not utilize "O" ring)

1шт.

D23739

LOCK NUT

NUT - lock, D23738 piston only (3/4" - 16 NF)

1шт.

D23933

GLAND

- wiper seal

1шт.

Part of service kit hydraulic cylinder P/N D30135

1шт.

D23962

SEAL

- wiper, piston rod

1шт.

Part of service kit hydraulic cylinder P/N D30135

1шт.

D24985

RING

- leather backup (Used only with cylinder cap that has .210" wide "O" ring groove) See D25493

1шт.

Part of service kit hydraulic cylinder P/N D30135

1шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder cap that has .185" wide "O" ring groove) See D24985

1шт.

Part of service kit hydraulic cylinder P/N D30135

1шт.

D30135

PACKAGE, REPAIR

KIT - service, hydraulic cylinder, Includes P/N's 03522CK, 17597, 17598, 49382, 49482, D23933, D23962, D24985, D25493333

1шт.
