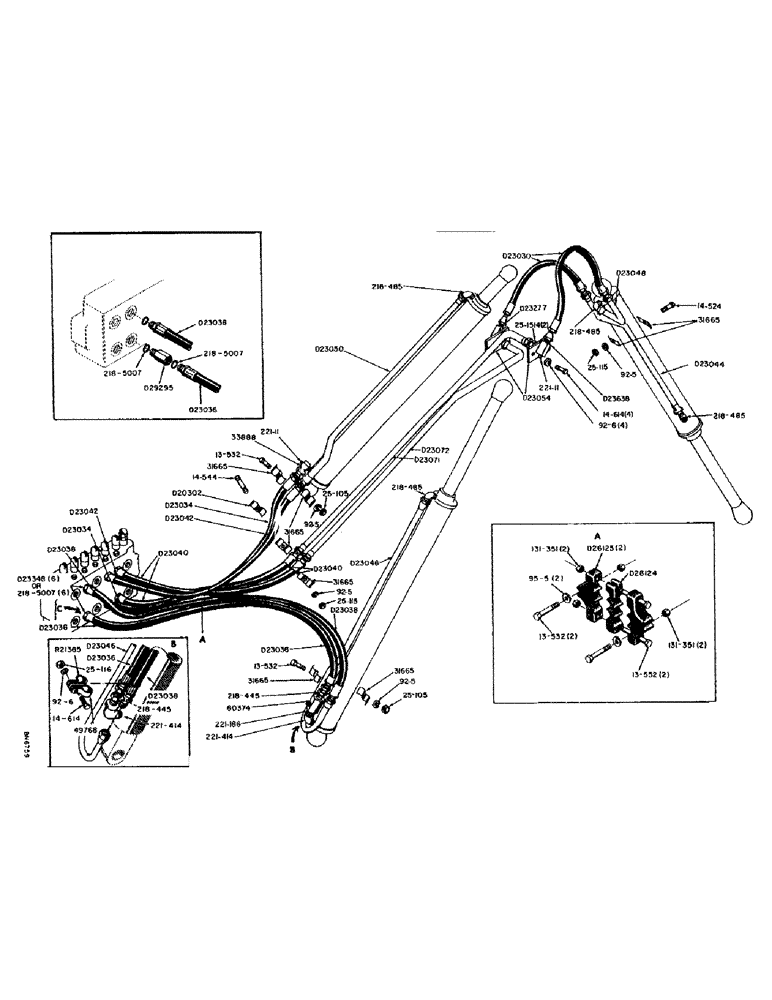

Запчасти Case 21 (26) - BOOM, CROWD AND BUCKET CYLINDER HYDRAULICS, BOOM CYLINDER HYDRAULICS

D23222

GROMMET - hose (Use 1 - D26124 and 2 - D26125) See Figure 04 for illustration

1шт.

D26124

HOSE

CLAMP - hose, center section (Tower)

1шт.

D26125

CLAMP

- hose, end section (Tower)

2шт.

5/16" - 18 NC x 2" hex. head cap screw (13-532)

2шт.

5/16" standard wrot washer (95-5)

2шт.

5/16" - 18 NC x 3-1/4" hex. head cap screw (13-552)

2шт.

5/16" - 18 NC hex. locknut (131-351)

4шт.

31665

COLLAR CLAMP

CLAMP - hoses, bottom of boom cylinder, boom, hydraulics

2шт.

5/16" - 18 NC x 2" hex. head cap screw (13-532), boom cylinder hydraulics

1шт.

5/16" lockwasher (92-5), boom cylinder hydraulics

1шт.

5/16" - 18 NC hex. nut (25-105), boom cylinder hydraulics

1шт.

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

- D23046 tube, when D29295 check valve is used, boom cylinder hydraulics, Harness to chassis

1шт.

60374

VALVE

- flow control (When stock is exhausted use D29295), boom cylinder hydraulics

1шт.

1/2" NPT street elbow, 90 degrees (Used with cylinders with tie rods - see D24070) (221-414), boom, hydraulics

1шт.

1/2" NPT pipe nipple (221-186), boom cylinder hydraulics

1шт.

1/2" NPT x 5/8" JIC connector (218-445), boom cylinder hydraulics

1шт.

D23036

HOSE - control valve to flow control valve (1/2" I.D. x 7/8" O.D. x 47-1/2" long), boom cylinder hydraulics

1шт.

"O"RING SEAL, D23036 hose (218-5007), boom cylinder hydraulics

1шт.

D23038

HOSE - control valve to tube (1/2" I.D. x 7/8" O.D. x 47-1/4" long), boom cylinder hydraulics

1шт.

"O" ring seal, D23038 HOSE (218-5007), boom cylinder hydraulics

1шт.

D23046

TUBE - boom cylinder upper port, hydraulics

1шт.

1/2" NPT x 5/8" JIC male elbow, 90 degrees (Used with cylinders with tie rods - see 218-5062) (218-485), boom hydraulics

1шт.

5/8" JIC x 5/8" JIC straight connector (Used with cylinders without tie rods - see 218-485) Not shown (218-5062), boom, hydraulics

1шт.

"O" RING SEAL, 218-5062 connector (Not shown) (218-5007), boom cylinder hydraulics

1шт.

D23348

X

SEAL - "O" ring, D23036 and D23038 hoses (Use 218-5007), boom cylider hydraulics

2шт.

D24070

ELBOW

- 90 degrees, 5/8" JIC x 1/2" NPT (Used with cylinders without tie rods - see 218-445) Not shown, boom, hydraulics

1шт.

"O" RING SEAL, D24070 elbow (218-5007), boom cylinder hydraulics

1шт.

D29295

VALVE - check (When replacing 60374 also order 1 - 92-6 lockwasher, 1 - R21385 clamp, 1 - 49768 clamp, 1 - 25-116 nut, and 1 - 14-614 cap screw), boom cylinder hydraulics

1шт.

"O" RING SEAL, D29295 check valve (218-5007), boom cylinder hydraulics

1шт.

R21385

CLAMP

- D23036 hose, boom cylinder hydraulics

1шт.

3/8" - 24 NF x 7/8" hex. head cap screw (14-614), crowd cylinder hydraulics

1шт.

3/8" lockwasher (92-6), crowd cylinder hydraulics

1шт.

3/8" - 24 NF hex. nut (25-116), crowd cylinder hydraulics

1шт.

31665

COLLAR CLAMP

CLAMP - hoses, bottom of crowd cylinder, hydraulics

2шт.

5/16" - 18 NC x 2" hex. head cap screw (13-532), crowd cylinder hydraulics

1шт.

5/16" lockwasher (92-5), crowd cylinder hydraulics

1шт.

5/16" - 18 NC hex. nut (25-105), crowd cylinder hydraulics

1шт.

33888

TEE - service, pressure gauge (Used with cylinders with tie rods - See D27782), crowd, hydraulics

1шт.

1/8" NPT pipe plug (221-11), crowd cylinder hydraulics

1шт.

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hoses at boom, crowd cylinder hydraulics

2шт.

5/16" - 24 NF x 2-3/4" hex. head cap screw (14-544), crowd cylinder hydraulics

1шт.

D23034

HOSE - lower port of control valve to service tee (1/2" I.D. x 7/8" O.D. x 58-3/4" long), crowd cylinder hydraulics

1шт.

"O" RING SEAL, D23034 hose (218-5007), crowd cylinder hydraulics

1шт.

D23042

HOSE - upper port of control valve to tube on crowd cylinder (1/2" I.D. x 7/8" O.D. x 58" long), hydraulics

1шт.

"O" RING SEAL, D23034 hose (218-5007), crowd cylinder hydraulics

1шт.

D23050

TUBE - crowd cylinder (Used with cylinders with tie rods - see D28350), hydraulics

1шт.

1/2" NPT x 5/8" JIC male elbow, 90 degrees (Used with cylinders with tie rods - see 218-5017 under D28350) (218-485), crowd, hydraulics

1шт.

D27782

X

ELBOW - special (Includes "O" ring) Used with cylinders with tie rods - see 33888 (Not shown), crowd, hydraulics

1шт.

"O" RING SEAL, D27782 elbow (218-5007), crowd cylinder hydraulics

1шт.

1/4" NPT pipe plug, D27782 elbow (Not shown) (221-12), crowd cylinder hydraulics

1шт.

D28350

TUBE - crowd cylinder (Used with cylinders without tie rods - see D23050) Not shown, hydraulics

1шт.

5/8" JIC x 5/8" JIC male elbow, 90 degrees (Used with cylinders without tie rods - see 218-485 under D23050) Not shown (218-5107), crowd, hydraulics

1шт.

"O" RING SEAL, 218-5107 elbow (Not shown) (218-5007), crowd cylinder hydraulics

1шт.

31665

COLLAR CLAMP

CLAMP - hose to boom and tube to bucket cylinder, hydraulics

4шт.

5/16" - 24 NF x 1-1/2" hex. head cap screw (14-524), bucket cylinder hydraulics

1шт.

5/16" - 24 NF x 2-3/4" hex. head cap screw (14-544), bucket cylinder hydraulics

1шт.

5/16" lockwasher (92-5), bucket cylinder hydraulics

2шт.

5/16" - 24 NF hex. nut (25-115), bucket cylinder hydraulics

2шт.

D23030

HOSE

- boom tubes to bucket cylinder (1/2" I.D. x 7/8" O.D. x 36-1/2" long), hydraulics

2шт.

D23040

HOSE - control valve to tubes on boom (1/2" I.D. x 7/8" O.D. x 42-1/2" long), bucket cylinder hydraullics

2шт.

"O" RING SEAL, D23040 hoses (218-5007), bucket cylinder hydraulics

2шт.

D23044

TUBE - lower port of bucket cylinder (Used with cylinders with tie rods - see D28354), hydraulics

1шт.

1/2" NPT x 5/8" JIC male elbow, 90 degrees (Used with cylinders with tie rods - see 218-5107 under D28354) (218-485), bucket, hydraulics

1шт.

D23048

TUBE - upper port of bucket cylinder, hydraulics

1шт.

1/2" NPT x 5/8" JIC male elbow, 90 degrees (Used with cylinders with tie rods - see 218-5107 below) (218-485), bucket, hydraulics

1шт.

5/8" JIC x 5/8" JIC male elbow, 90 degrees (Used with cylinders without tie rods - see 218-485 above) Not shown (218-5107), bucket, hydraulics

1шт.

"O" RING SEAL, 218-5107 elbow (Not shown) (218-5007), bucket cylinder hydraulics

1шт.

D23054

PLATE - support, bucket cylinder hydraulics

2шт.

3/8" - 24 NF x 7/8" hex. head cap screw (14-614), bucket cylinder hydraulics

4шт.

3/8" lockwasher (92-6), bucket cylinder hydraulics

4шт.

D23071

TUBE - boom, R.H. (To upper port of cylinder), bucket, hydraulics

1шт.

D23072

TUBE - boom, L.H. (To lower port of cylinder), bucket, hydraulics

1шт.

D23277

ELBOW - special, 90 degrees (R.H.), bucket cylinder hydraulics

1шт.

7/8" - 14 NF hex. jam nut (25-1514), bucket cylinder hydraulics

1шт.

D23348

X

SEAL - "O" ring, D23040 hose (Use 218-5007) Not shown, bucket cylinder hydraulics

1шт.

D23638

ELBOW - special, 90 degrees (L.H.) service tee, bucket cylinder hydraulics

1шт.

7/8" - 14 NF hex. jam nut (25-1514), bucket cylinder hydraulics

1шт.

1/8" NPT pipe plug (221-11), bucket cylinder hydraulics

1шт.

D28352

CLAMP - tube to cylinder (Used with cylinders without tie rods) Not shown, bucket, hydraulics

1шт.

5/16" - 18 NC x 1-1/4" hex. head cap screw (Not shown) (13-520), bucket cylinder hydraulics

2шт.

5/16" - 18 NC locknut (Not shown) (131-351), bucket cylinder hydraulics

2шт.

D28354

TUBE - lower bucket cylinder port (Used with cylinder without tie rods - see D23044) Not shown, hydraulics

1шт.

5/8" JIC x 5/8" JIC male elbow, 90 degrees (Used with cylinders with tie rods - see 218-485 under D23044) Not shown (218-5107), bucket, hydraulics

1шт.

"O" RING SEAL, 218-5107 elbow (Not shown) (218-5007), bucket cylinder hydraulics

1шт.
