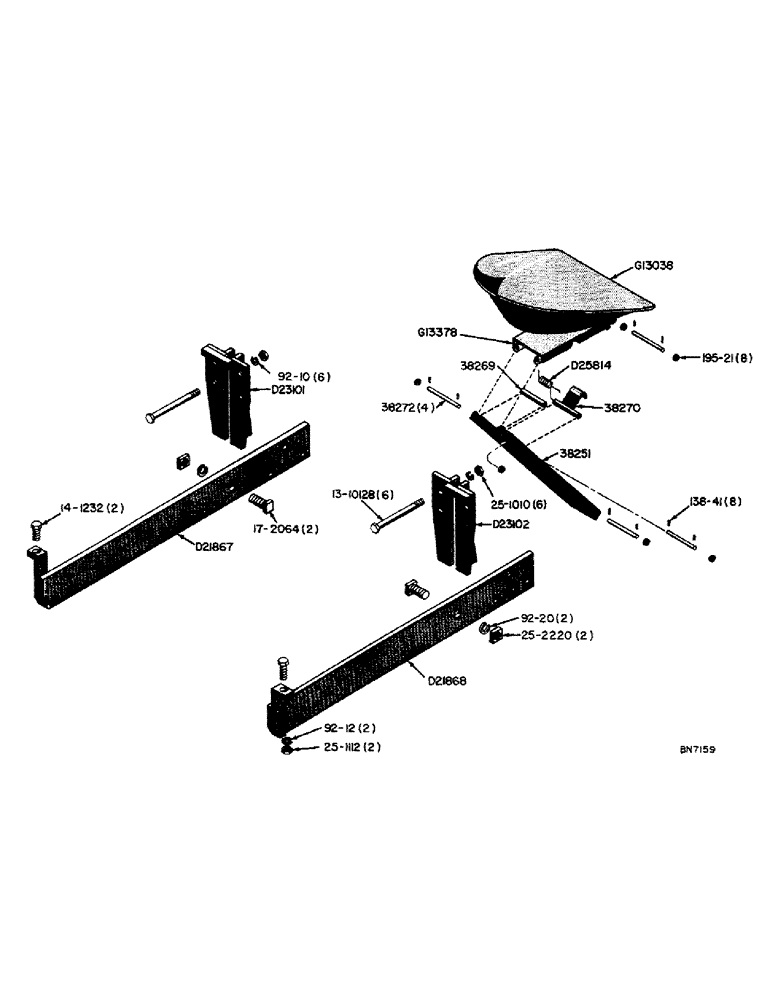

Запчасти Case 21 (21) - TRACTOR MODIFICATION PARTS

G13038

SEAT - includes guide and lock assembly

1шт.

G13378

CHANNEL - seat mounting

1шт.

38251

BRACE - seat

1шт.

38269

SPACER - seat brace

1шт.

38270

KNIFE

LOCK - seat

1шт.

38272

ROD - seat and brace

4шт.

11/32" I.D. x 11/16" O.D. plain washer (195-21)

8шт.

ROLL PIN - 38272 rod (3/32" x 3/4") (138-41)

8шт.

D21867

ARM - support, R.H.

1шт.

D21868

ARM - support, L.H.

1шт.

3/4" - 16 NF x 2" hex. head cap screw (14-1232)

2шт.

3/4" lockwasher (92-12)

2шт.

3/4" - 16 NF hex. nut (25-1112)

2шт.

D23101

BRACKET - support arm, R.H.

1шт.

D23102

BRACKET - support arm, L.H.

1шт.

5/8" - 11 NC x 8" hex. head cap screw (13-10128)

6шт.

5/8" lockwasher (92-10)

6шт.

5/8" - 11 NC hex. nut (25-1010)

6шт.

1-1/4" - 7 NC x 4" regular square head bolt (17-2064)

2шт.

1-1/4" - 7 NC square nut (25-2220)

2шт.

1-1/4" lockwasher (92-20)

2шт.

D25814

SPRING - seat lock

1шт.
