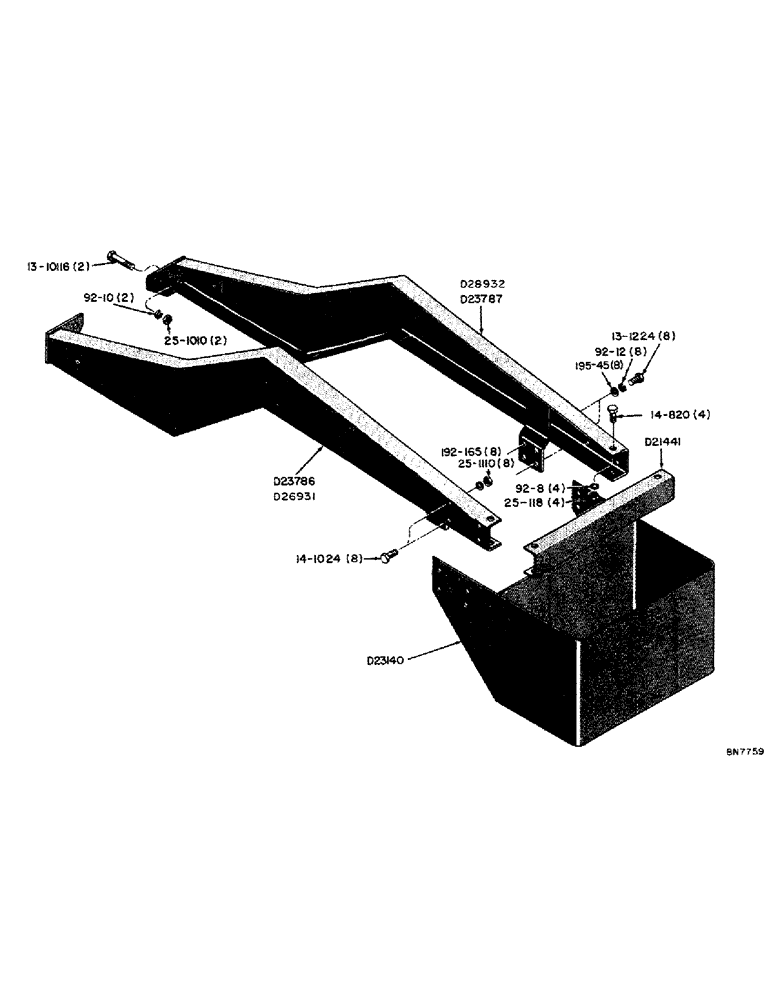

Запчасти Case 21 (67) - 1000 LB. FRONT WEIGHT BOX (TRACTOR WITHOUT LOADER)

D21441

BUMPER - front

1шт.

1/2" - 20 NF x 1-1/4" hex. head cap screw (14-820)

4шт.

1/2" lockwasher (92-8)

4шт.

1/2" - 20 NF hex. nut (25-118)

4шт.

D23140

BOX - weight (1000 lb. capacity)

1шт.

5/8" - 18 NF x 1-1/2" hex. head cap screw (14-1024)

8шт.

5/8" heavy lockwasher (192-165)

8шт.

5/8" - 18 NF hex. nut (25-1110)

8шт.

D23786

SUPPORT - weight box and backhoe, R.H. (Gas model only - see D26931)

1шт.

D23787

SUPPORT - weight box and backhoe, L.H. (Gas model only - see D26932)

1шт.

D26931

SUPPORT - weight box and backhoe, R.H. (Diesel model only - see D23786)

1шт.

D26932

SUPPORT - weight box and backhoe, L.H. (Diesel model only - see D23787)

1шт.

5/8" - 11 NC x 7-1/4" hex. head cap screw (13-10116)

2шт.

5/8" lockwasher (92-10)

2шт.

5/8" - 11 NC hex. nut (25-1010)

2шт.

3/4" - 10 NC x 1-1/2" hex. head cap screw (13-1224)

8шт.

3/4" lockwasher (92-12)

8шт.

13/16" I.D. x 1-1/2" O.D. flat washer (195-45)

8шт.
