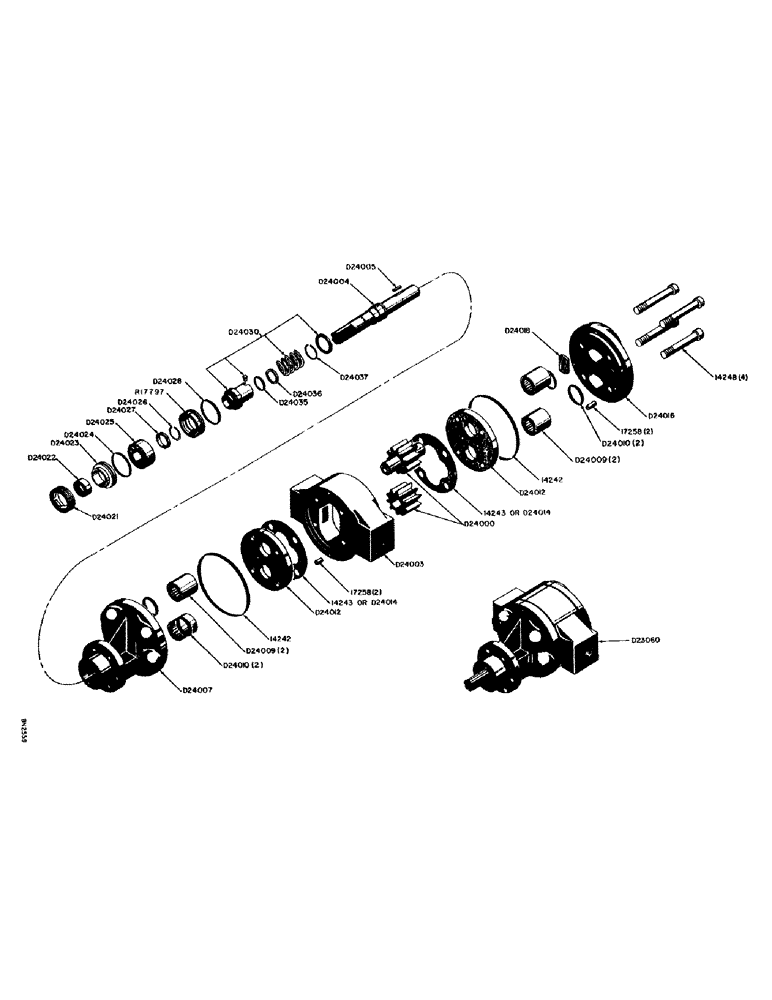

Запчасти Case 21 (60) - D23060 HYDRAULIC PUMP (17 G. P. M. - HYDRECO 2110-A2-A13)

NLS

NO LONGER SERVICED

"O" RING - seal, covers and gear plate

2шт.

NLS

NO LONGER SERVICED

SHIM - gear and wear plates (.001" thick) See D24014

1шт.

14248

SCREW - cap, special

4шт.

17258

AXLE PIN

PIN - dowel, covers to gear plate

4шт.

D23060

PUMP - hydraulic, backhoe (Hydreco #2110-A2-A13)

1шт.

D24000

GEARS - kit of, drive and driven

1шт.

D24003

PLATE - gear

1шт.

D24004

SHAFT - pump drive

1шт.

D24005

PIN

KEY - drive gear (Dowel pin type)

1шт.

D24007

COVER - front (Includes 2 - D24009 bearings)

1шт.

D24009

BEARING

- needle, front and rear covers (Torrington #AJ21164)

4шт.

D24010

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - seal, pocket

4шт.

D24012

PLATE - wear

2шт.

D24014

SHIM,.002" Thk

Gear and wear plates, See 14243 .002" Thk

1шт.

D24016

COVER

- rear (Includes 2 - D24009 bearings and 1 - D24018 washer)

1шт.

D24018

WASHER

- thrust

1шт.

D24021

RETAINER - wiper seal

1шт.

D24022

SEAL ASSY.

SEAL - wiper, oil

1шт.

D24023

SLEEVE CYLINDER

SLEEVE - wiper seal

1шт.

D24024

O-RING

"O" RING - seal, sleeve

1шт.

D24025

BEARING

S - ball, thrust (MRC #7205P)

1шт.

D24026

RING, SNAP

SNAP RING - bearing

1шт.

D24027

RETAINER

- snap ring

1шт.

D24028

O-RING

"O" RING - seal, seat

1шт.

D24029

SEAL

SEAT - "O" ring (Includes 1 - D24028 "O" ring) Use R17797

1шт.

D24030

SEAL

ASSEMBLY - includes sleeve, pin, spring, and washer

1шт.

D24035

X

"O" RING - sleeve seal

1шт.

D24036

WASHER

RING - backup, sleeve

1шт.

D24037

SNAP RING - sleeve

1шт.

R17797

X

SEAT - "O" ring

1шт.
